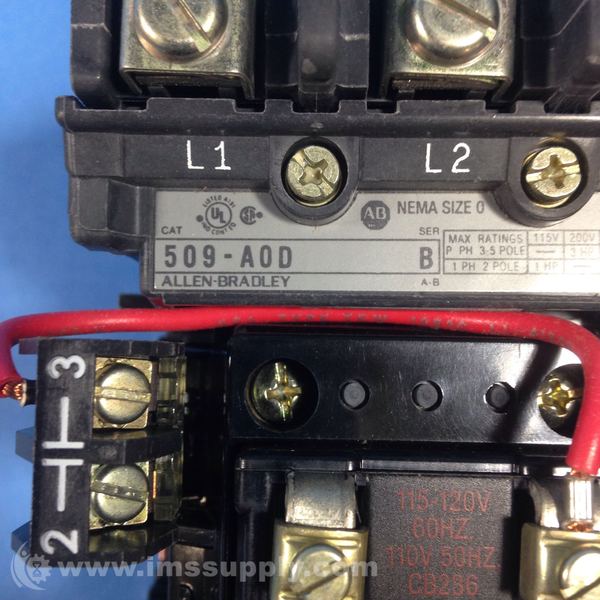

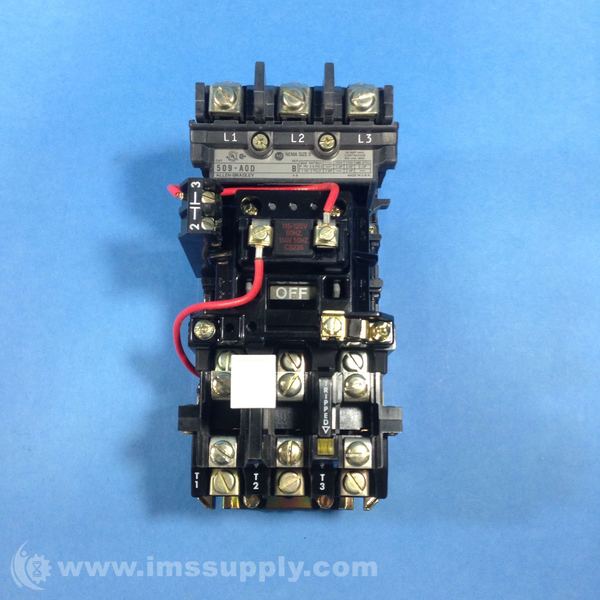

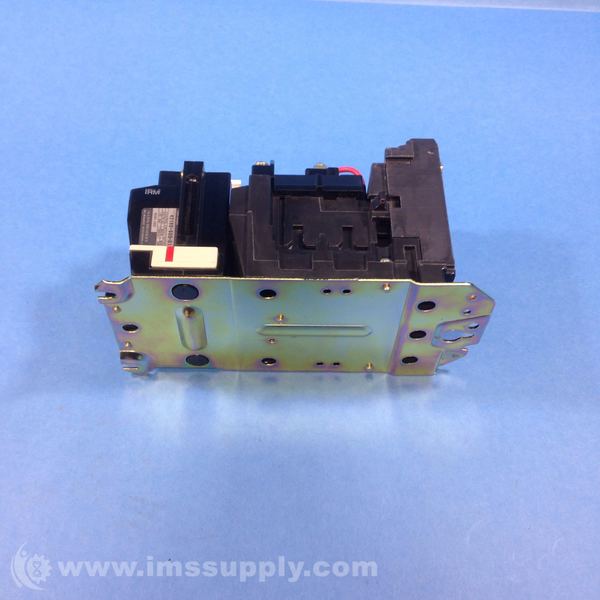

ALLEN BRADLEY 509-A0D NEMA SIZE 0 STARTER
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 509-A0D
IMS Product Code: 1738900
Variation: Unspecified
Unspecified
Series: B
Packaging: Sold Individually
Description:
Allen Bradley 509-A0D Nema Size 0 Starter
NEMA Size 0 Non-Reversing Starter, 18A, 600VAC max, 120V AC Coil, Eutectic Alloy Overload Relay
Specifications
- Continuous Current: 18 A
- Service Limit Current Rating: 21 A
- Circuit Closing Inrush Current Peak: 140 A
- Heat Dissipation: 5.9 W
- Coil Operating Limits: 85...110%
- Operating Volt Amperes Burden: Sealed: 29VA, 60 Hz coils
- Hp Rating: 5 Hp @ 575V load voltage, 3-phase (non-plugging and non-jogging duty)
- Transformer Primary Switching kVA Rating: 5.2 kVA @ 575V load voltage, 3-phase (inrush current =20 times continuous current)
- Temperature Compensated Overload Protection: True
- Coordination Class: Class 2
- Type of Electrical Connection: Screw connection
- Mechanical Life Operations: 1.0E7
- Average Operating Time, Pick-up: 21 ms
- Average Operating Time, Drop-out: 16 ms
- Required Torque on Power Terminal Wire Clamps: 20 in-lb
- Auxiliary Contact Material: Silver
- Type of Power Terminal: Saddle or wire clamps
- Wire Size: For power terminals: 14...10 AWG
- Enclosure: Open type
- Power Contact Material: Silver Alloy
- NEMA Size: Size 0
- Operating Temperature: 65 °C
- Operating Position: Vertical
- Altitude: 10000 ft before derating
- Overload Relay: Eutectic alloy overload relay
- Corrosion-resistance: All metal parts are treated for corrosion-resistance
Used (Special):

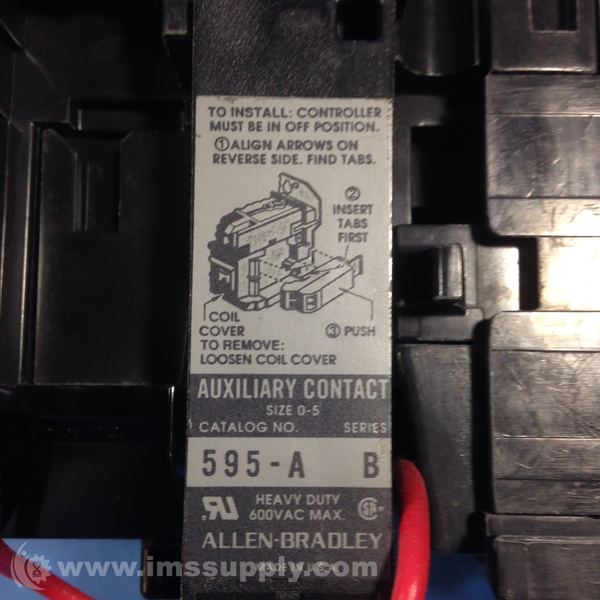

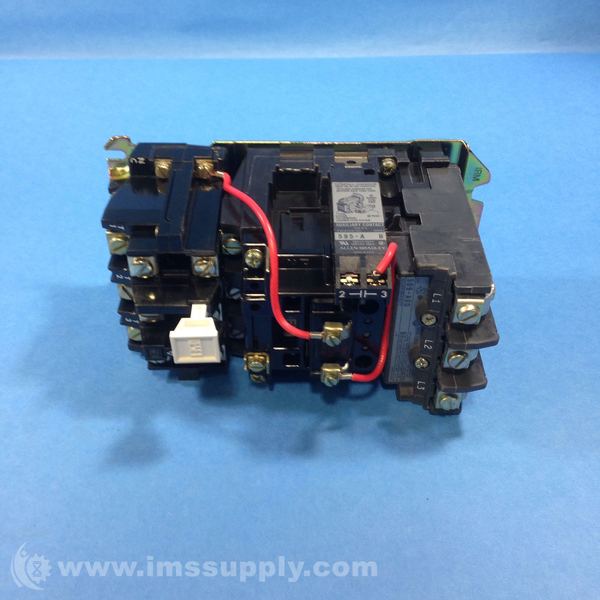

Has an Allen Bradley part no. 595-A and 42185-800-01 attached
