ALLEN BRADLEY 800F-X10 CONTACT BLOCK
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800F-X10
IMS Product Code: 1732997
Variation: Unspecified
Unspecified
Series: A
Packaging: Sold Individually
Sold Individually
Bag of 8
Description:

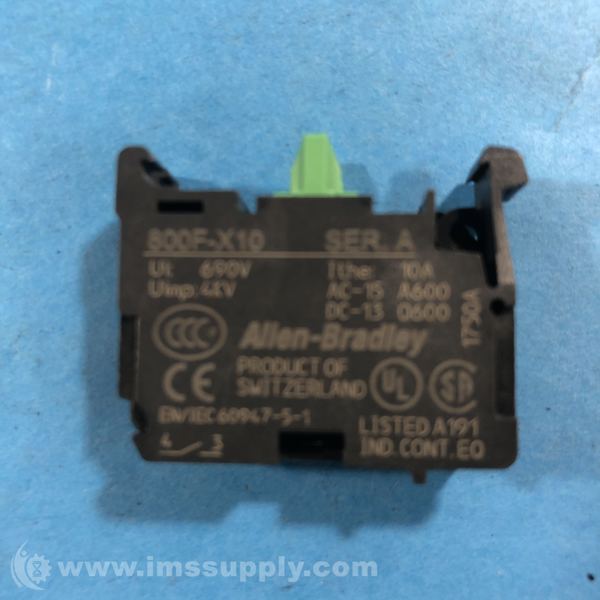

Allen Bradley 800F-X10 Contact Block
22mm Contact Block, 1 N.O. contact, Screw termination
Specifications
- Latch Style: No Latch
- Series: 800F PB
- Number of contacts as normally open contact: 1
- Contact block configuration: 1 NO
- Contact block type: Standard
- Contact block utilization category (AC): A600, AC 15 - screw termination
- Contact block utilization category (DC): Q600, DC-13 - screw termination
- Contact block operational voltage, max: 600V (A600, Q600) - screw termination
- Contact block thermal current rating: 10 A
- Termination style: Screw
- Latch material: Plastic / metal
- Contact block termination wire range: #18...12 AWG (0.75...2.5 mm)
- Vibration: 10 g
- Shock: 100 g
- Operator mounting hole dimension: 22.5 mm
- Contact block durability: 1.0E7
- Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m
- Operating temperature: -25 degrees C
- Storage temperature: -40 degrees C
- Humidity: =95% RH from 25...60 degrees C (77...140 degrees F)
- Certifications: UL,UR, CSA, CCC, CE
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used (Special):

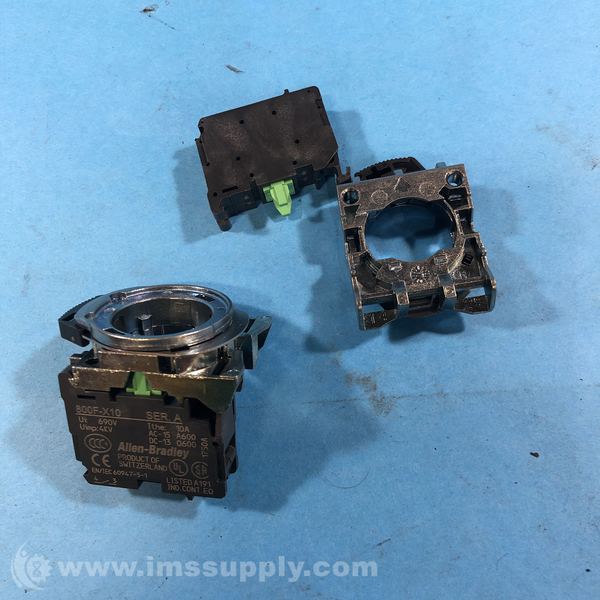

Enclosure and selector switch attached.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
