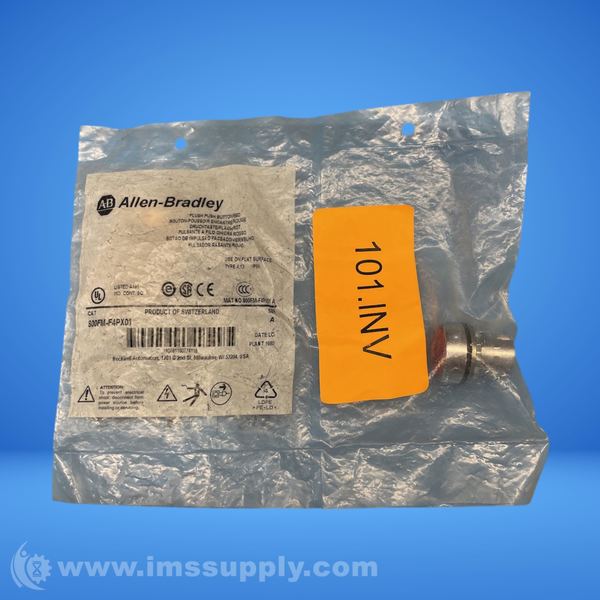

ALLEN BRADLEY 800FM-F4PX01 FLUSH PUSH BUTTON
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 800FM-F4PX01
IMS Product Code: 2128359
Packaging: Sold Individually
Description:
Allen Bradley 800FM-F4PX01 Flush Push Button
22mm Momentary Push Button, 1 NC contact, red flush pushbutton operator with plastic cap and metal enclosure compatibility: IP66, Type 4/13
Specifications
- Product Type: 22mm Momentary Push Button
- Suitable for illumination: False
- Operator cap/button shape: Round
- Contact block type: Standard
- Operator cap/button material: Plastic
- Contact block thermal current rating: 10 A
- Contact block utilization category (AC): A600, AC 15 - screw termination
- Contact block utilization category (DC): Q600, DC-13 - screw termination
- Contact block operational voltage, max: 600V (A600, Q600) - screw termination
- Operator cap type: Flush push-button
- Hole diameter: 22.5 mm
- Latch material: Plastic
- Operator mechanical design life (cycles, min.): 10000000
- Contact block durability: 10000000
- Contact block mounting style: Latch
- Operator cap text/symbol: Blank
- Operator function: 22 mm momentary push button
- Contact block termination tightening torque: 6 - 8 in-lb / 0.7 - 0.9 N-m
- Operator type: Push button
- Enclosure compatibility: IP66, Type 4/13 (Round metal operator)
- Contact block configuration: 1 NC
- Shock: 100 G
- Vibration: 10 G
- Contact block termination wire range: #18...12 AWG (0.75...2.5 mm˛)
- Operating temperature: -25 degrees C
- Humidity: <=95% RH from 25...60 degrees C (77...140 degrees F)
- Storage temperature: -40 degrees C
- Operator construction/material: Metal
- Termination style: Screw
- Operator cap color (lens): Red
- Certifications: UL,UR, CSA, CCC, CE
- Family / Style: 800F
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 5 minutes.
