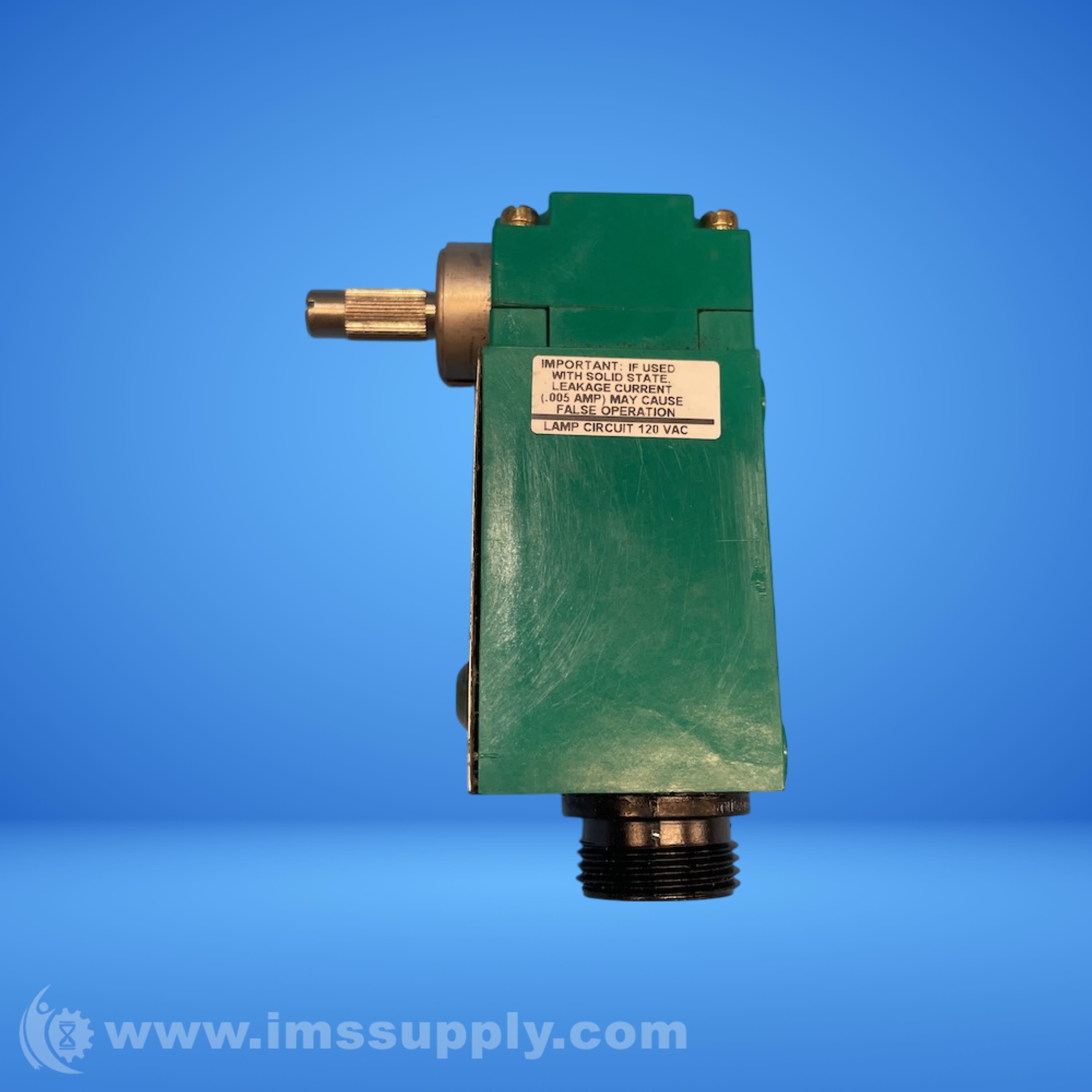

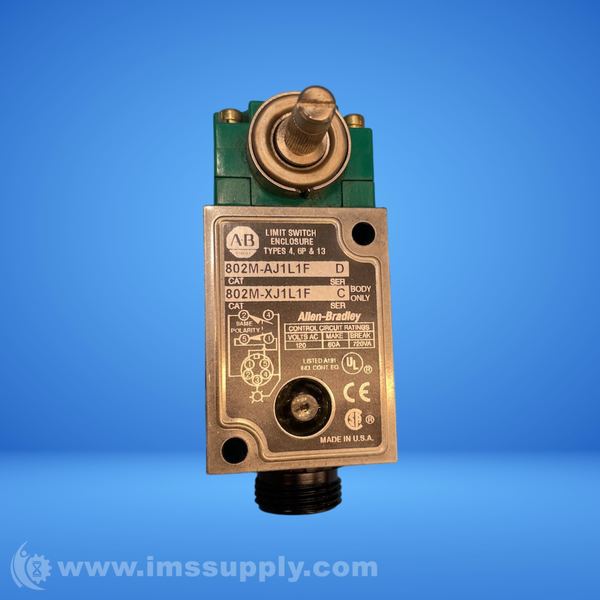

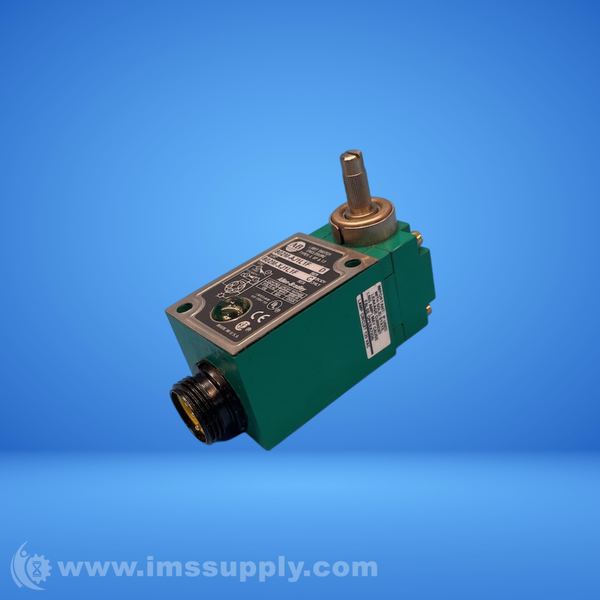

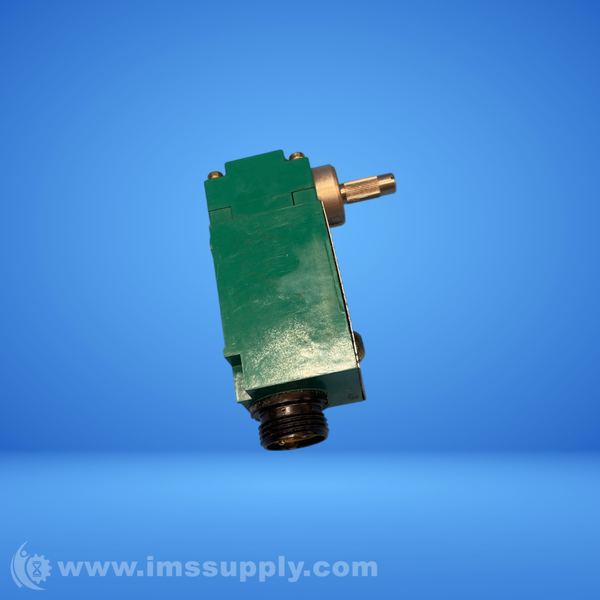

ALLEN BRADLEY 802M-AJ1L1F LIMIT SWITCH
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 802M-AJ1L1F
IMS Product Code: 2122547
Packaging: Sold Individually
Description:
Allen Bradley 802M-AJ1L1F Limit Switch
A robust and reliable electrical component designed for various industrial automation applications. This limit switch ensures precise position detection and control, making it an essential choice for enhancing operational efficiency and safety in manufacturing processes.
Specifications
- Degree of protection (NEMA): 13
- Degree of protection (IP): IP67
- List of degrees of protection (NEMA): 1, 4, 6P, 13
- Torque to operate contacts, max: 0.34 Nm
- Mode of operation: CW and CCW ops
- Travel to operate contacts, max: 15 degrees
- Travel to reset contacts, max: 6 degrees
- Travel, max: 86 degrees
- Actuation type: Lever type, spring return, standard trip
- Connection type: 5-pin mini plug in receptacle on a 2 circuit contact block
- Switching function latching: False
- Construction type housing: Cuboid
- Number of circuits: 2 circuit
- Indicating lights: LED indicating light, 120V AC 50/60Hz, wired to NO contact
- Continuous carrying current: 2 circuits same polarity: maximum 5 A per pole @ 24V DC
- Contact rating: 2 circuits same polarity: maximum 1.1 A per pole @ 24V DC
- Contact rating, break: 2 circuits same polarity: maximum 720VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
- Contact rating, make: 2 circuits same polarity: maximum 7200VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
- Output electronic: False
- Ambient temperature during operating: 0 degrees C
- NEMA rating designation: 2 circuits same polarity: A600/AC-15
- Ambient temperature: 0...80 degrees C (32...176 degrees F)
- Width of sensor, approx: 2 Circuit: 41.3 mm
- Height of sensor, approx: 2 Circuit: 57.9 mm
- Length of sensor, approx: 2 Circuit: 119 mm
- Mechanical Life: over 10 million cycles
- Operating Temperature: -25°C to 70°C
- Electrical Ratings: up to 10A at 250VAC
New - Missing Box (Special):

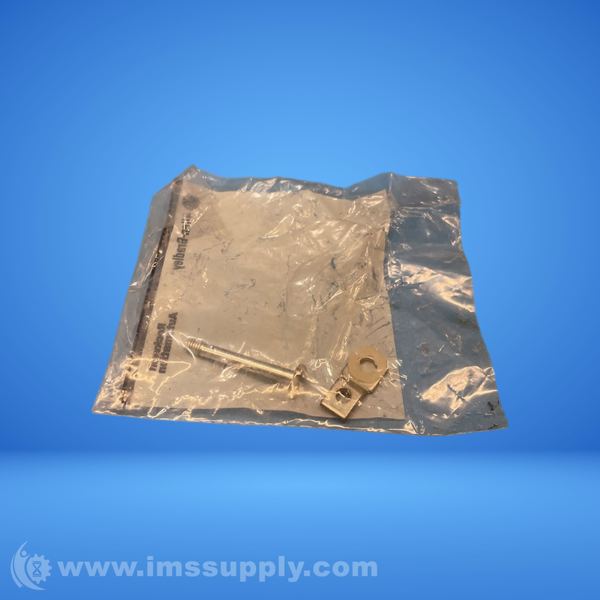

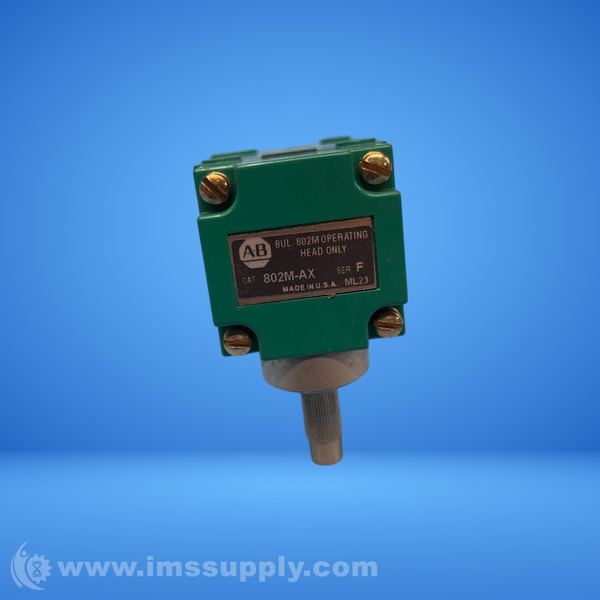

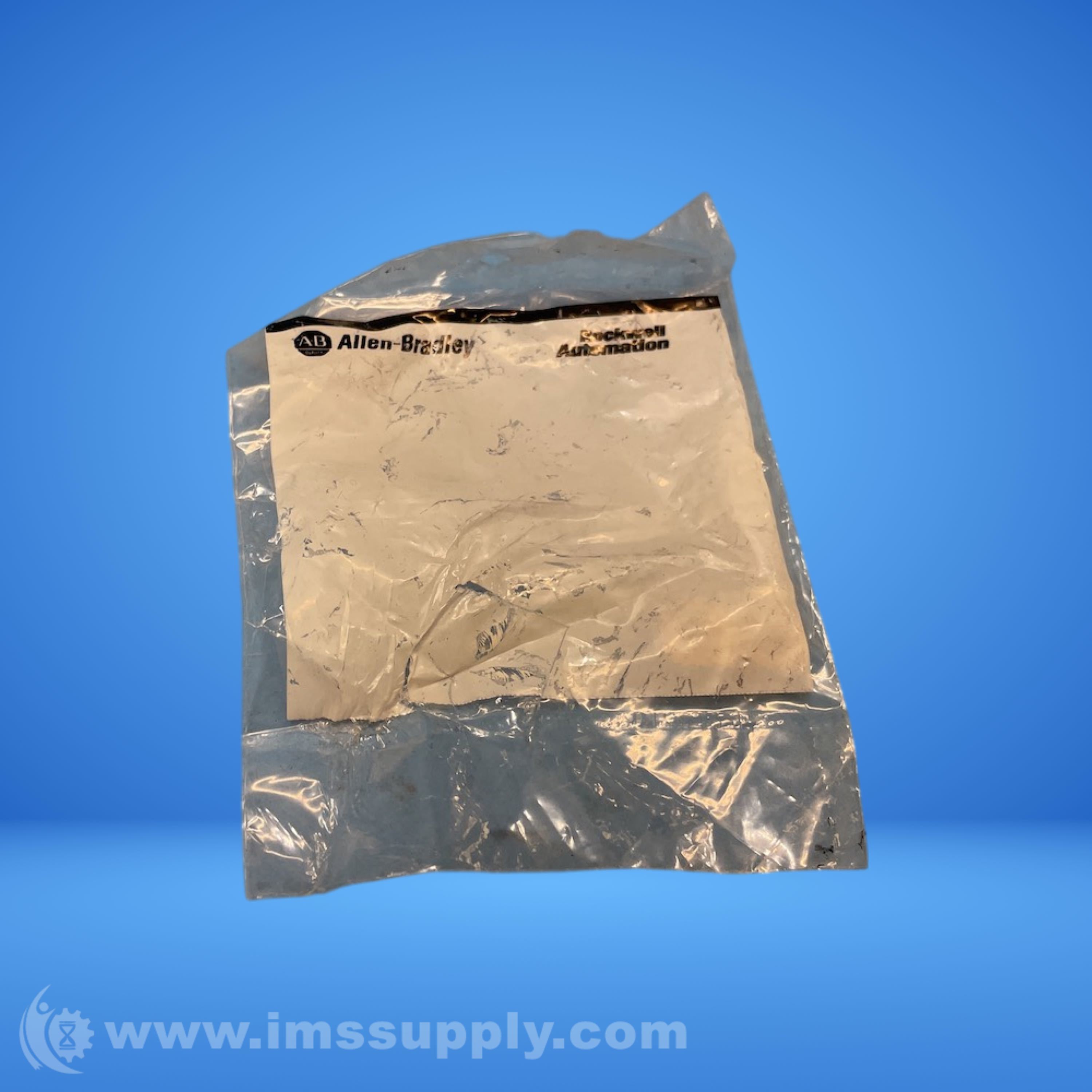

Part comes with Allen Bradley attachment P/N 802M-AX, also part comes with hardware.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 54 minutes.
