OMRON V-10G3-1C24-K SNAP ACTION SWITCH
Quick Overview
Manufactured By: OMRON
Manufacturer Part Number: V-10G3-1C24-K
IMS Product Code: 988121
Packaging: Sold Individually
Description:

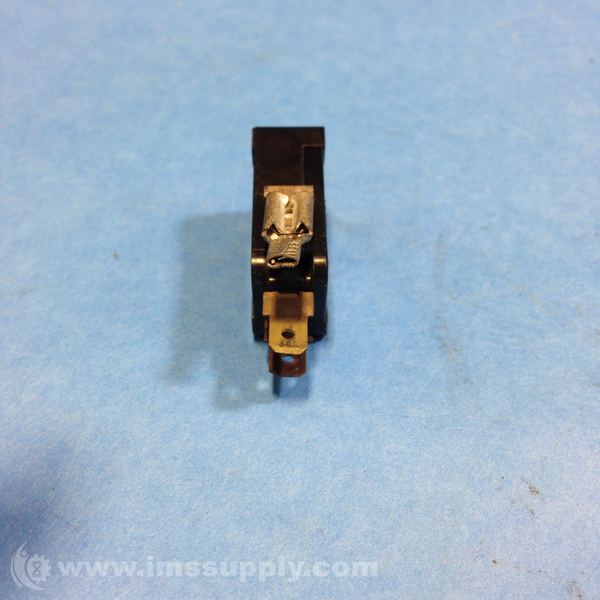

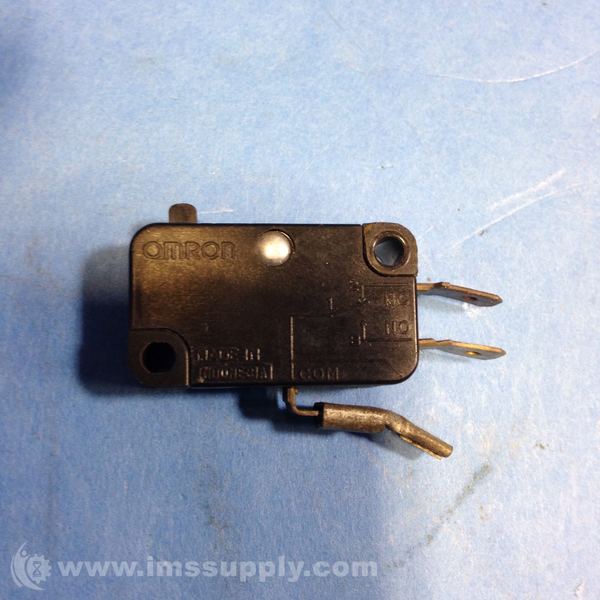

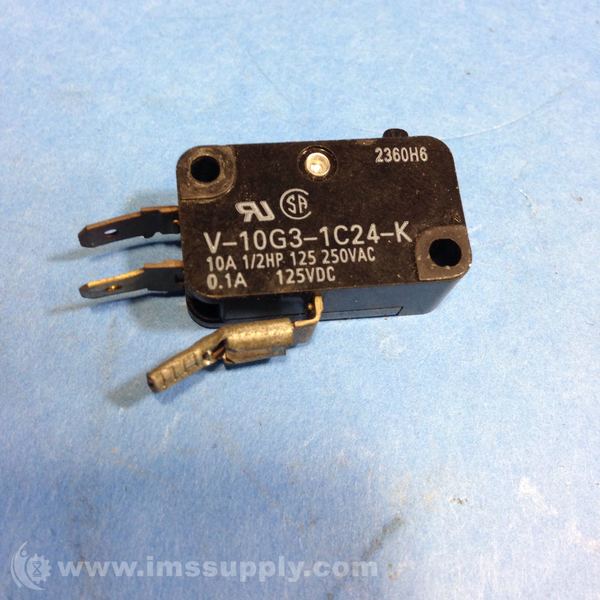

Omron V-10G3-1C24-K Snap Action Switch
Snap action limit switch with SPDT configuration, long hinge lever actuator, and quick connect terminals. Rated for 10A at 250VAC/VDC.
Specifications
- Contact Form: SPDT
- Contact Rating: 10A @ 250VAC, 0.1A @ 125VDC
- Actuator Type: Long Hinge Lever
- Terminal Type: Quick Connect
- Product Type: Limit Switch
- Switch Configuration: SPDT
- Pole Throw Configuration: SPDT
- Maximum Current Rating: 10A @ 250VAC
- Maximum Power Rating: 248.57VA
- Electrical Life: 300,000 cycles
- Mechanical Life: 50,000,000 cycles
- Operating Force: 0.34N
- Mounting: Screw Mount
- Operating Temperature Range: -25C to 80C
- Dimensions: 27.8mm x 10.3mm x 15.9mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships on Monday, January 5, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
