ALLEN BRADLEY 802M-AY12NF LIMIT SWITCH
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 802M-AY12NF
IMS Product Code: 2153527
Packaging: Sold Individually
Description:

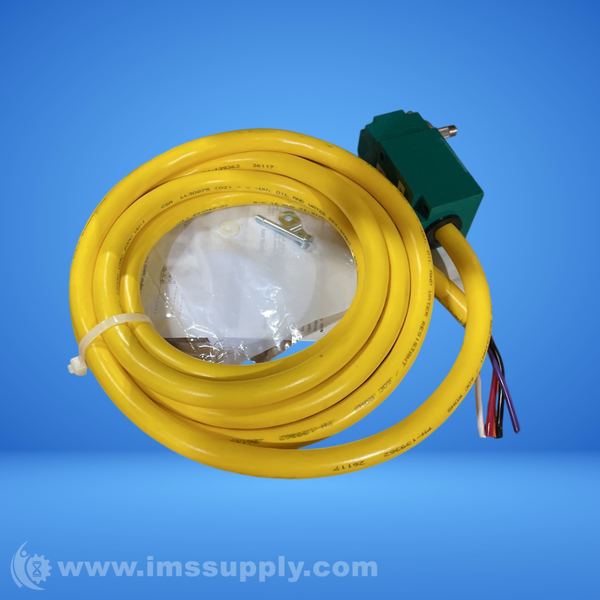

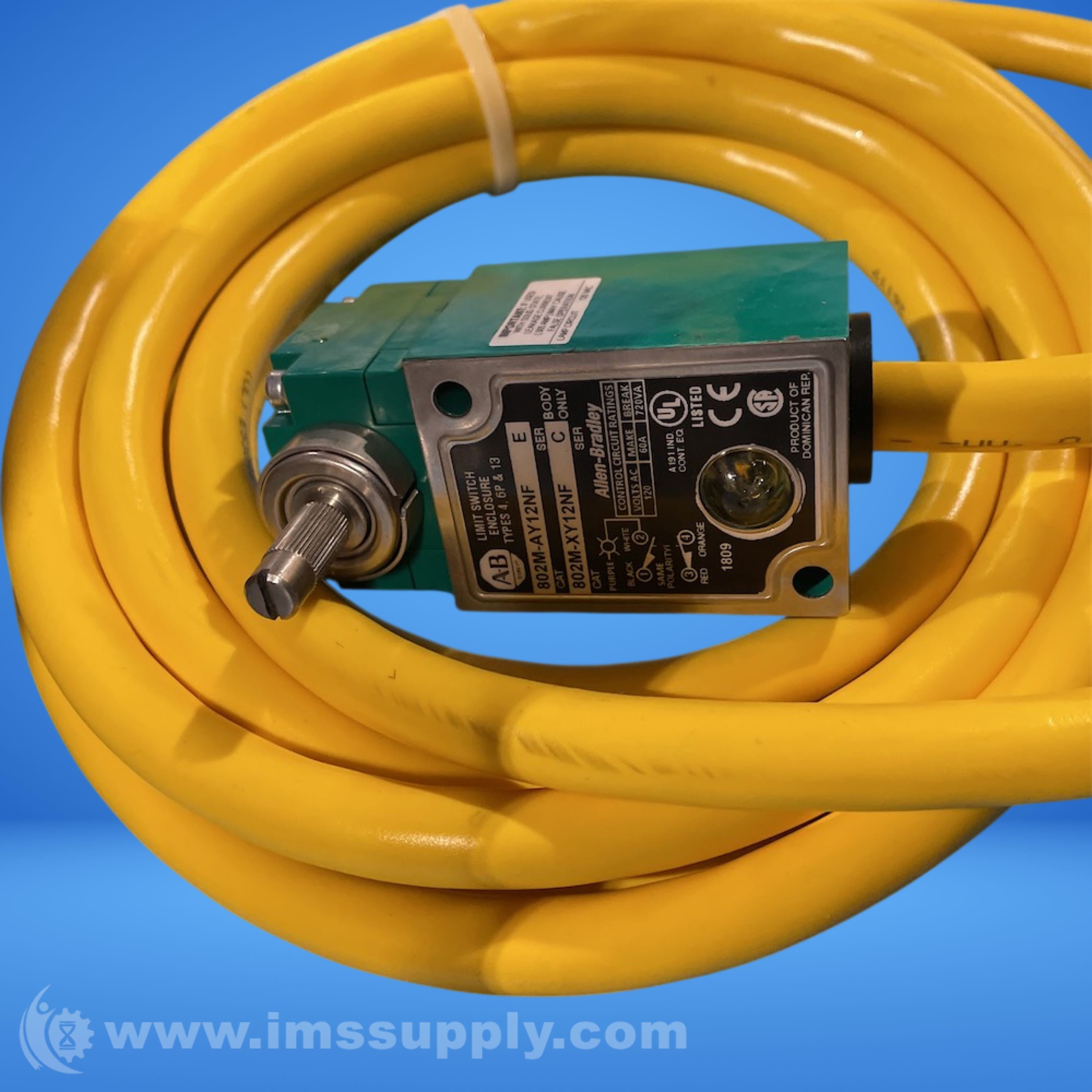

Allen Bradley 802M-AY12NF Limit Switch
Rotary Lever Spring Return Limit Switch, 2 Circuits, 12 Ft Cable, CW and CCW Operation, 120V AC 50/60 Hz Neon Indicating Light
Specifications
- Degree of protection (NEMA): 13
- Degree of protection (IP): IP67
- List of degrees of protection (NEMA): 1, 4, 6P, 13
- Torque to operate contacts, max: 0.34 Nm
- Travel to operate contacts, max: 15 degrees
- Travel to reset contacts, max: 6 degrees
- Travel, max: 86 degrees
- Actuation type: Lever type, spring return, standard trip
- Connection type: 12 ft cable
- Number of circuits: 2 circuit
- Continuous carrying current: 2 circuits same polarity: maximum 5 A per pole @ 24V DC
- Contact rating: 2 circuits same polarity: maximum 1.1 A per pole @ 24V DC
- Contact rating, break: 2 circuits same polarity: maximum 720VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
- Contact rating, make: 2 circuits same polarity: maximum 7200VA per pole @ 600V AC @ 50/60Hz, AC-15 (A600)
- Ambient temperature during operating: 0 degrees C
- Ambient temperature: 0...80 degrees C (32...176 degrees F)
- Width of sensor, approx: 2 Circuit: 41.3 mm
- Height of sensor, approx: 2 Circuit: 57.9 mm
- Length of sensor, approx: 2 Circuit: 119 mm

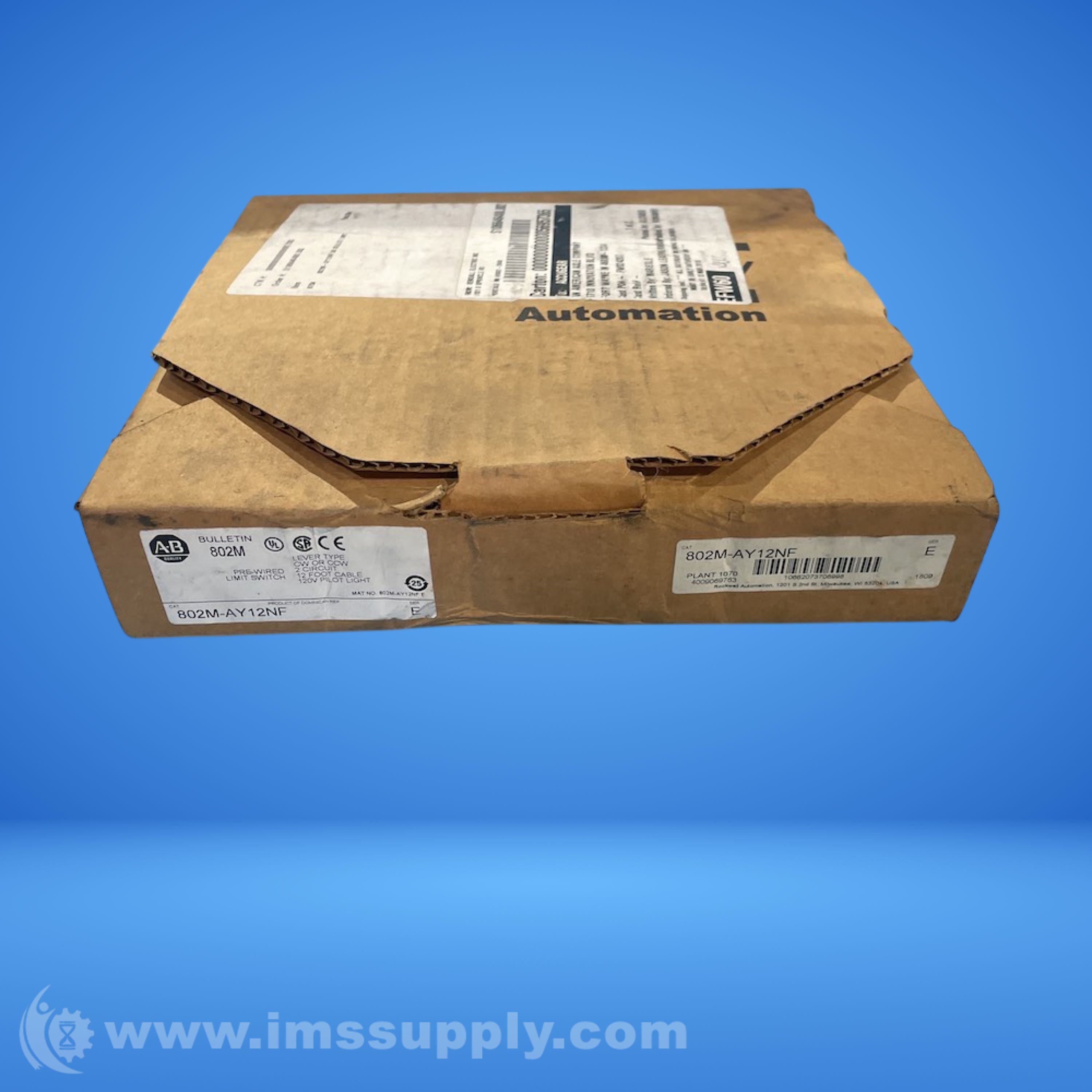

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 3 minutes.
