ALLEN BRADLEY 802T-ATPD LIMIT SWITCH
Quick Overview
Manufactured By: ALLEN BRADLEY
Manufacturer Part Number: 802T-ATPD
IMS Product Code: 1867565
Variation: Unspecified
Unspecified
Series: J
Packaging: Sold Individually
Description:

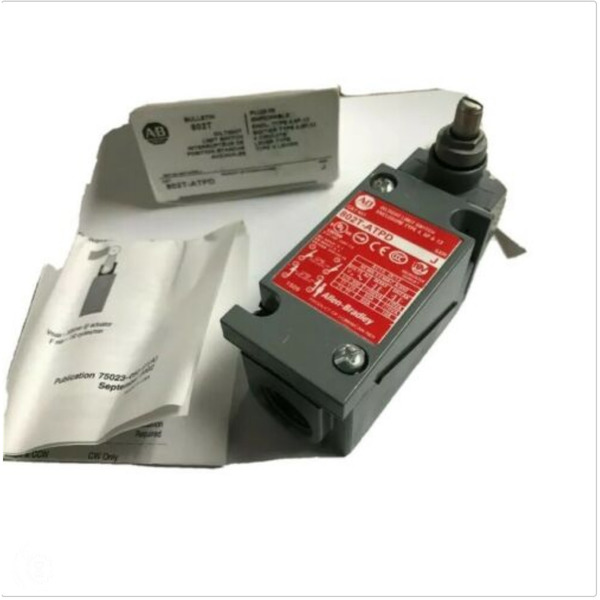

Allen Bradley 802T-ATPD Limit Switch
Oiltight limit switch with plug-in connection, lever and spring return actuator, 4-circuit CW and CCW operation, NEMA 4 and 13 rating.
Specifications
- Actuator Type: Lever, Spring Return
- Amperage: 10
- Body Material: Metal
- Cable Length: 802T Plug-in Style
- Connection Type: Plug-In
- Contact Operation: Snap Acting, Low Energy, 24V DC @ 1.1A
- Maximum Travel: 90 degrees
- Mode of Operation: CW and CCW operation
- Nema Rating: 4, 13
- Number of Circuits: 4-Circuit
- Plug-In or NonPlug-In Style: Plug-In
- Series: 802T
- Torque to Operate Contacts (Max.): 0.45N-m (4lb in)
- Travel to Operate Contacts (Nominal): 13 degrees
- Travel to Reset Contacts (Max.): 7 degrees
- Type: Oiltight Limit Switches
- Voltage: 600VAC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 12 minutes.
