ALTRONIX AL600ULXB POWER SUPPLY/CHARGER BOARD
Quick Overview
Manufactured By: ALTRONIX
Manufacturer Part Number: AL600ULXB
IMS Product Code: 2143790
Packaging: Sold Individually
Description:

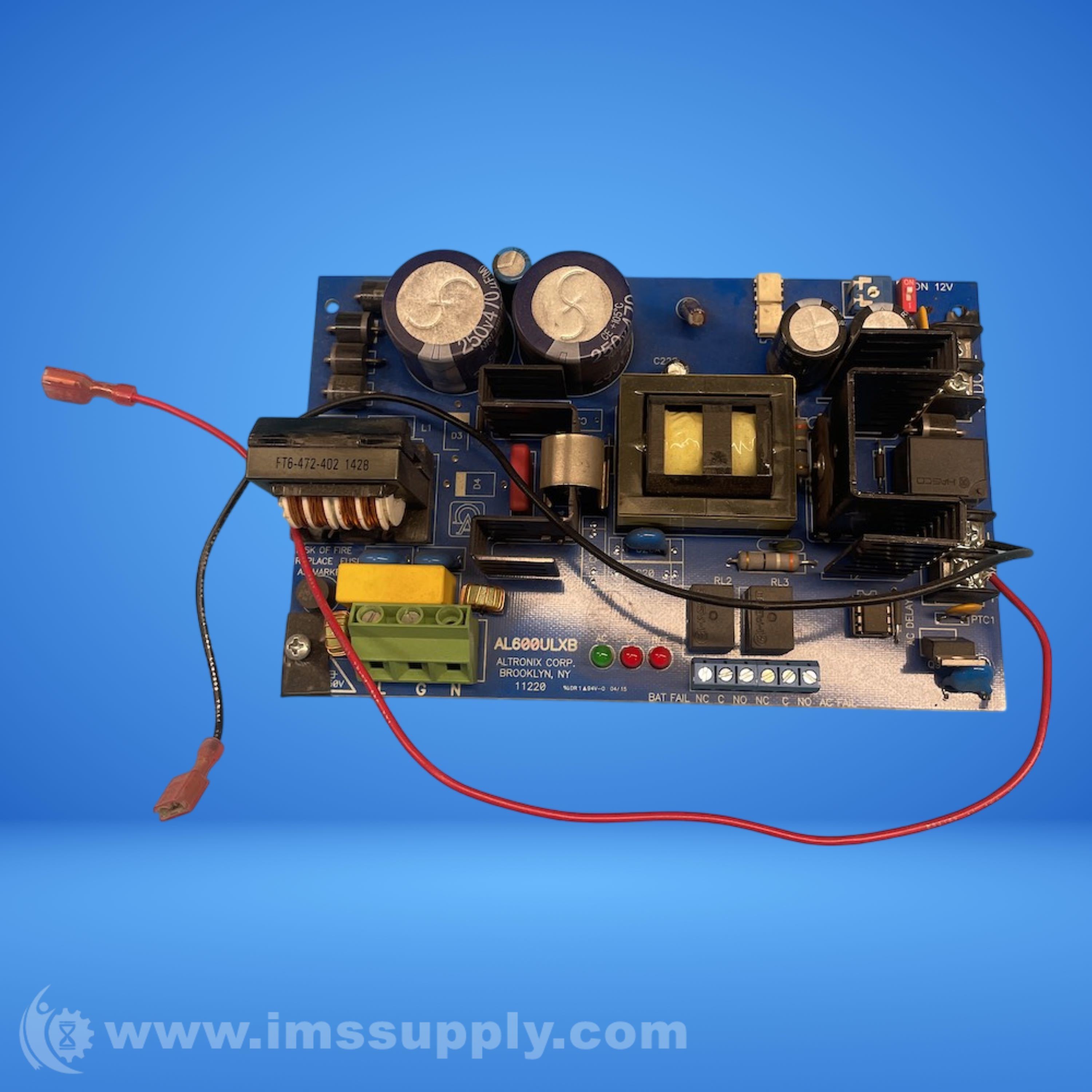

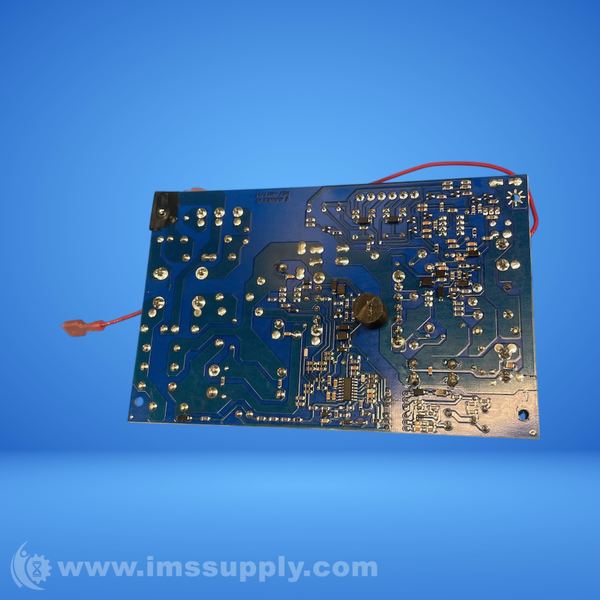

Altronix AL600ULXB Power Supply/Charger Board
Power supply/charger converts 115VAC 60Hz input into 12VDC or 24VDC non-power-limited output. Includes AC fail supervision, battery presence supervision, and low battery supervision.
Specifications
- Input: 115VAC, 60Hz, 3.5A
- Output Voltage: 12VDC or 24VDC
- Output Current: 6A
- Output Type: non-power-limited
- Battery Backup: Built-in charger for sealed lead acid or gel type batteries
- Supervision: AC fail, low battery, and battery presence supervision
- Visual Indicators: AC input and DC output LED indicators
- Operating Temperature: 0 to 49 degrees C
- Storage Temperature: -20 to 70 degrees C
- Relative Humidity: 85% +/- 5%
- Dimensions: 4.5"W x 7.1"L x 2"H
- Weight: 0.8 lbs
- Certifications: UL Recognized
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
