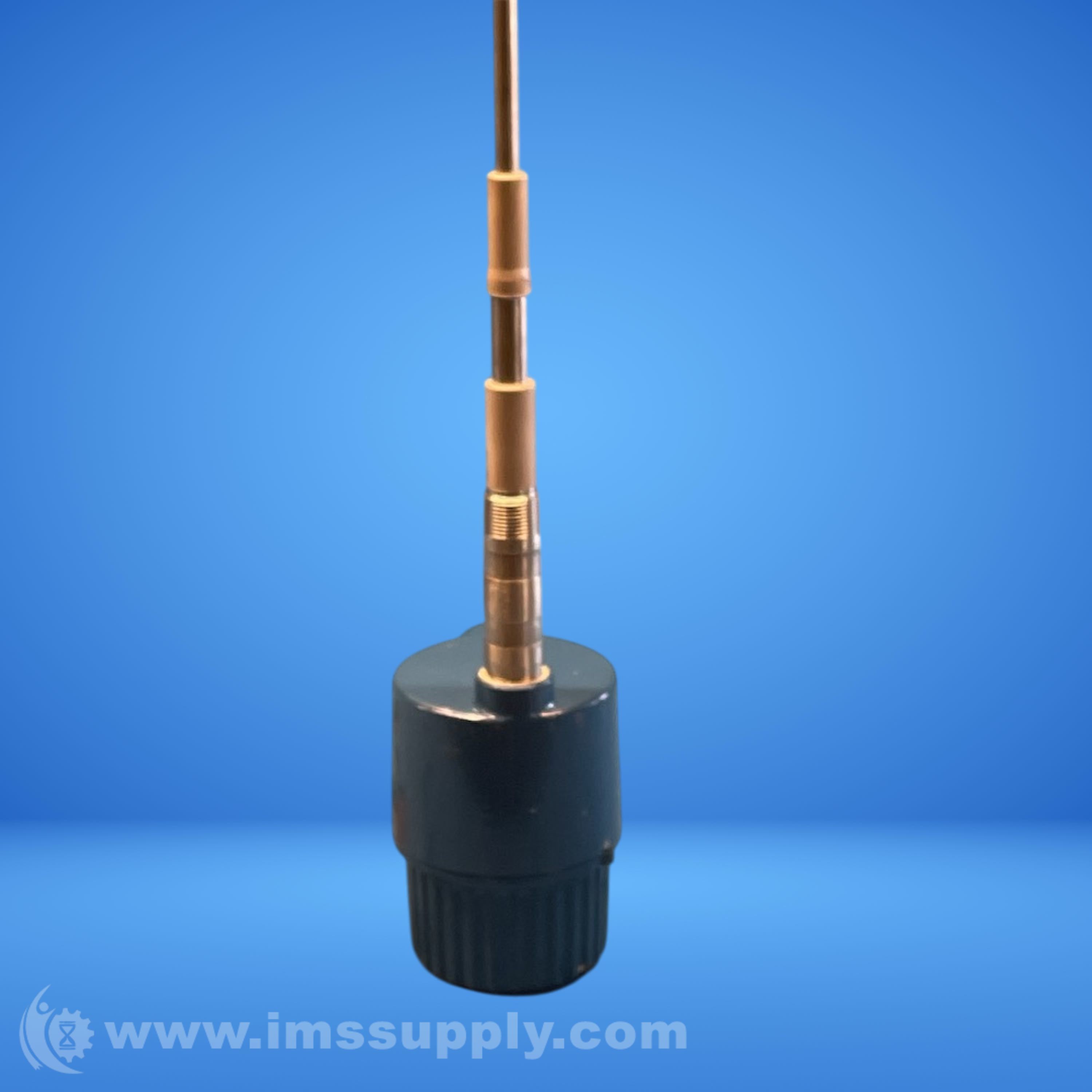

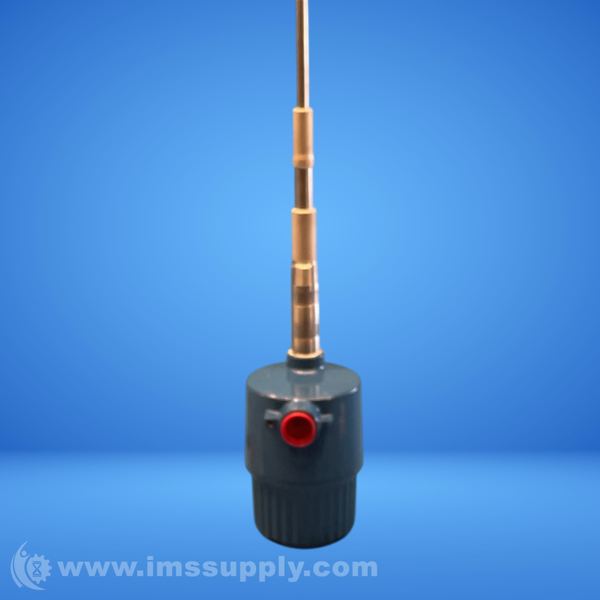

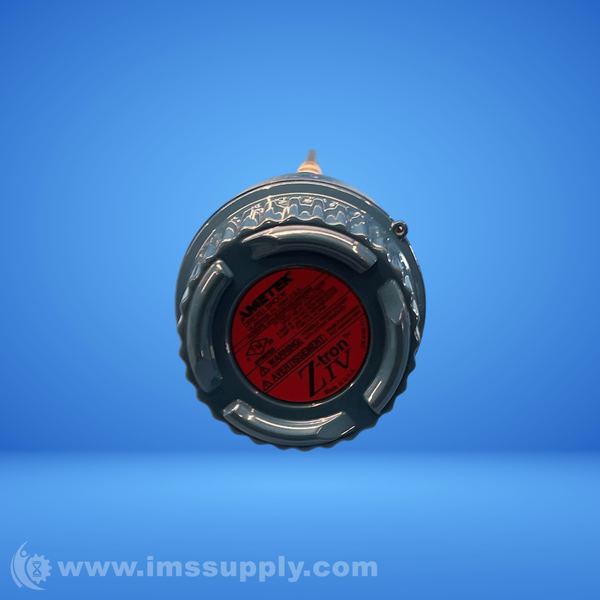

AMETEK Z-TRON IV VIBRATING LEVEL SWITCH
Quick Overview
Manufactured By: AMETEK
Manufacturer Part Number: ZTRON IV
IMS Product Code: 2147663
Packaging: Sold Individually
Description:
Ametek Z-Tron IV Vibrating Level Switch
A one-piece on/off vibrating level switch for liquids, suited for various applications including tanks and pump control. Made of stainless steel, it is unaffected by coatings and corrosive liquids.
Specifications
- Voltage (AC): 115 V-AC, 230 V-AC
- Technology: vibrating, electromechanical, admittance RF
- Medium: for liquids
- Applications: for tanks, for the food industry, sanitary, for pump control, for sediment level detection
- Material: stainless steel
- Mounting: horizontal
- Process temperature: Max.: 63 degrees C, Min.: -40 degrees C
- Process pressure: 1,000 psi
- Power requirements: AC Units: 95-145 VAC, 50/60 Hz, 2 Watt, DC Units: 19-29 VDC input, 2 Watt
- Operating point range: 0-80 pF
- Relay output: DPDT relay closure
