AMI BEARINGS UCF204-12 FOUR-BOLT FLANGE UNIT
Quick Overview
Manufactured By: AMI BEARINGS
Manufacturer Part Number: UCF204-12
IMS Product Code: 1945550
Packaging: Sold Individually
Description:

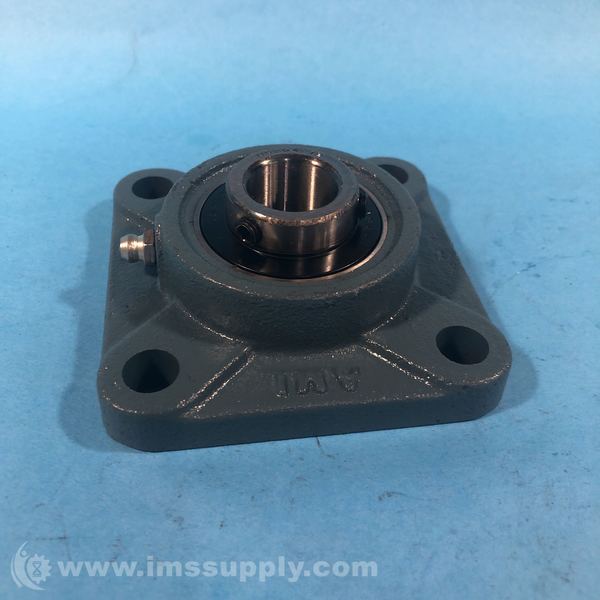

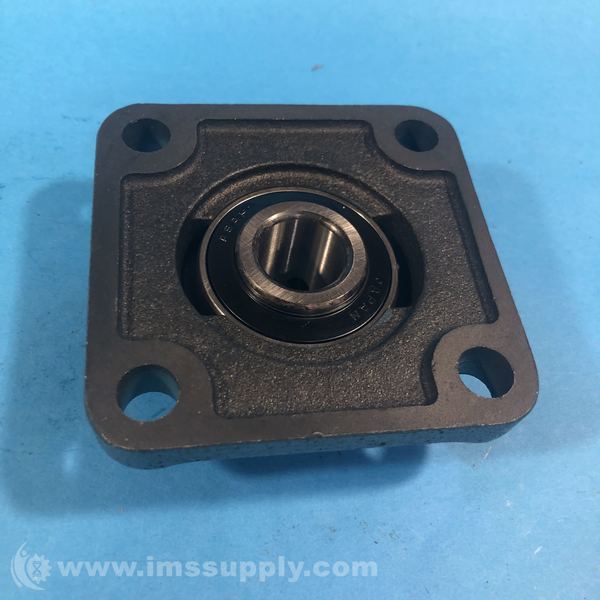

Ami Bearings UCF204-12 Four-Bolt Flange Unit
Four-Bolt Flange Ball Bearing Unit with 3/4 in Bore, Cast Iron Housing, Set Screw Locking, Non-Expansion Bearing, Standard Duty, R-Seals Seal
Specifications
- Shaft Diameter: 3/4 in
- Bolt Size: 3/8 in
- Bearing: UC204-12
- Housing: F204
- Lubrication Fitting Tap: 1/4-28 UNF
- Weight: 1.3 lb
- a: 3-3/8 in
- e: 2-1/2 in
- g: 15/32 in
- x: 1 in
- s: 7/16 in
- Z: 1.311 in
- Bi: 1.22 in
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 3/4 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Center To Center Length: 2.5 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: R-Seals
- Overall Length Diameter: 3.375 in
- Overall Height: 1.31 in
- Bore Type: Straight
- Lubrication Type: Relubricatable
- Series: UCF
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Flange
- Length: 3.875 in
- Width: 3.875 in
- Height: 1.938 in
- Cubic Inches: 29.093
- Housing Type: Four-Bolt Flange
- Locking Type: Set Screw Locking
- Bearing Insert Material: AISI 52100 Steel
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
