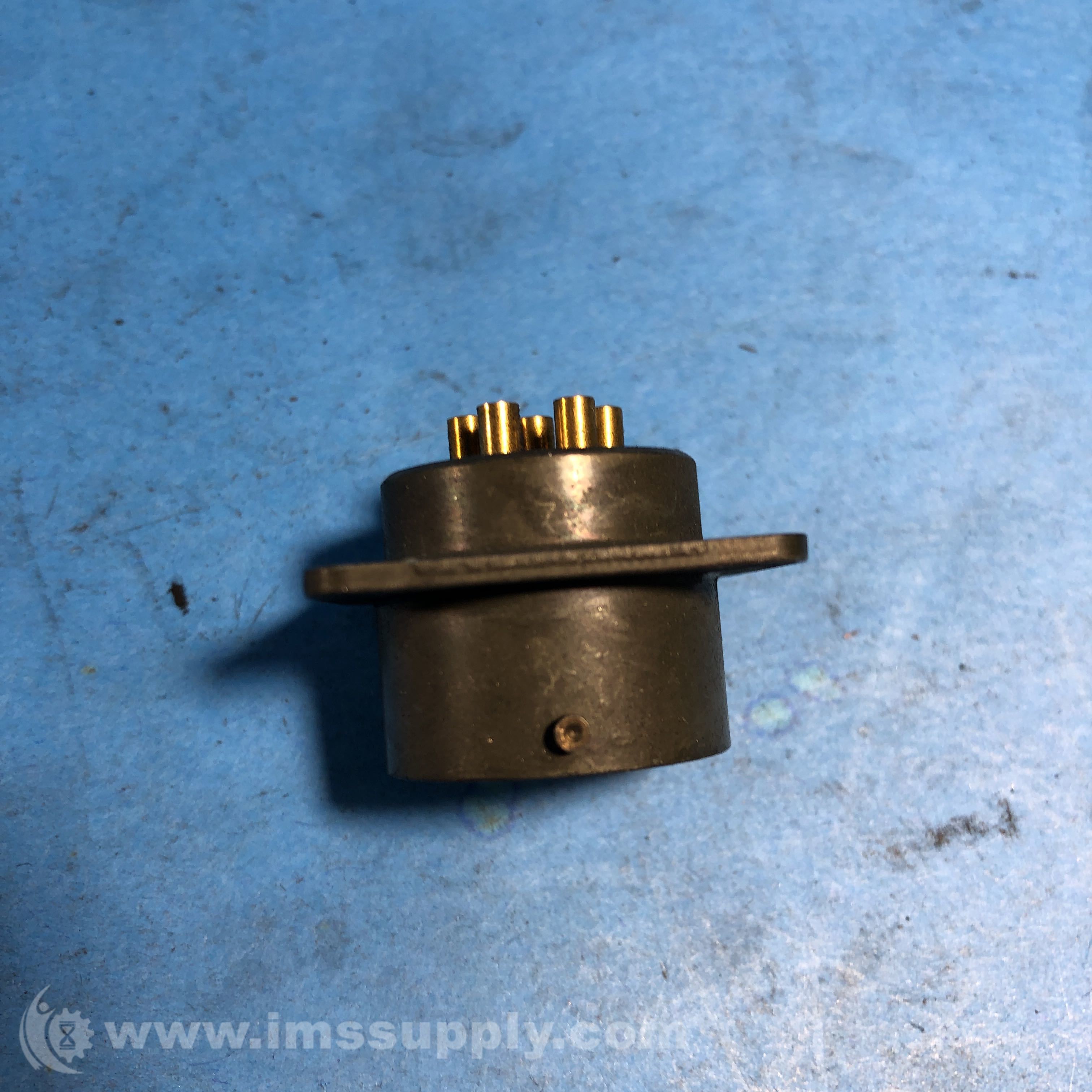

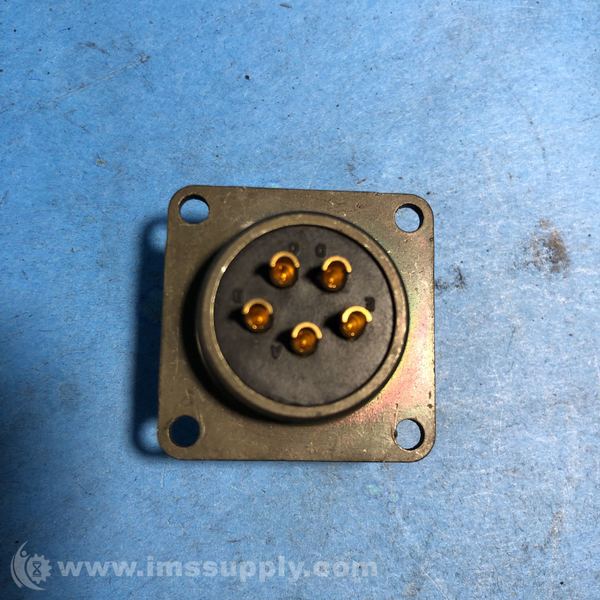

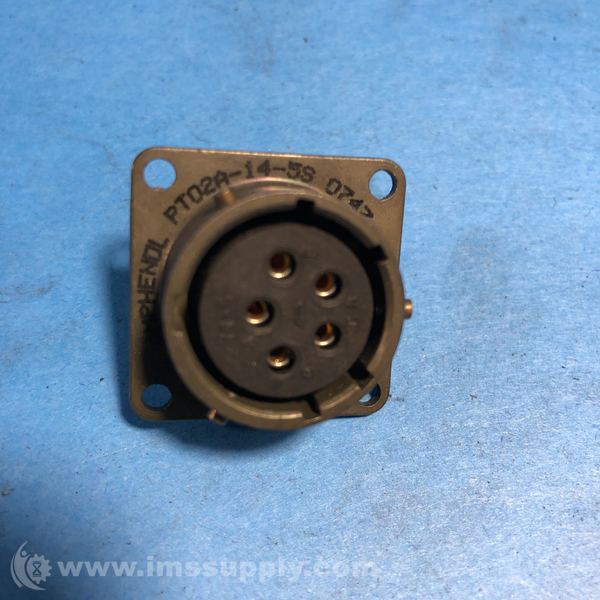

AMPHENOL PT02A14-5S CIRCULAR CONNECTOR
Quick Overview
Manufactured By: AMPHENOL DATA TELECOM
Manufacturer Part Number: PT02A14-5S
IMS Product Code: 189149
Packaging: Sold Individually
Description:
Amphenol PT02A14-5S Circular Connector
MIL-DTL-26482 Series I, Box Mount Receptacle, 5 Contacts
Specifications
- Specification: MIL-DTL-26482
- Sealing: Unsealed
- Shielding: Yes
- Connector Type: Circular
- Connector Style: Receptacle
- Mounting Type: Box - Front Mount - Thru Holes
- Contacts, # of: 5
- Contact Style: Socket
- Termination Method: Solder
- Insert Arrangement: 14-5
- Contact Size: 5#16
- Contact Material: Copper Alloy
- Contact Plating: Gold
- Shell Material: Aluminum Alloy
- Shell Plating: Olive Drab Cadmium
- Shell Color: Olive Drab
- Insert Material: Neoprene
- Grommet & Seals Material: Neoprene
- Amperage Rating: 22A
- Operating Voltage AC V RMS Max: 1000
- Operating Temperature: -67 to +257 (-55 to +125)
- Contact Mating Life: 500
- Insert Rotation/Keying: Normal
- Operating Voltage DC: 1400
- Orientation: Straight
- Service Rating: II
- Coupling Style: Bayonet
- Product Range: PT Series
- Circular Connector Shell Style: Box Mount Receptacle
- No. of Contacts: 5
- Circular Contact Type: Solder Socket
