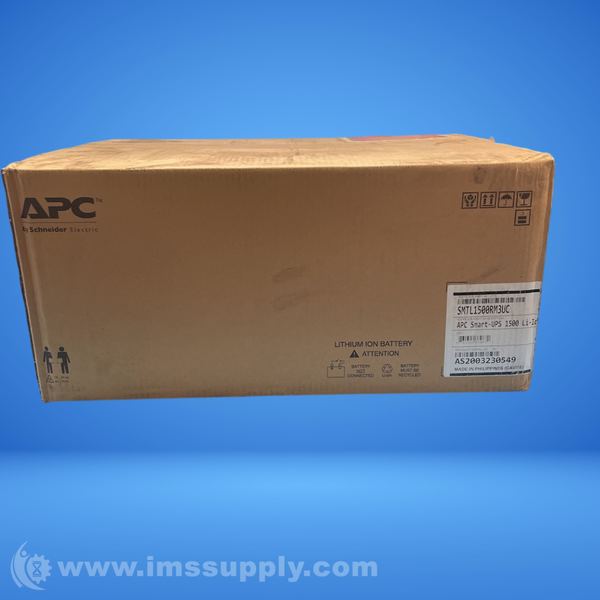

APC SMTL1500RM3UC RACKMOUNT UPS
Quick Overview
Manufactured By: APC
Manufacturer Part Number: SMTL1500RM3UC
IMS Product Code: 2147168
Packaging: Sold Individually
Description:
Apc SMTL1500RM3UC Rackmount UPS
APC Smart-UPS Lithium-ion, Line Interactive, 3RU, Short Depth, 1500VA/1350W, 120V with SmartConnect, (6) x 5-15R Receptacles, Serial (RJ45) with SmartSlot, USB, APC SmartConnect (RJ45).
Specifications
- input voltage: 100-240vac
- mounting: rackmount
- output power: 1350w
- output voltage: 120vac
- rack height: 3u
- style: line interactive
- type: ups
- maximum power: 1350 w
- number of outlets: 6
- voltage compatibility: 1500 va, 120 v
- color: silver
- form factor: rack mountable
- maximum wattage: 1350 w
- features: audible alarm, cold start, rack mountable, noise filtering, avr (automatic voltage regulation)
- surge energy capacity: 680j
- item height: 5.2in.
- item width: 17.2in.
- weight: 43lbs.
- depth: 11.9in.
- width: 17.2in.
- output power capacity: 1.35kwatts / 1.44kva
- max configurable power (watts): 1.35kwatts / 1.44kva
- nominal output voltage: 120v
- output voltage distortion: less than 5%
- output frequency (sync to mains): 50/60hz +/- 3 hz
- topology: line interactive
- waveform type: sine wave
- output connections: (6) nema 5-15r (battery backup)
- transfer time: 6ms typical : 10ms maximum
- nominal input voltage: 120v
- input frequency: 50/60 hz +/- 3 hz (auto sensing)
- input connections: nema 5-15p
- cord length: 8ft (2.44meters)
- input voltage range for main operations: 82 - 144v
- input voltage adjustable range for mains operation: 75 - 154v
- number of power cords: 1
- battery type: li-ion
- typical recharge time: 2 hour (s)
- expected battery life (years): 5 - 10
- battery volt-amp-hour capacity: 310
- control panel: multi-function lcd status and control console
- audible alarm: alarm when on battery : distinctive low battery alarm : configurable delays
- available smartslot interface quantity: 1
- surge energy rating: 680joules
- filtering: full time multi-pole noise filtering : 0.3% ieee surge let-through : zero clamping response time : meets ul 1449
- maximum height: 5.14inches (131mm, 13.1cm)
- maximum width: 17.25inches (438mm, 43.8cm)
- maximum depth: 11.89inches (302mm, 30.2cm)
- net weight: 43.0lbs. (19.5kg)
- operating temperature: 32 - 104 f (0 - 40 c)
- operating relative humidity: 0 - 95 (non-condensing) %
- operating elevation: 0-10000ft (0-3000meters)
- storage temperature: -40 - 35 c
- storage relative humidity: 0 - 95 (non-condensing) %
- storage elevation: 0-25000ft (0-7500meters)
- audible noise at 1 meter from surface of unit: 45.0dba
- online thermal dissipation: 135.0btu/hr
- protection class: ip 20
- approvals: csa c22.2 no. 107.3, fcc part 15 class a, nom, ul 1778, ul 1973
