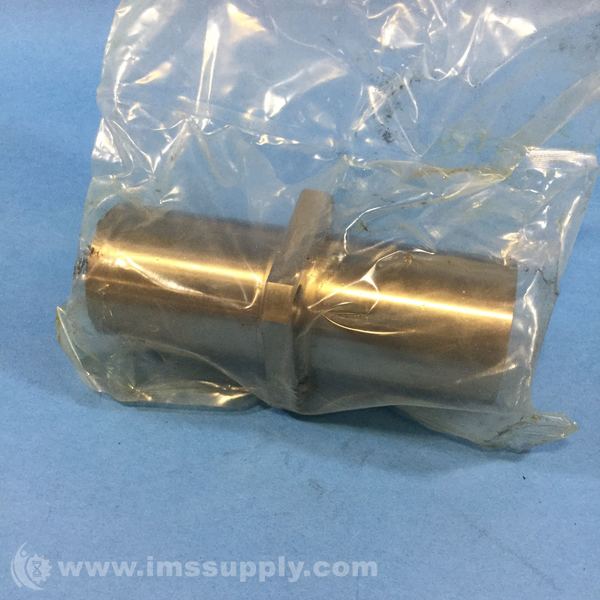

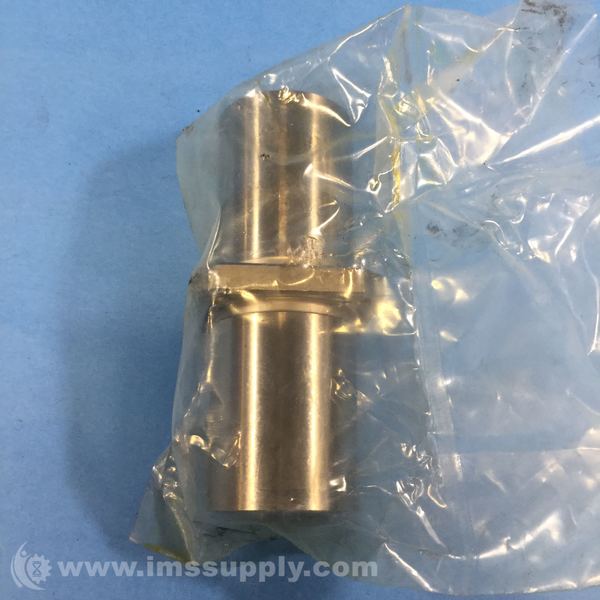

ASK NFCS-25VLUU LINEAR BALL BEARING

Starting At: $154.00

Quick Overview

Brand: ASK
Part Number: NFCS-25VLUU
IMS Product Code: 1788235
Packaging: Sold Individually

Description:

Ask NFCS-25VLUU Linear Ball Bearing, Long Center Flange, Square, Steel, NF

Specifications:

  • Type: Center Flange
  • Motion: Linear Motion
  • Outer Cylinder Material: Steel
  • Outer Cylinder Surface Finish: Surface Treatment
  • Inscribed Circle Diameter dr(Ø): 25
  • Overall Length L(mm): 112
  • Lubrication Type: Not Provided
  • Outer Diameter D(Ø): 40
  • Length: Long
  • Ball Recirculating Type: Double
  • Basic Dynamic Load Rating (Details)Details)(N): 1,558    Basic Static Load Rating(N): 3,136
  • Precision: Standard Grade
  • Inscribed Circle Diameter Tolerance (Negative Side)ce (Negative Side)(mm): -0.012
  • Flange Shape: Square Flange
  • Retainer material: Synthetic resin
  • Seal: Double-sided seal

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.

Availability: 2 In Stock

Ships today if ordered in the next 14 hours and 25 minutes.
