ASSURED AUTOMATION 037VAOBBC3EG2 VA SERIES BRASS ON/OFF VALVE

MSRP: $565.00
Starting At: $514.15

Quick Overview

Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: 037VAOBBC3EG2
IMS Product Code: 1848912
Packaging: Sold Individually

Description:

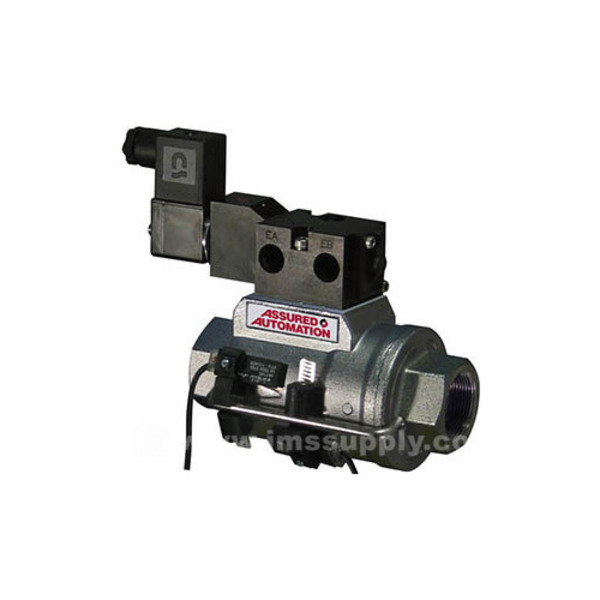

Assured Automation 037VAOBBC3EG2 VA Series Compact Brass On/Off Valve

The VA Series combines a pneumatic actuator and fast on-off control valve into one body, eliminating packing glands, actuators and mounting kits. There are no exposed moving parts, eliminating pinch points and increasing operator safety. Since the actuator is part of the valve, costs are greatly reduced when compared to standard actuated valves. Operating life has been tested to well over 1,000,000 cycles, the balanced design reduces friction and wear. The stroke is linear and parallel to the flow, dramatically reducing the required force to close or open the valve. The internal waterway design was designed for optimum flow characteristics.

Specifications:

Body Material: Nickel Plated Brass
Size and Connection: 3/8 inch NPT
Seats and Seal Material: BUNA
Actuator: Spring return, fail OPEN (sized for using 60psi supply air in applications up to 150psi ΔP)
NAMUR Solenoid: Weatherproof (NEMA 4/4x) 4-way/2-position, with DIN cord grip cable gland (PG9) connector, 24 VAC
Limit Switch: [G2] (2x) IP67 weatherproof proximity sensor - signal OPEN and CLOSED


Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days

IMS Supply is an authorized Assured Automation distributor.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
