ASSURED AUTOMATION MHPL11RK4A-EP420C BUTTERFLY VALVE
Starting At: $4,394.39
Quick Overview
Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: MHPL11RK4A-EP420C
IMS Product Code: 1879293
Packaging: Sold Individually
Description:

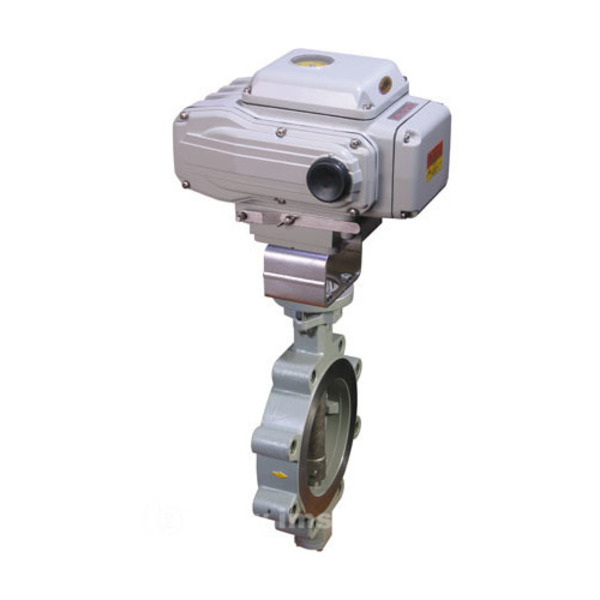

Assured Automation MHPL11RK4A-EP420C High Performance Butterfly Valve, HP Series
The HP Series is a high performance soft seated, metal seated, fire safe butterfly valve. Body material is either Carbon steel or 316 Stainless Steel. Connections are either wafer style (HPW) or lug style (HPL) and are either 150 or 300 lb. ANSI rated. It can be equipped with a manual handle or with pneumatic or electric actuators. A full range of accessory items are available including limit switches, solenoid valves, positioners manual override devices, and bolt and flange kits.
Specifications:
Body Material: Carbon Steel (A216-WCB)
Size and Connection: 6 inch ANSI Class 150 Lugged Flange
Seal Material: RPTFE
Disc: Stainless Steel
Actuator: K4 series weatherproof (NEMA 4) 120VAC; Aluminum alloy housing; with 4-20mA modulating positioner (4 = Closed, 20 = Open, fail to CLOSED on loss of signal [main power must still be present]); Speed 15 Sec 90deg; 80% duty cycle; Internal wire terminals; (model KONUC0M-10NM-15-AC120-IS0)
(*actuator sized for applications up to 150 psi ΔP - call for higher pressures)
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 7 Days
Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
