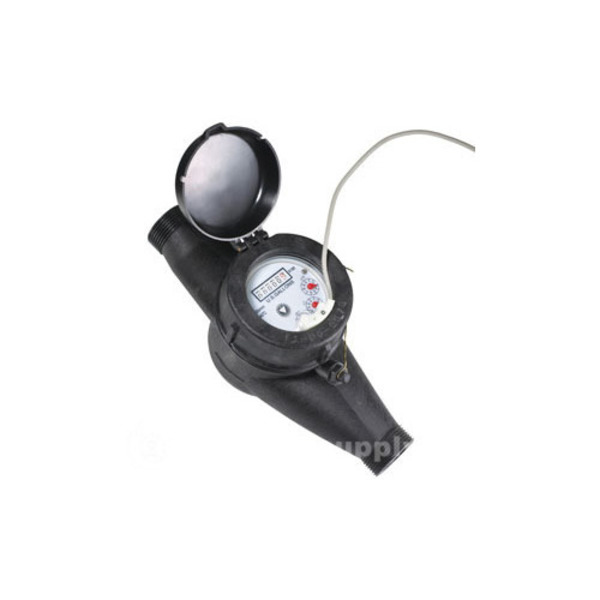

ASSURED AUTOMATION WM-PC-050-R/2P PLASTIC MECHANICAL WATER METER

Starting At: $103.87

Quick Overview

Manufactured By: ASSURED AUTOMATION
Manufacturer Part Number: WM-PC-050-R/2P
IMS Product Code: 1881397
Packaging: Sold Individually

Description:

Assured Automation WM-PC-050-R/2P WM-PC Series Plastic Mechanical Water Meter, Water Meter with Pulse Output

The WM-PC Series meter is a multijet dry-type totalizing water meter. It is produced in an ISO9001 certified production facility and is constructed in conformance with AWWA C708 standards. The product complies with NSF/ANSI 61 and conforms with lead-free plumbing as defined by California, Vermont, Maryland and Louisiana state laws and the U.S. Safe Drinking Water Act that took effect January, 2014.

Water flows through the meter’s strainer and into the measuring chamber where it drives the impeller. The impeller drives the mechanical register dials via a magnetic coupling. The WM-PC Series water meter consists of three basic components: main case, measuring chamber, and head ring. The main cases of all sizes are constructed of fiber reinforced polymer.

Specifications:

Size & Connection: 1/2 inch NPT
Housing Material: Plastic (NSF/ANSI 61)
Flow Range: 1 - 20 gpm
Accuracy: +/- 1.5%
Function: Totalizer only
Units: U.S. Gallons
Pulse Output: Dry Contact Reed Switch, 2 pulses per Gallon ($36)


Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 7 Days

IMS Supply is an authorized Assured Automation distributor.
