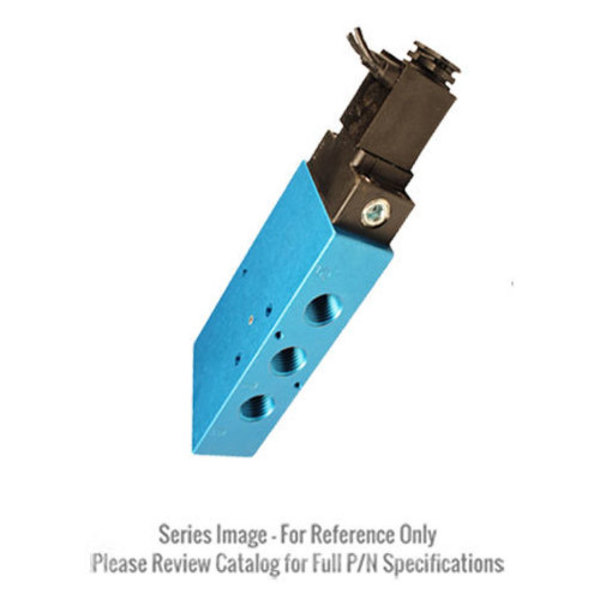

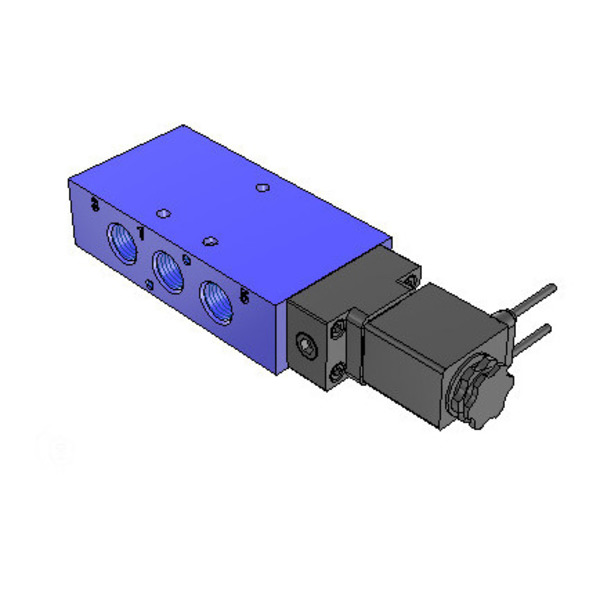

AUTOMATIC VALVE L2003AAWR-DBG 5/2 SOLENOID VALVE

Starting At: $86.77

Quick Overview

Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L2003AAWR-DBG
IMS Product Code: 1735901
Packaging: Sold Individually

Description:

Automatic Valve L2003AAWR-DBG L20 Series Valve, Solenoid, Single 3/2, Normally Closed, 1/4" NPT, Spring Return, 24 VDC, 18" Leads

  • 1/8”, ¼”, 3/8 & ½” port options
  • Air pilot & solenoid pilot options
  • Single & Double 5/2, Double 5/3
  • Weather-Proof options are NEMA 4X rated
  • Explosion-Proof options are CSA & FM approved and ATEX Compliant
  • Additional models available, please view downloadable literature

Specifications:

  • Port Size: 1/4" NPT
  • Body Type: Inline
  • Valve Function: Single 5/2
  • Actuation: Solenoid
  • Series: L20
  • Return Type: Spring Return
  • Application: Weather-Proof
  • Voltage: 24 VDC
  • Electrical Connection: 18" Leads NEMA 4X
  • Valve Body Material: Aluminum
  • Flow Cv l/min: Cv 1.8 (l/min 1770)
  • Weight: 1.3 lbs (0.59 kg)

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 5 to 7 Days

IMS Supply is an authorized Automatic Valve distributor.
