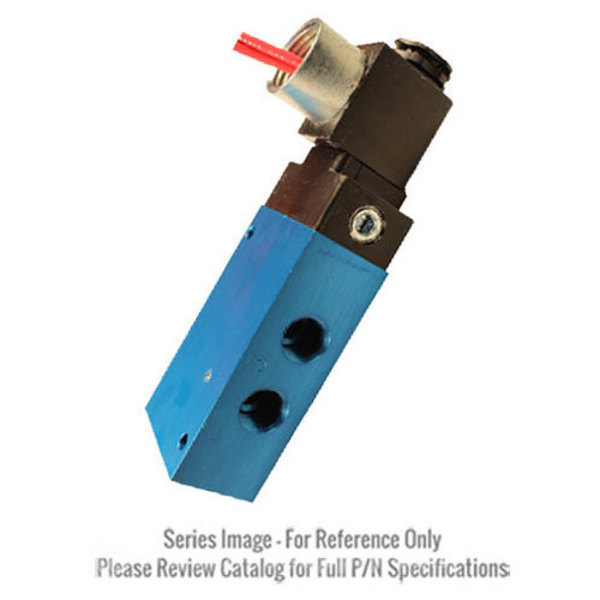

AUTOMATIC VALVE L2003GAWR-AAC 3/2 SOLENOID VALVE

Starting At: $81.14

Quick Overview

Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L2003GAWR-AAC
IMS Product Code: 1737156
Packaging: Sold Individually

Description:

Automatic Valve L2003GAWR-AAC L20 Series Valve, Solenoid, Single 3/2, 1/4" NPT, Spring Return, 120 VAC, 1/2" Conduit, 30" Leads

  • 1/8”, ¼”, 3/8 & ½” port options
  • Air pilot & solenoid pilot options
  • Single & Double 5/2, Double 5/3
  • Weather-Proof options are NEMA 4X rated
  • Explosion-Proof options are CSA & FM approved and ATEX Compliant

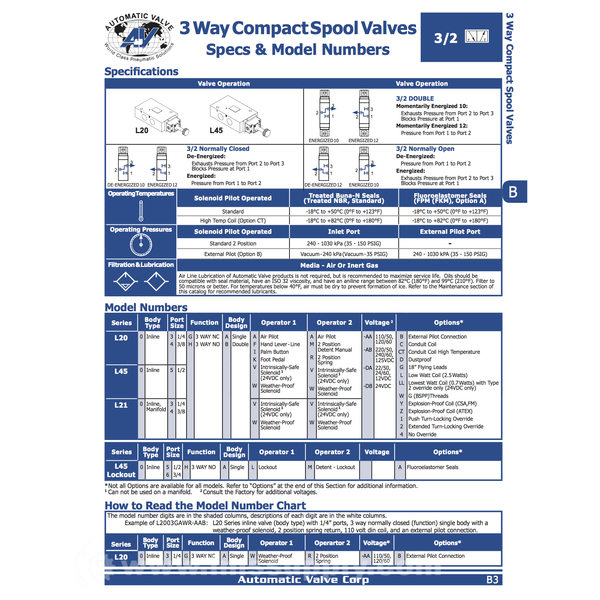

  • Additional models available, please view downloadable literature

Specifications:

  • Port Size: 1/4" NPT
  • Body Type: Inline
  • Valve Function: Single 3/2
  • Default Position: Normally Closed
  • Actuation :Solenoid
  • Series: L20
  • Return Type: Spring Return
  • Application: Weather-Proof
  • Voltage: 120 VAC
  • Electrical Connection: 1/2" Conduit with 30" Leads NEMA 4X
  • Valve Body Material: Aluminum
  • Flow Cv l/min: Cv 1.8 (l/min 1770)
  • Weight: 1.3 lbs (0.59 kg)

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 5 to 7 Days

IMS Supply is an authorized Automatic Valve distributor.

Product images shown are for illustration purposes only and may not be an exact representation of the product you will receive. All product names, trademarks, brands and logos used on this site are the property of their respective owners and are used for identification purposes only.
