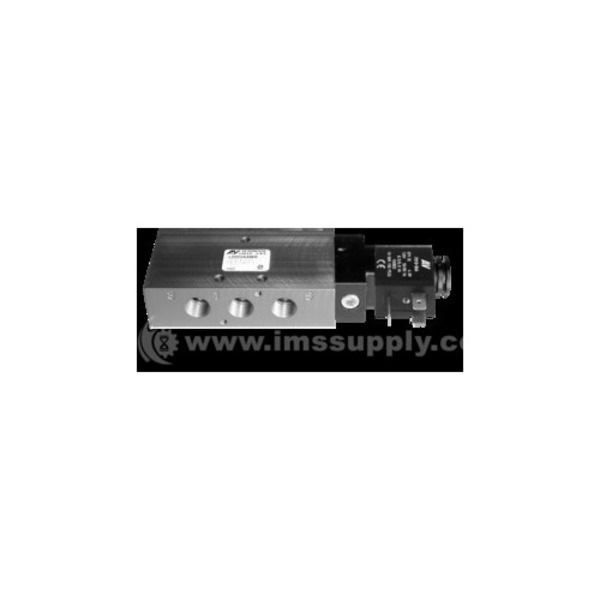

AUTOMATIC VALVE L4505AAWR-AASY SOLENOID VALVE

Starting At: $774.32

Quick Overview

Manufactured By: AUTOMATIC VALVE
Manufacturer Part Number: L4505AAWR-AASY
IMS Product Code: 1903387
Packaging: Sold Individually

Description:

Automatic Valve L4505AAWR-AASY Solenoid Valve

  • 1/8”, ¼”, 3/8 & ½” port options
  • Air pilot & solenoid pilot options
  • Single & Double 5/2, Double 5/3
  • Weather-Proof options are NEMA 4X rated
  • Explosion-Proof options are CSA & FM approved and ATEX Compliant

Specifications:

  • Port Size: 1/2" NPT
  • Body Type: Inline
  • Valve Function: Single 5/2
  • Actuation: Solenoid
  • Series: L45
  • Return Type: Spring Return
  • Application: Explosion-Proof
  • Voltage: 120 VAC
  • Electrical Connection: 1/2" Conduit with 24" Leads
  • Valve Body Material: 303 Stainless Steel
  • Hazardous Class: CSA and FM approved
  • Class I, Division 1 Groups: A, B, C, D
  • Class I, Division 2 Groups: A, B, C, D
  • Class II, III, Division 1 Groups: E, F, G
  • Class II, III, Division 2 Groups: E, F, G
  • ATEX Compliance: CL. I, Zone1 ExmIIT4; AExmII
  • NEMA Rating: NEMA 4, 4X, 7C, 7D, 9
  • Flow Cv l/min: Cv 4.8 (l/min 4755)
  • Weight: 5.0 lbs (2.27 kg)

Direct From Manufacturer:
A new product, shipped directly from the manufacturer.

Lead Time: 3 to 5 Days

IMS Supply is an authorized Automatic Valve distributor.
