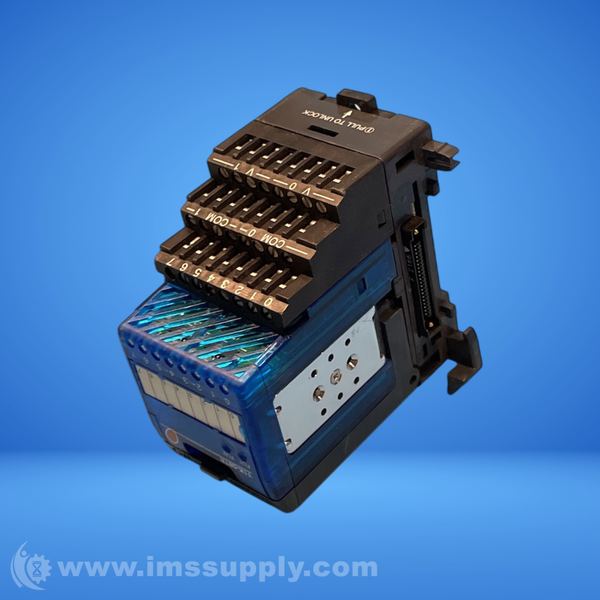

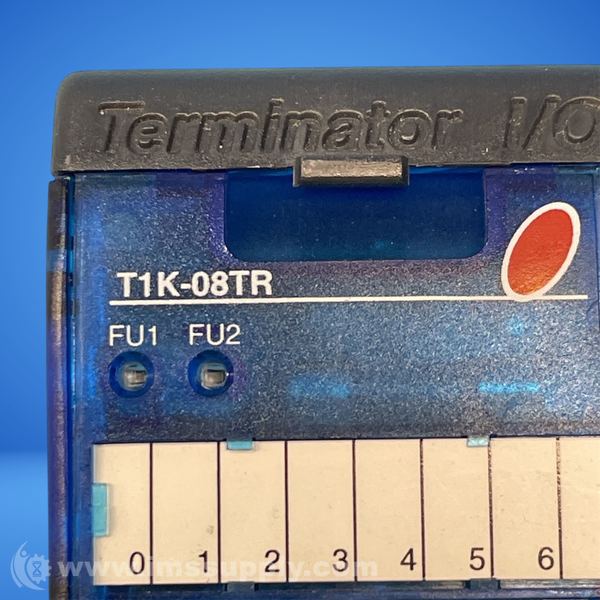

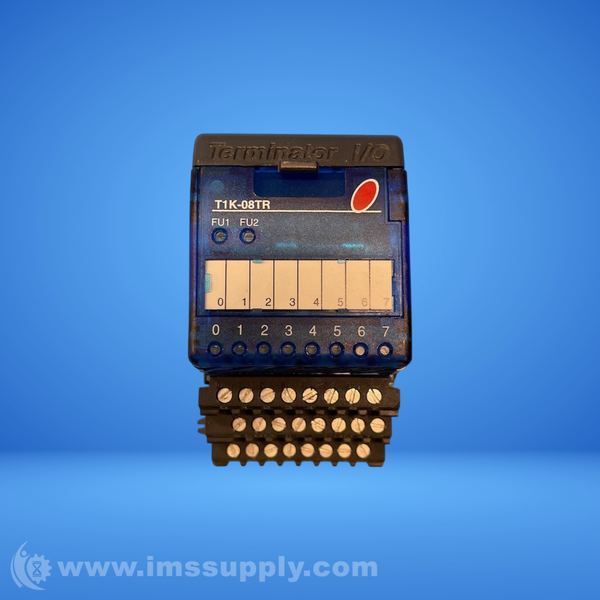

AUTOMATION DIRECT T1K-08TR RELAY OUTPUT MODULE
Quick Overview
Manufactured By: AUTOMATION DIRECT
Manufacturer Part Number: T1K-08TR
IMS Product Code: 1929387
Packaging: Sold Individually
Description:
Automation Direct T1K-08TR Relay Output Module
Relay Output Module, 8 Outputs, Normally Open, 2 Isolated Commons, Operating Voltage: 6-240 VAC (47-63)Hz, 6-27 VDC
Specifications
- points: 8
- output_type: relay
- voltage_range: 6-24 VDC/6-240 VAC
- form: (8) Form A
- common: 2 isolated common(s)
- points_per_common: 4 point(s) per common
- current_per_point: 2A/point
- current_per_common: 8A/common
- terminal_base_required: T1K-08B or T1K-08B-1
- weight: 0.55 lbs
- number_of_channels: 8
- output_current: 2A per point, 8A per module
- operating_voltage: 5-240VAC, 5-125VDC
- isolation: 1500VAC between field and logic
- output_voltage: 5-264 VAC (47-63Hz), 5-30 VDC
- max_load_current: 2A / pt., 8A / common
- max_leakage_current: 0.1 mA @ 264 VAC
- max_inrush_current: 6A for 10mS / pt.; 20 A for 10mS / com.
- min_load: 5 mA @ 5 VDC
- off_on_response: < 15 ms
- on_off_response: < 10 ms
- base_power_required: 350 mA @ 5 VDC
