AVENTICS R422P03171 2X 3/2 DIRECTIONAL VALVE
Quick Overview
Manufactured By: AVENTICS
Manufacturer Part Number: R422P03171
IMS Product Code: 1896074

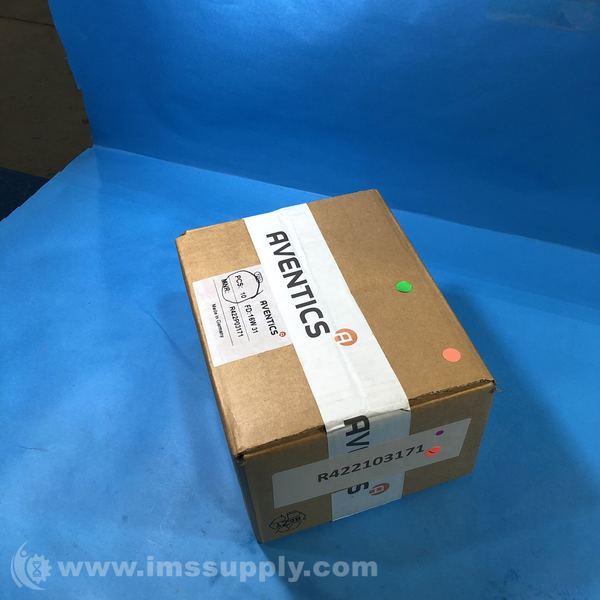

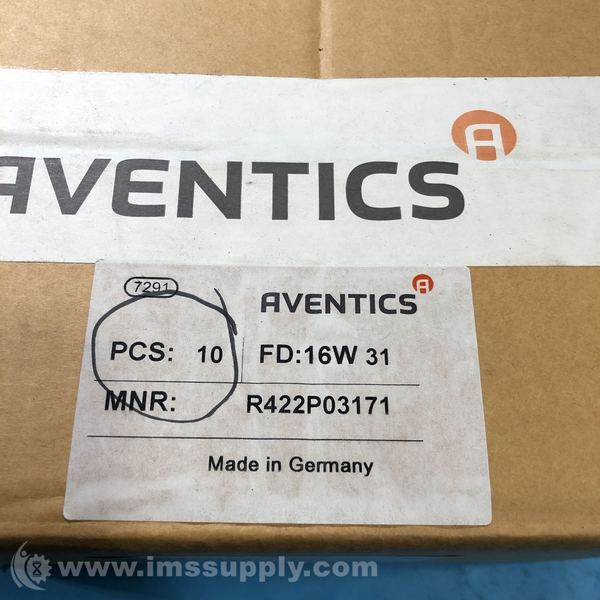

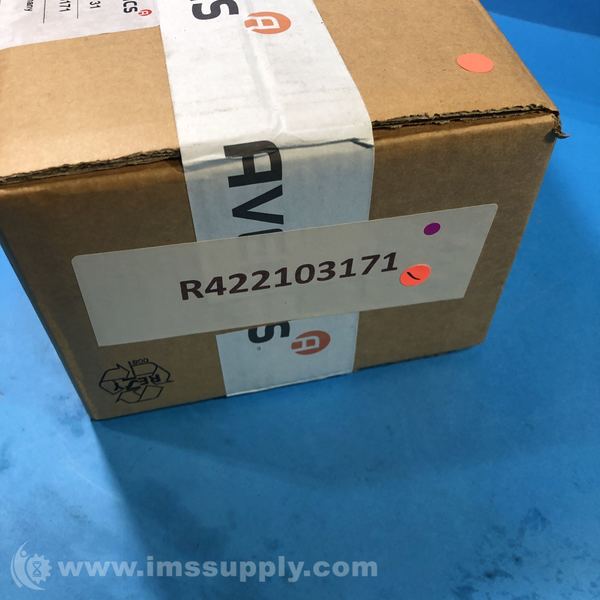

Packaging: Box of 10
Description:
Aventics R422P03171 2x 3/2 Directional Valve
Electrically actuated directional valve with spring return, 2x3/2 switching principle, compressed air connection output Ø 3/8.
Specifications
- max. pressure: 8 bar
- activation: electrically
- switching principle: 2x3/2
- compressed air connection output: Ø 3/8
- working pressure max: 8 bar
- return: with spring return
- control pressure max.: 8 bar
- max. ambient temperature: 50 °c
- max. medium temperature: 50 °c
- max. particle size: 40 µm
- oil content of compressed air max.: 5 mg/m³
- Switch-on time: <20
- mounting screws: hexalobular socket (torx) iso 10664-10
- tightening torque tolerance: ±0,1 mt
- nominal flow qn: 370 l/min
- Version: nc/nc
- working pressure min.: -0.8 bar
- actuating control: single solenoid
- control pressure min.: 3 bar
- min. ambient temperature: 5 °c
- min. medium temperature: 5 °c
- Medium: compressed air
- oil content of compressed air min.: 0 mg/m³
- compressed air connection input: base plate
- Switch-off time: <20
- mounting screw tightening torque: 0.9 nm
- Housing: Polyamide,Polyoxymethylene
- Sealing material: Acrylonitrile butadiene rubber
