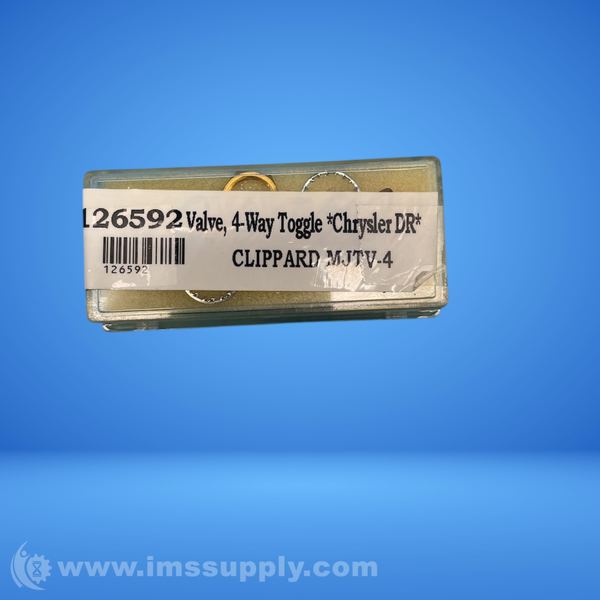

CLIPPARD MJTV-4 TOGGLE VALVE
Quick Overview
Manufactured By: CLIPPARD
Manufacturer Part Number: MJTV-4
IMS Product Code: 404578
Packaging: Sold Individually
Description:

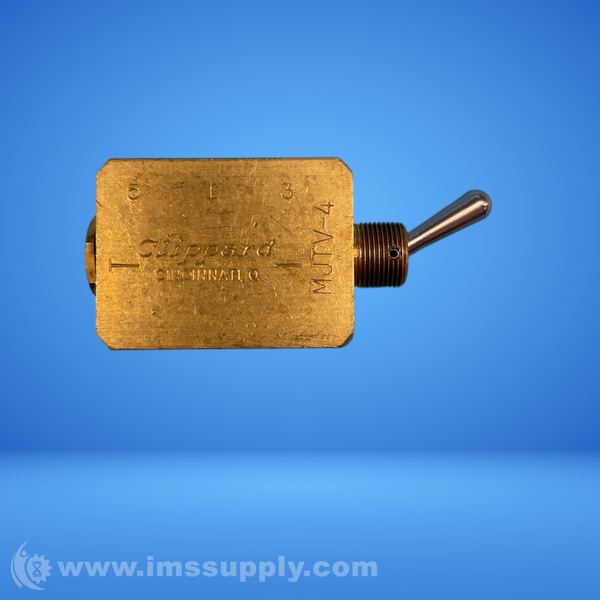

Clippard MJTV-4 Toggle Valve
Manually-actuated 4-way toggle valve with 1/8 NPT ports and Normally-Closed configuration
Specifications
- Function: 4-Way, Normally Closed
- Port Size: 1/8 NPT (Inlet & Outlet)
- Body Material: Brass
- Seal Material: Nitrile (FKM or Krytox optional)
- Toggle Material: Nickel-Plated Steel
- Spring & Stem Material: Stainless Steel
- Mounting Thread: #15/32-32
- Operating Pressure: Up to 150 psig
- Input Pressure Rating: 300 psig Max
- Flow Rate: 170 L/min @ 50 psig; 280 L/min @ 100 psig
- Temperature Range: 32F to 230F (0C to 110C)
- Compatible Media: Air, Water, Oil
- Force to Rotate Toggle: Approx. 12 oz nominal
- Weight: 0.39 lbs
