AZBIL 1LS-J500EC COMPACT LIMIT SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: 1LS-J500EC
IMS Product Code: 2129864
Packaging: Sold Individually
Description:

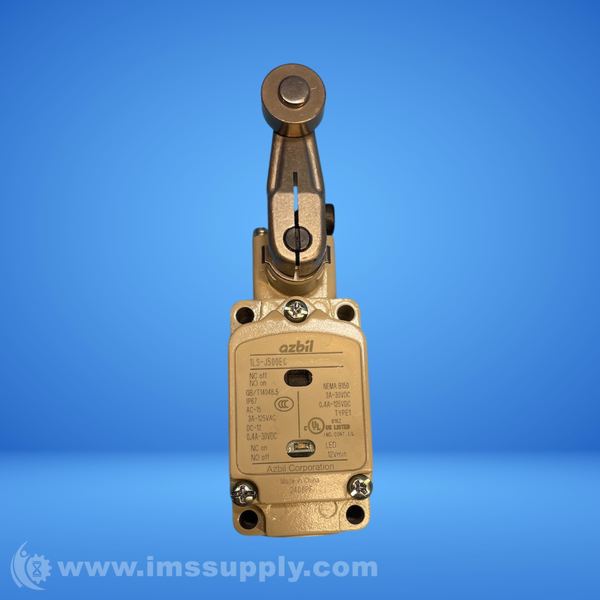

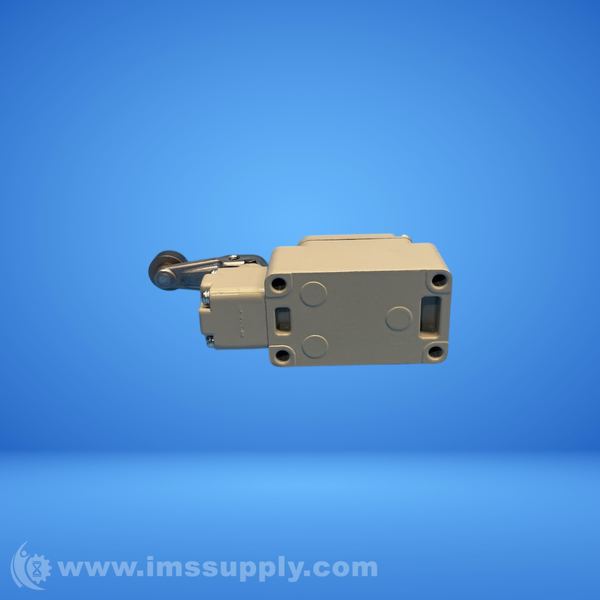

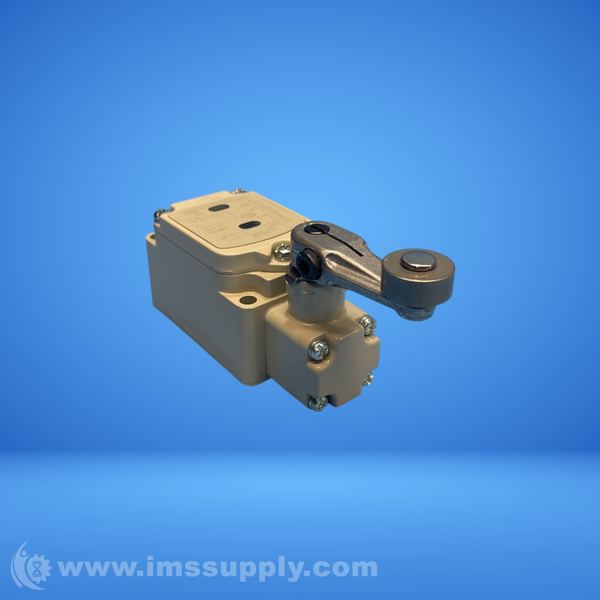

Azbil 1LS-J500EC Compact Limit Switch
A general-purpose compact limit switch with a roller lever, LED indicator, and robust die-cast aluminum construction. Rated for 12-125 Vac/dc, with IP67 protection and various terminal options.
Specifications
- max operating force: 8.9 N
- max pretravel: 20 degrees
- min total travel: 80 degrees
- voltage: 12 to 125 Vac/dc
- UL/CSA/CCC Certified: Yes
- Rugged die-cast aluminum case: Yes
- Oil, water, and dust-proof (IP67): Yes
- Operation position indicator: Yes
- Terminal types: M4 screw, DIN 4-pin connector, pre-leaded
- Rated voltage: 120/240Vac, 30Vdc
- Rated thermal current: 10A (silver), 1A (gold-plated)
- Rated frequency: 45-65Hz and DC
- Impulse dielectric strength: Withstands 5 times O.F. load for 1 minute
- Terminal Strength: Withstands 1.5N·m torque for 1 minute
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
