AZBIL 1LS-J550E LIMIT SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: 1LS-J550E
IMS Product Code: 2063796
Packaging: Sold Individually
Description:

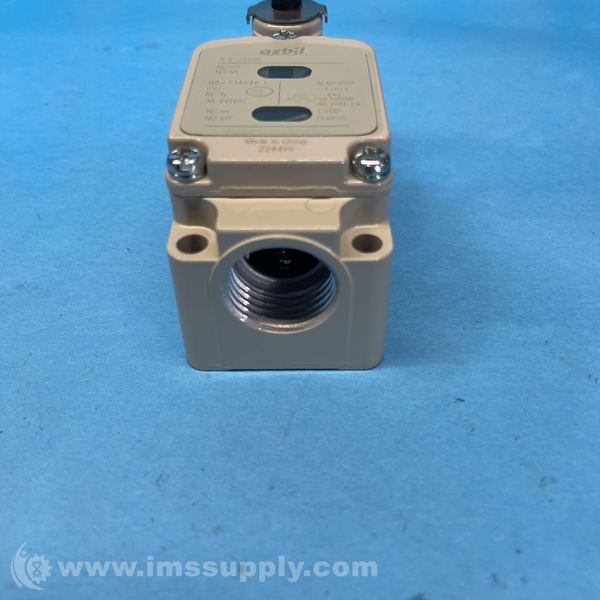

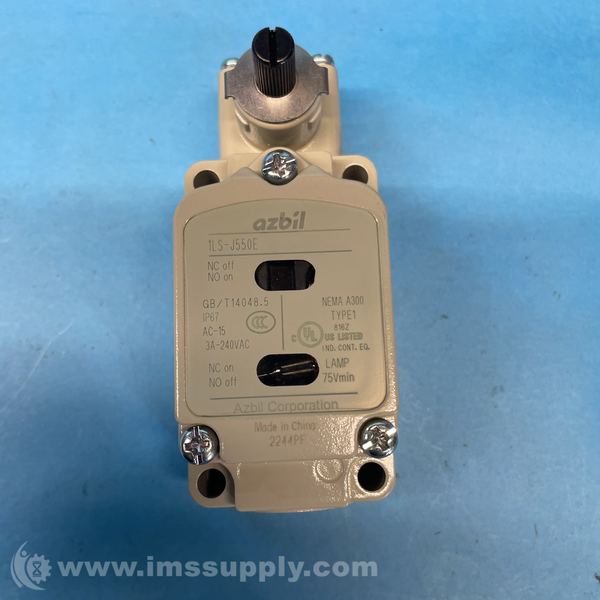

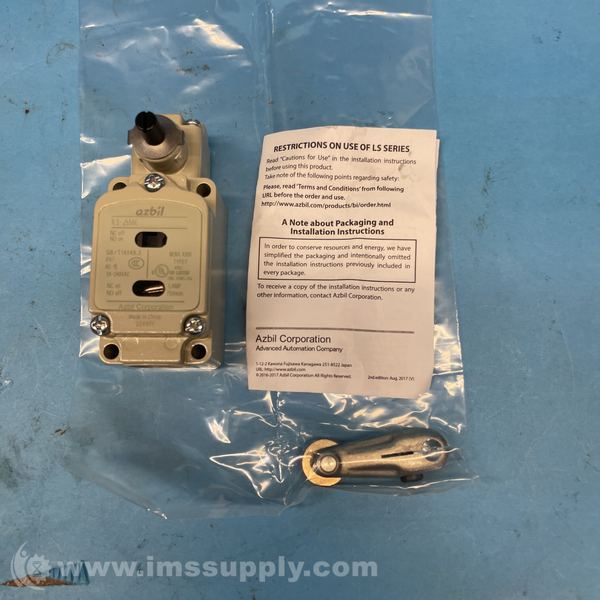

Azbil 1LS-J550E Limit Switch
General purpose compact limit switch with roller lever, max operating force 8.9 N, IP67 protection, UL/CSA/GB approved.
Specifications
- max operating force: 8.9 N
- max pretravel: 10 degrees
- min total travel: 80 degrees
- voltage: 100/200 Vac1
- terminal types: M4 screw, DIN 4-pin connector, pre-leaded
- rated voltage: 120/240Vac, 30Vdc
- rated thermal current: 10A (silver), 1A (gold-plated)
- rated frequency: 45-65Hz and DC
- protection grade: IP67
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 53 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 53 minutes.
