AZBIL 1LS-J550EC-PD03 LIMIT SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: 1LS-J550EC-PD03
IMS Product Code: 1816254
Packaging: Sold Individually
Description:

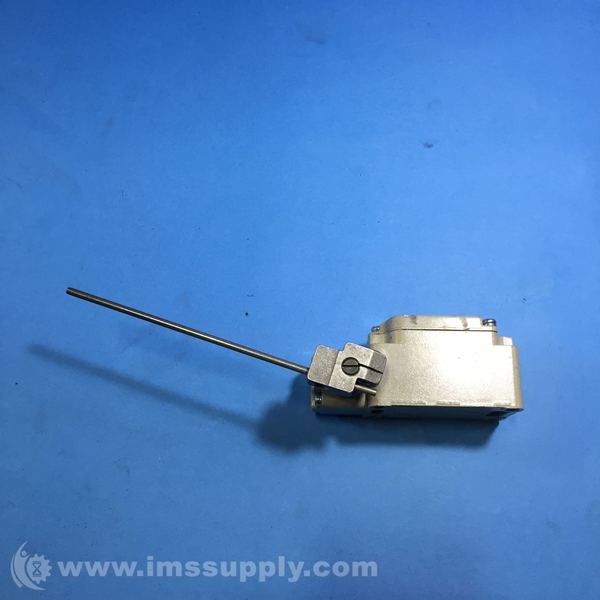

Azbil 1LS-J550EC-PD03 Limit Switch
General purpose compact limit switch with roller lever actuator, 30VDC 3A rating, 8.9N operating force, pre-leaded connector with LED indicator.
Specifications
- max operating force: 8.9 N
- max pretravel: 10 degrees
- max total travel: 75 degrees
- rated voltage: 120/240Vac, 30Vdc
- rated thermal current: 10A (silver), 1A (gold-plated)
- rated frequency: 45-65Hz and DC
- terminal strength: Withstands 1.5N�m torque for 1 minute
- impulse dielectric strength: Withstands 5 times O.F. load for 1 minute
- oil, water, and dust-proof (IP67): Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 5 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
has an attachment on the end
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
