AZBIL 1LS-J700EC-PD LIMIT SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: 1LS-J700EC-PD
IMS Product Code: 2155161
Packaging: Sold Individually
Description:

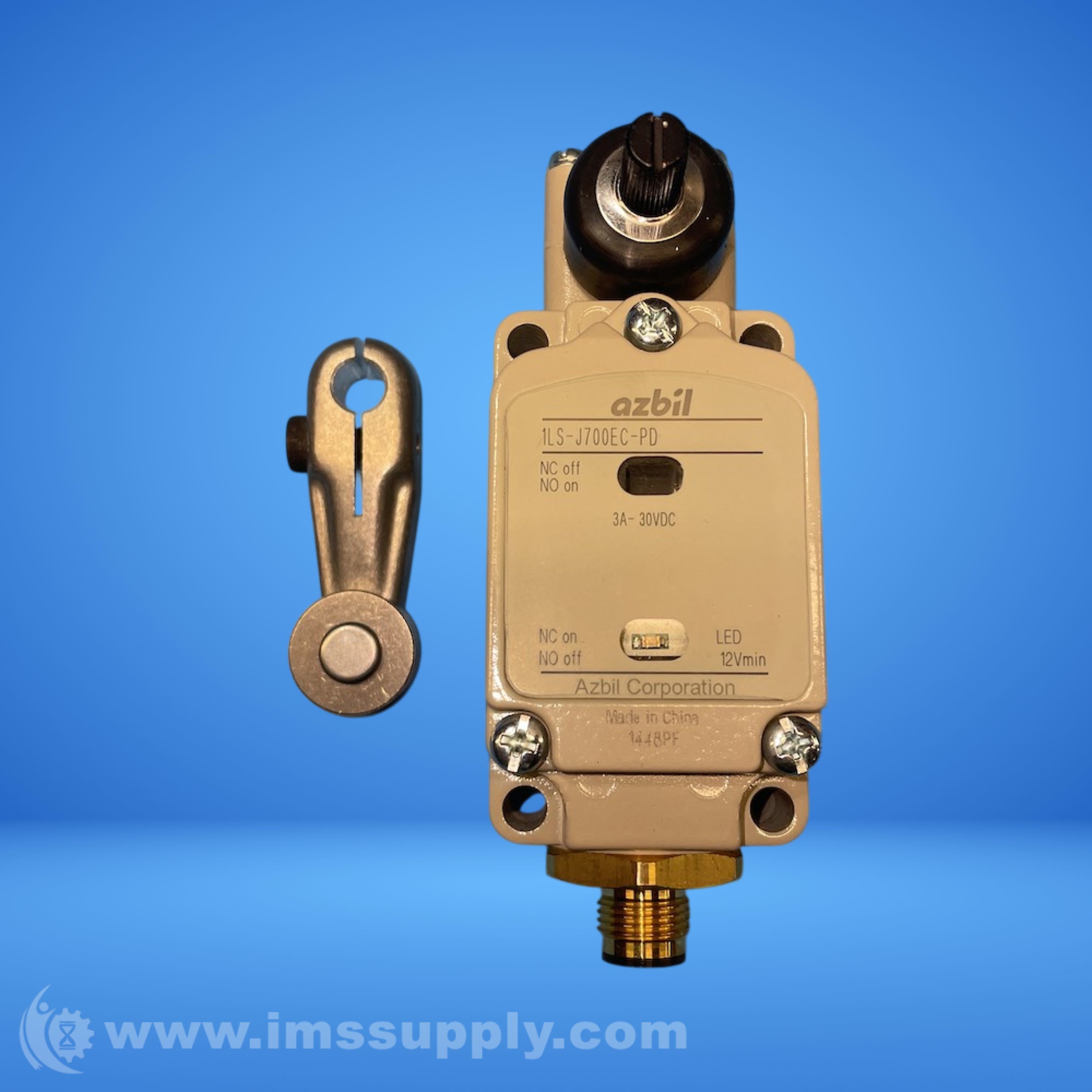

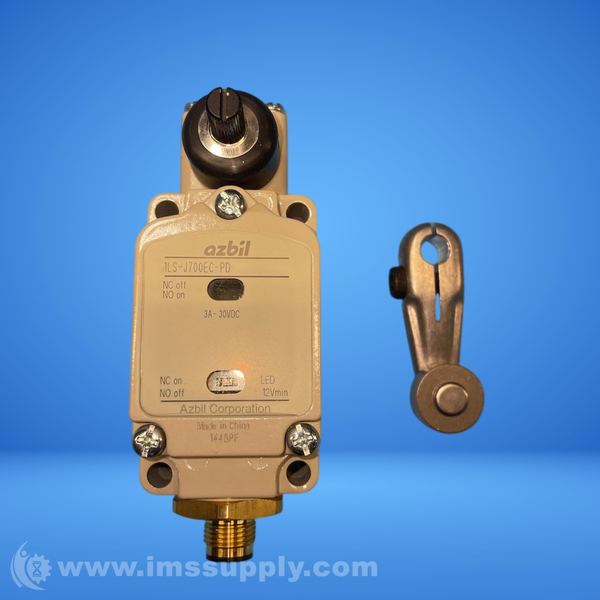

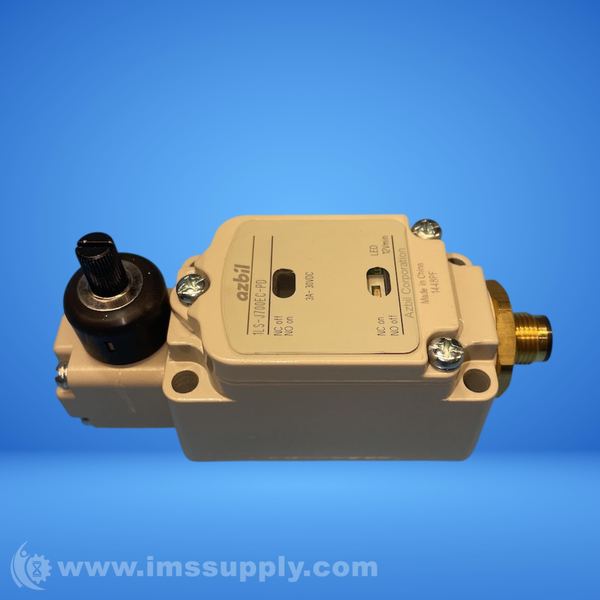

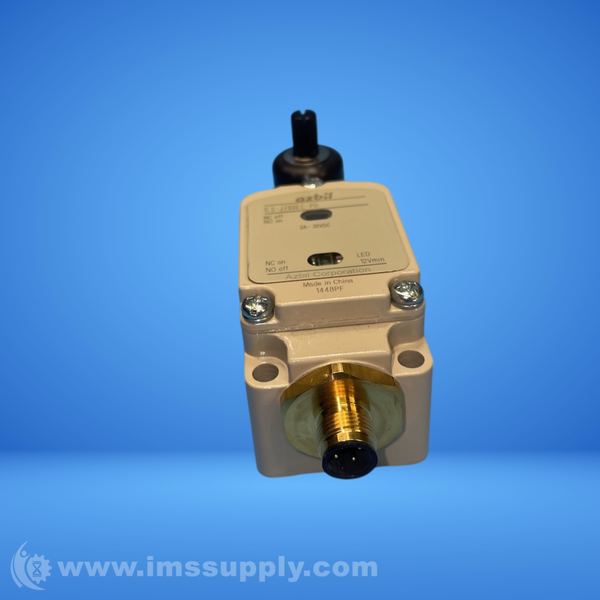

Azbil 1LS-J700EC-PD Limit Switch
General-purpose compact limit switch with roller lever, LED indicator, and connector. Rated for 30VDC and IP67 rated for oil, water, and dust resistance.
Specifications
- Rated Voltage: 30Vdc
- Max Operating Force: 13.4 N
- Max Pretravel: 20 degrees
- Max Total Travel: 50 degrees
- Terminal Types: M4 screw, DIN 4-pin connector, pre-leaded
- Rated Thermal Current: 10A (silver), 1A (gold-plated)
- Impulse Dielectric Strength: Withstands 5 times O.F. load for 1 minute
- Terminal Strength: Withstands 1.5N·m torque for 1 minute
- Certifications: UL/CSA/CE/CCC
- Material: Die-cast aluminum case
- Protection Rating: IP67
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 27 minutes.
