AZBIL 2LS1-JEC LIMIT SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: 2LS1-JEC
IMS Product Code: 2137814
Packaging: Sold Individually
Description:

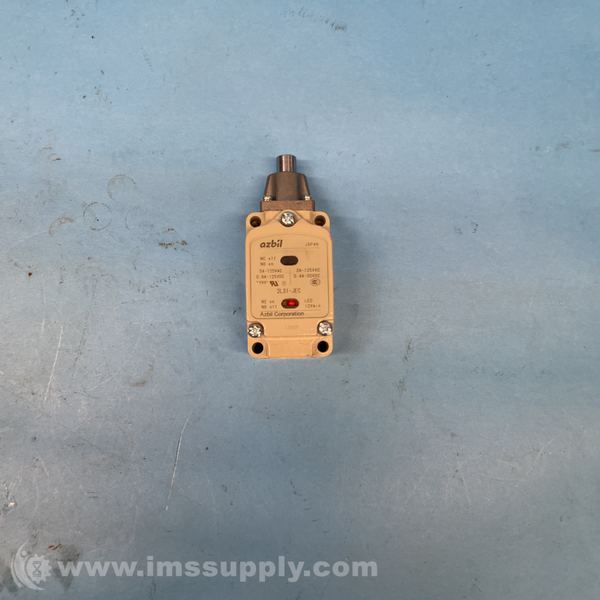

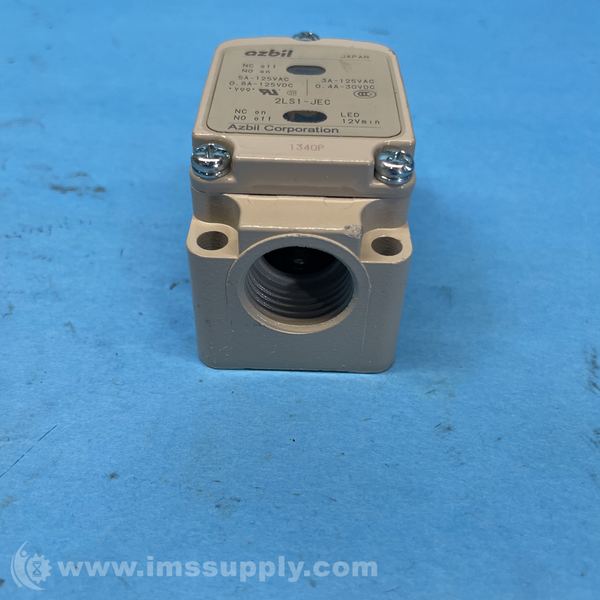

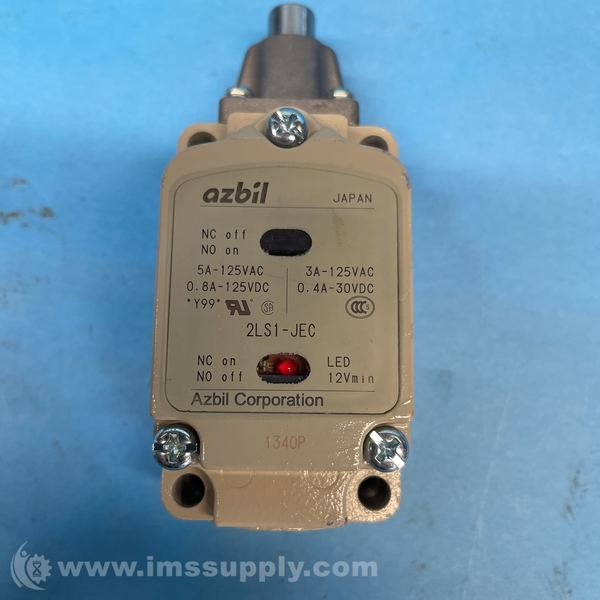

Azbil 2LS1-JEC Limit Switch
General purpose compact limit switch with plunger actuator, LED indicator, and IP67 protection.
Specifications
- max operating force: 26.7 N
- max pretravel: 1.7 mm
- min total travel: 8.1 mm
- operating voltage: 12 to 125 Vac/dc
- rated voltage: 120/240Vac, 30Vdc
- rated thermal current: 10A (silver), 1A (gold-plated)
- rated frequency: 45-65Hz and DC
- terminal types: M4 screw, DIN 4-pin connector, pre-leaded
- oil, water, and dust-proof (IP67): true
- operation position indicator: true
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 2 hours and 57 minutes.
