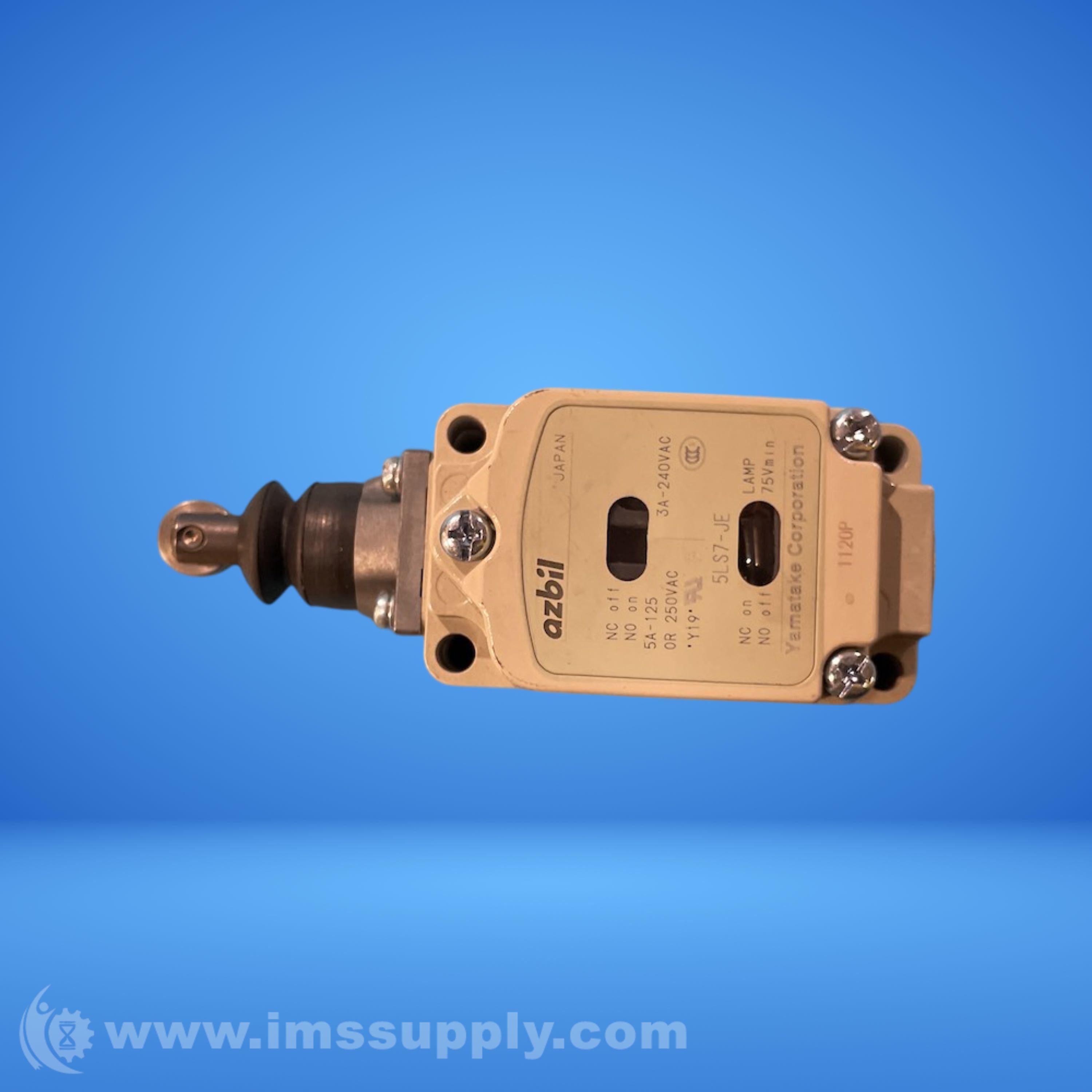

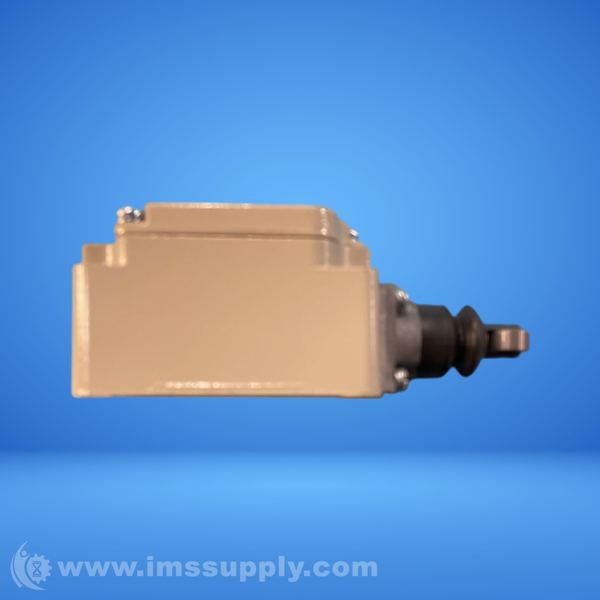

AZBIL 5LS7-JE LIMIT SWITCH
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: 5LS7-JE
IMS Product Code: 2143432
Packaging: Sold Individually
Description:
Azbil 5LS7-JE Limit Switch
General-purpose compact limit switch with roller plunger and neon lamp indicator, max operating force 15.7 N, IP67 protection.
Specifications
- max operating force: 15.7 N
- max pretravel: 1.7 mm
- min total travel: 7.3 mm
- voltage: 100/200 Vac
- rated voltage: 120/240Vac, 30Vdc
- rated thermal current: 10A (silver), 1A (gold-plated)
- rated frequency: 45-65Hz and DC
- terminal types: M4 screw, DIN 4-pin connector, pre-leaded
- UL/CSA/CE/CCC Certified: Yes
- Rugged die-cast aluminum case: Yes
- Oil, water, and dust-proof (IP67): Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
