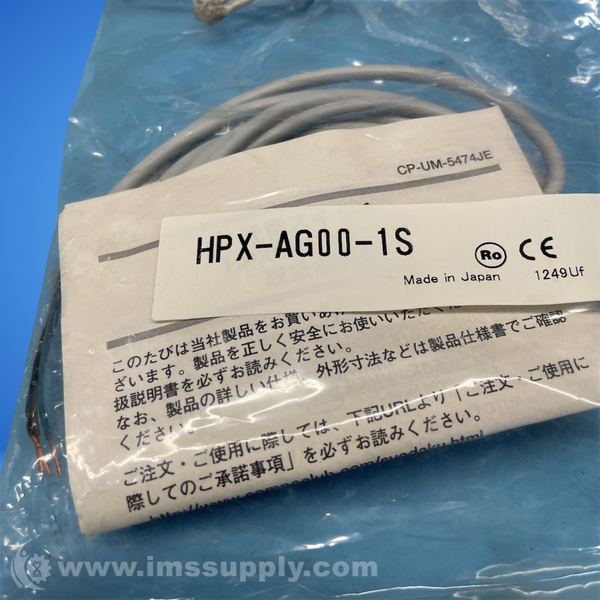

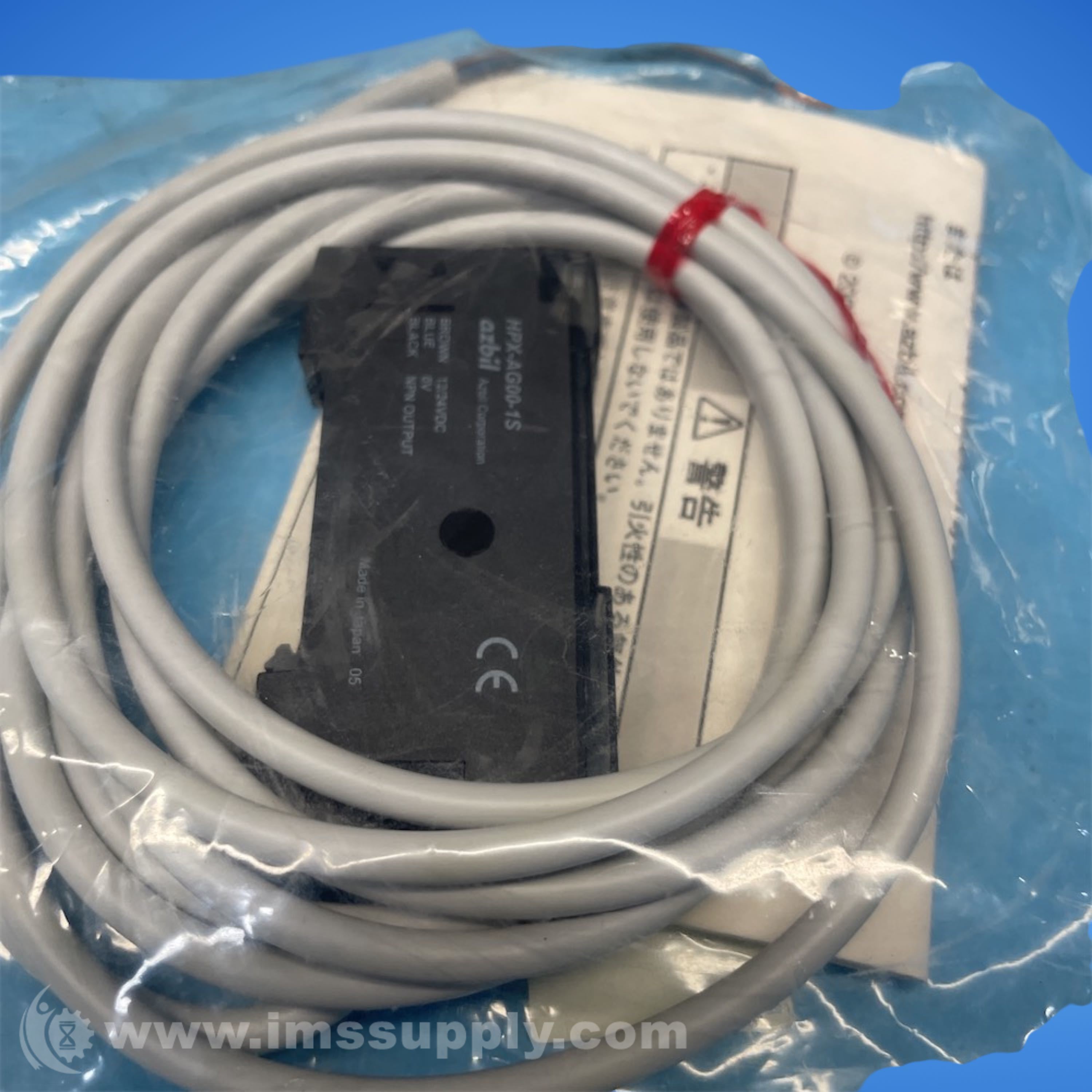

AZBIL HPX-AG00-1S FIBER OPTIC SENSOR
Quick Overview
Manufactured By: AZBIL
Manufacturer Part Number: HPX-AG00-1S
IMS Product Code: 2134611
Packaging: Sold Individually
Description:
Azbil HPX-AG00-1S Fiber Optic Sensor
Digital Fiber-Optic Sensor with dual digital display, Auto Power Control, and advanced timer functions
Specifications
- Supply Voltage: 12 to 24 Vdc ±10%
- Current Consumption: 750 mW max. (500 mW in sleep mode)
- Operation Modes: Light-ON / Dark-ON (switchable)
- Control Output Types: NPN/PNP transistor open collector
- Switching Current: Up to 100mA (varies by output type)
- Response Time: 50 µs to 5 ms (selectable)
- Light Emitter: Red LED
- Ambient Light Immunity: Up to 5,000 lux (incandescent), 20,000 lux (sunlight)
- Operating Temperature: -20 to +55°C
- Storage Temperature: -40 to +70°C
- Humidity: 35 to 85% (no condensation)
- Vibration Resistance: 10 to 55 Hz, 1.5 mm amplitude
- Shock Resistance: 500 m/s² in X, Y, Z directions
- Protection Features: Reverse connection, output short-circuit, and power-on malfunction prevention circuits
- Detection Distance: Up to 1,200 mm
- Wiring Configuration: Brown Wire: +12–24 VDC, Blue Wire: 0 V, Black Wire: NPN Output
- Digital Display: Front-panel digital indicator and tactile function keys
- Made in Japan
- RoHS Compliant
- CE Marked
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
