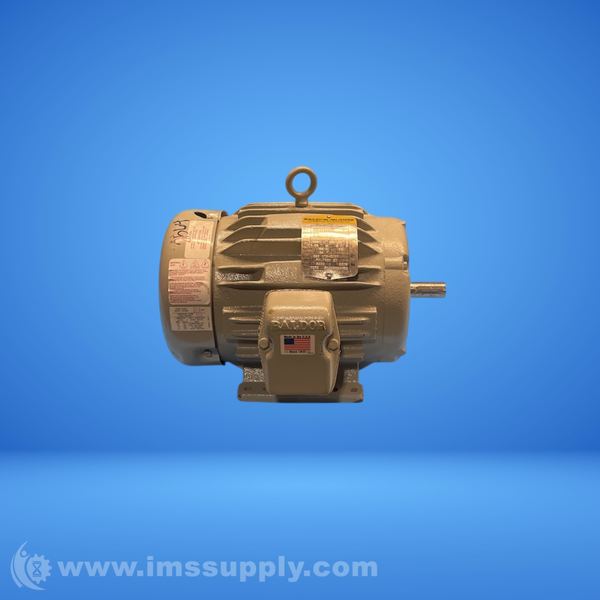

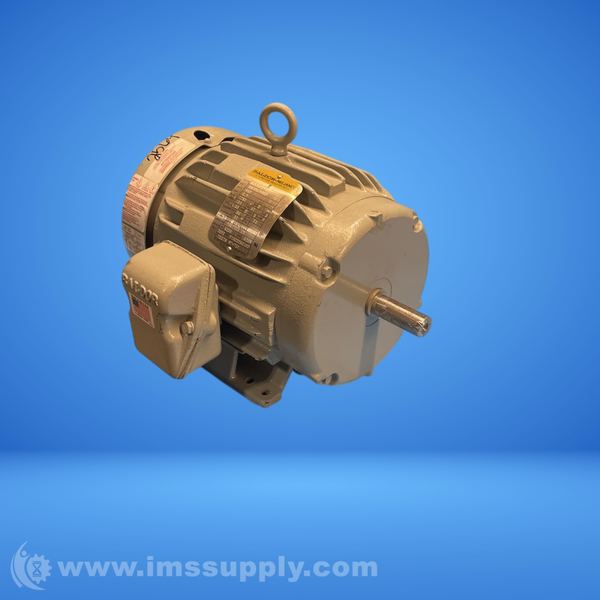

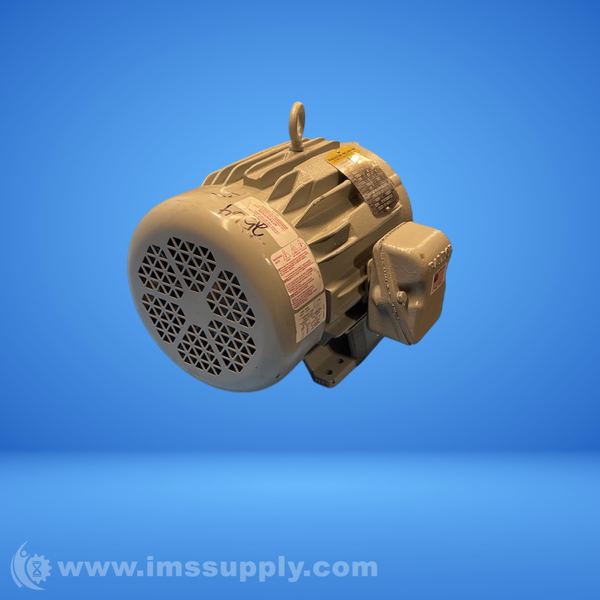

BALDOR AEM3689-4 2HP MOTOR
Quick Overview
Manufactured By: BALDOR ELECTRIC
Manufacturer Part Number: AEM3689-4
IMS Product Code: 2154000
Packaging: Sold Individually
Description:
Baldor AEM3689-4 2HP Motor
2HP, 1760RPM, 3PH, 60HZ, 184 Frame, TEFC Enclosure
Specifications
- Catalog Number: AEM3689-4
- Enclosure: TEFC
- Frame: 184
- Frame Material: Cast Iron
- Frequency: 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 2.000 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 460.0 V @ 60 HZ
- Current @ Voltage: 2.700 A @ 460.0 V
- Design Code: B
- Duty Rating: CONT
- Efficiency @ 100% Load: 88.5 %
- Insulation Class: F
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 14.74 IN
- Power Factor: 77
- Pulley End Bearing Type: Ball
- Service Factor: 1.00
- Shaft Diameter: 0.875 IN
- Speed: 1760 rpm
- Starting Method: Direct on line
- Weight: 95 lbs
- Mounting Type: Foot
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
