BALDOR JM3115 1HP 3PH MOTOR
Quick Overview
Manufactured By: BALDOR ELECTRIC
Manufacturer Part Number: JM3115
IMS Product Code: 2154711
Packaging: Sold Individually
Description:

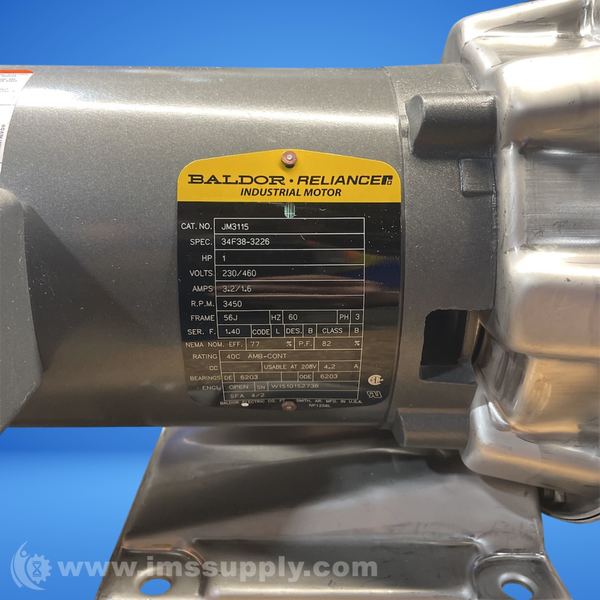

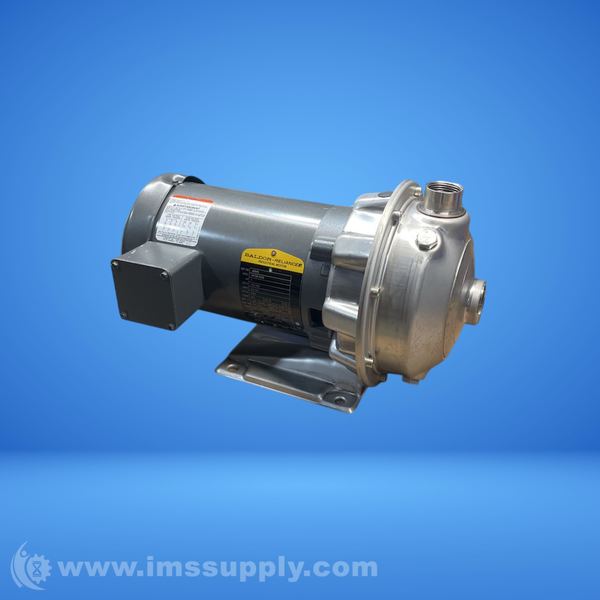

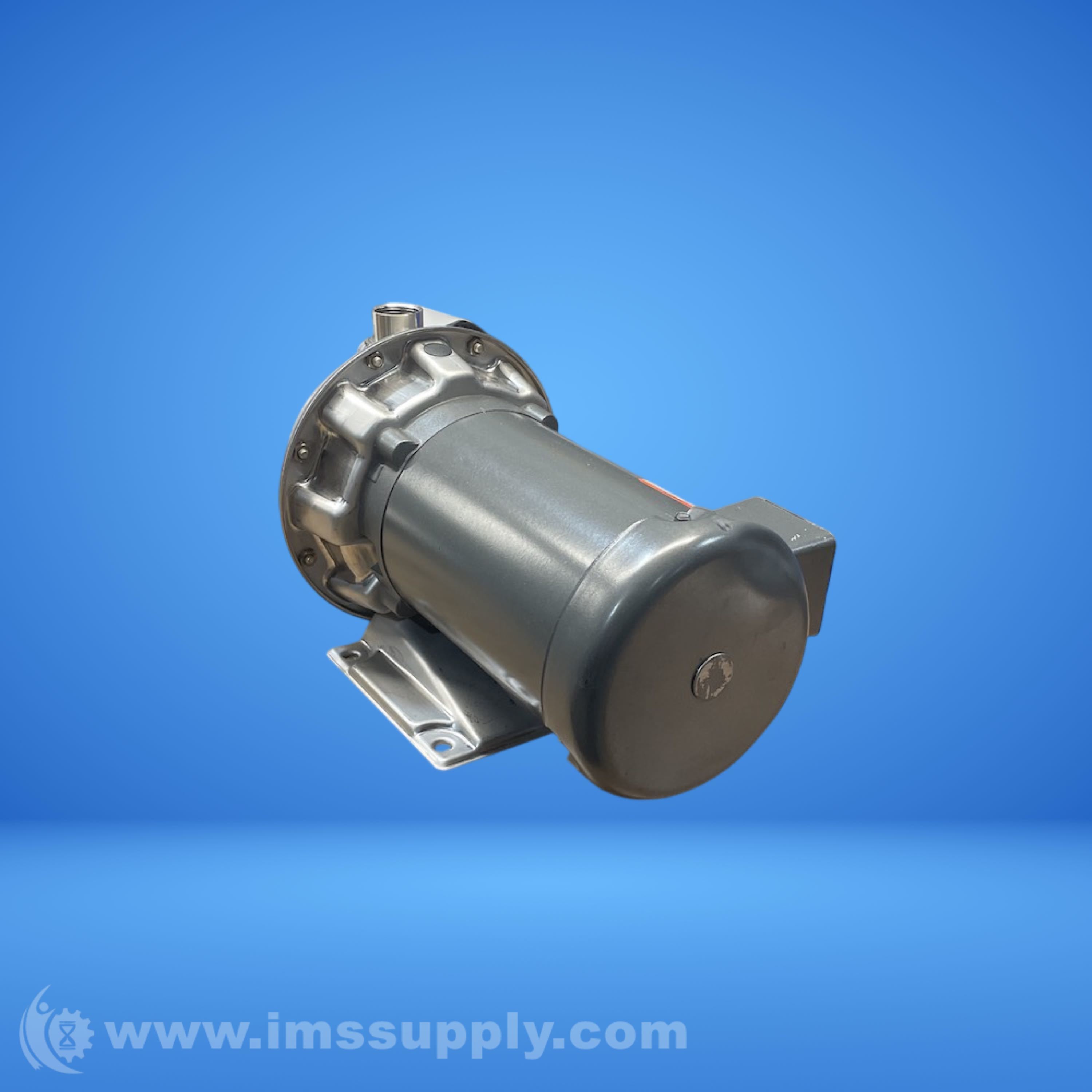

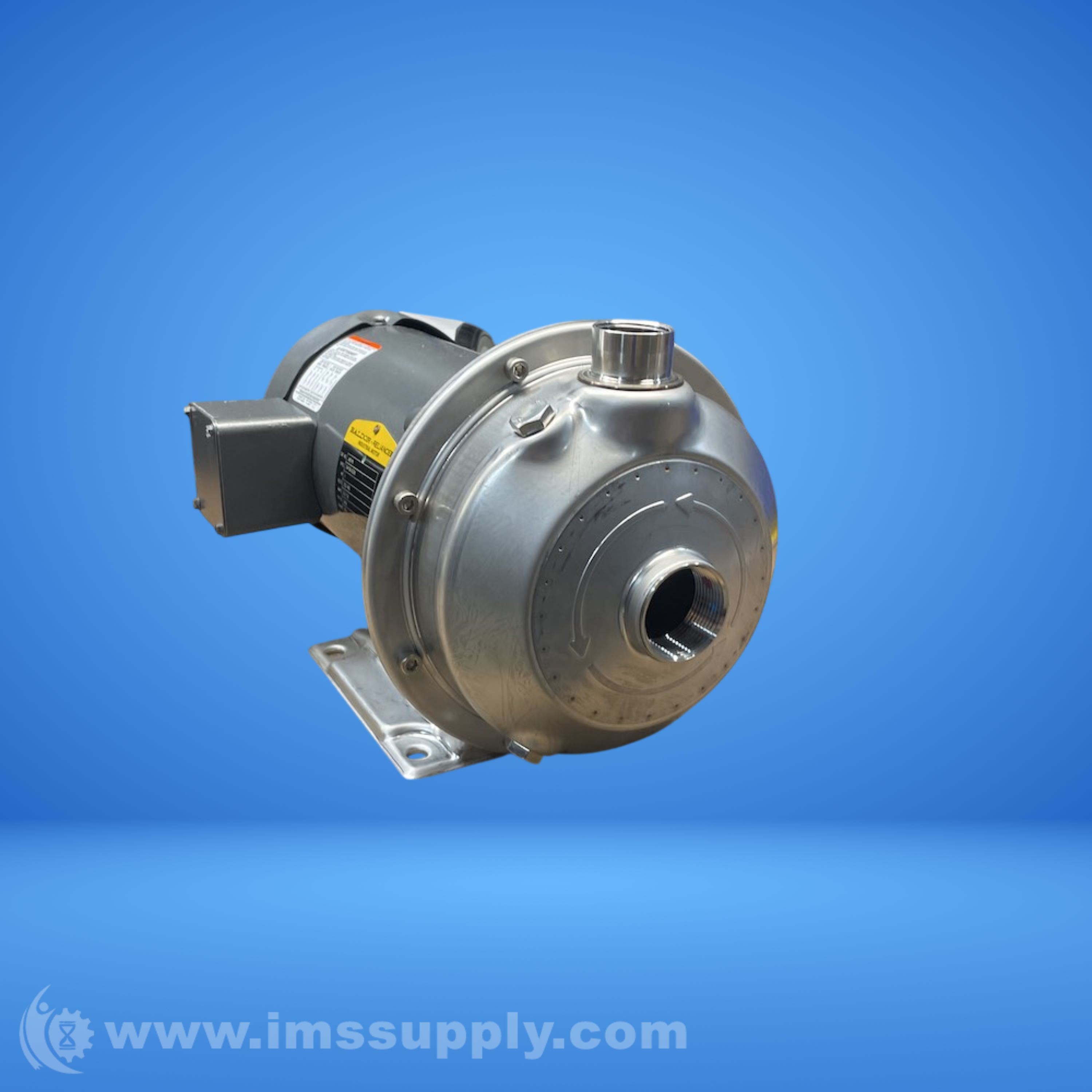

Baldor JM3115 1HP 3PH Motor
1 HP, 3450 RPM, 3 Phase, 60 Hz, 56J Frame, Open Drip-Proof Enclosure, Steel Frame, C-Face Mount
Specifications
- Catalog Number: JM3115
- Frame: 56J
- Frequency: 60 Hz
- Phase: 3
- Voltage @ Frequency: 230 V @ 60 Hz, 460 V @ 60 Hz
- Enclosure: ODP
- Frame Material: Steel
- Motor Type: 3420M
- Mounting Arrangement: F1
- Number of Poles: 2
- Speed: 3450 RPM
- Synchronous Speed @ Frequency: 3600 RPM @ 60 Hz
- Current @ Voltage: 3.2 A @ 230 V, 1.6 A @ 460 V
- Efficiency @ 100% Load: 77%
- Power Factor: 82
- Service Factor: 1.4
- Shaft Diameter: 0.625 in
- Overall Length: 12.34 in
- Pulley Face Code: C-Face
- Insulation Class: B
- Design Code: B
- Drip Cover: Drip Cover
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Motor Lead Termination: Flying Leads
- Starting Method: Direct On Line
- Rotation: Reversible
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
