BALDOR 84Z04010 2HP TEFC MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: 84Z04010
IMS Product Code: 2142628
Packaging: Sold Individually
Description:

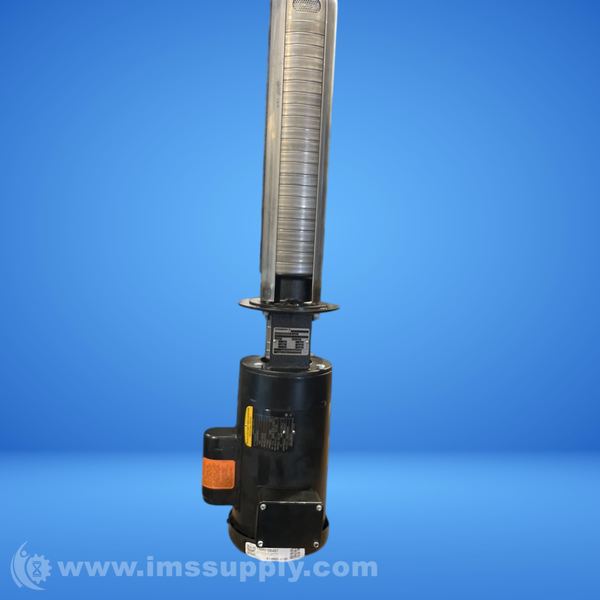

Baldor 84Z04010 2HP TEFC Motor

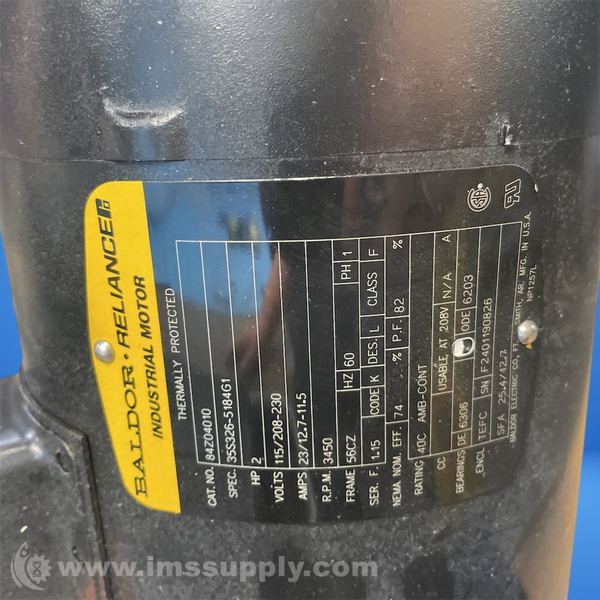

2HP, 3450RPM, 1Phase, 115/208-230V, TEFC, 56CZ Frame
Specifications
- HP: 2
- Hz: 60
- Phase: 1
- Speed (RPM): 3450
- Voltage: 115/208/230
- Motor Enclosure Type: TEFC - Totally Enclosed Fan Cooled
- Motor Frame Size: 56CZ
- Shaft diameter: 0.63 in
- Length of shaft end: 1.88 in
- Cooling: TEFC
- Maximum ambient temperature: 104 F
- Flange size for motor: 56C
- Rated power - P2: 2 HP
- Main frequency: 60 Hz
- Rated voltage: 1 x 115/208-230 V
- Service factor: 1.15
- Rated current: 23,0/12,7-11,5 A
- Rated speed: 3450 rpm
- Motor efficiency at full load: 74 %
- Number of poles: 2
- Enclosure class (IEC 34-5): TEFC
- Insulation class (IEC 85): F
- Net weight: 49.4 lb
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
