BALDOR C00611-11 3/4HP AC MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: C00611-11
IMS Product Code: 2178929
Packaging: Sold Individually
Description:

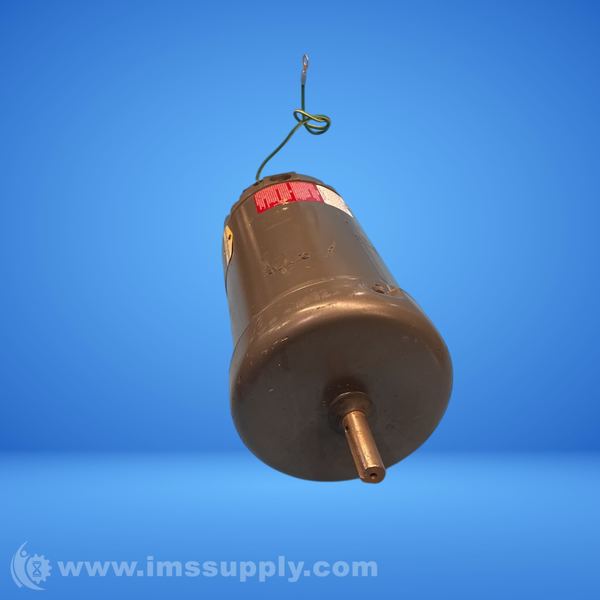

Baldor C00611-11 3/4HP AC Motor
Industrial AC motor with 3/4 HP rated load, base-mounted design, and reversible operation. Features induction/asynchronous technology with a keyed shaft.
Specifications
- Rated Load (HP): 1
- Base RPM: 1140
- Insulation Class: F (Max 311 degrees F)
- Service Factor: 1.15
- Full Load Amps: 4/2
- NEMA Design Letter: Design B (General Purpose)
- Nominal Rated Input Voltage: 460 V, 230 V, 380 V, 208 V
- Actual Rated Input Voltage: 208-230/460 V
- AC Frequency Rating: 60 Hz
- Enclosure Type: Open
- Shaft Diameter: 5/8 in
- AC Phase: Three Phase
- Current Type: AC
- Mounting Type: Base-Mounted
- Reversible/Non-Reversible: Reversible
- AC Motor Type: Induction/Asynchronous
- Shaft Type: Keyed
Used (Special):

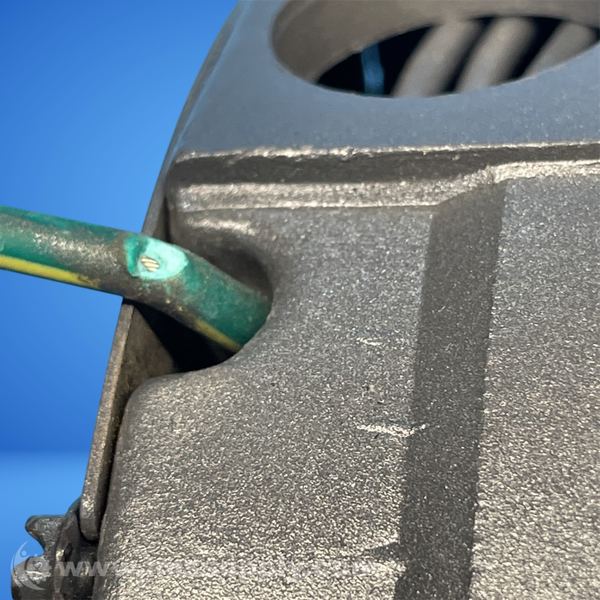

Item has a cord attached seems to be cut
