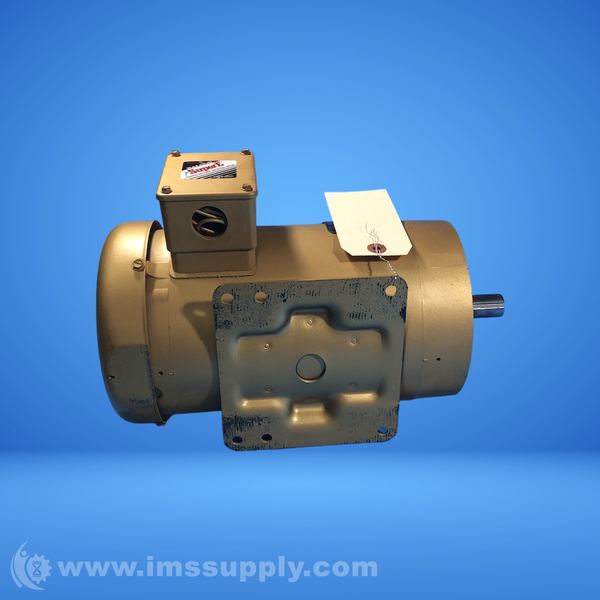

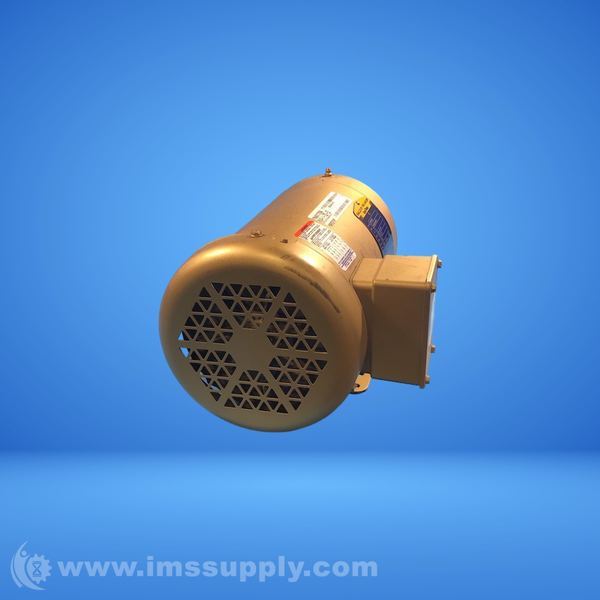

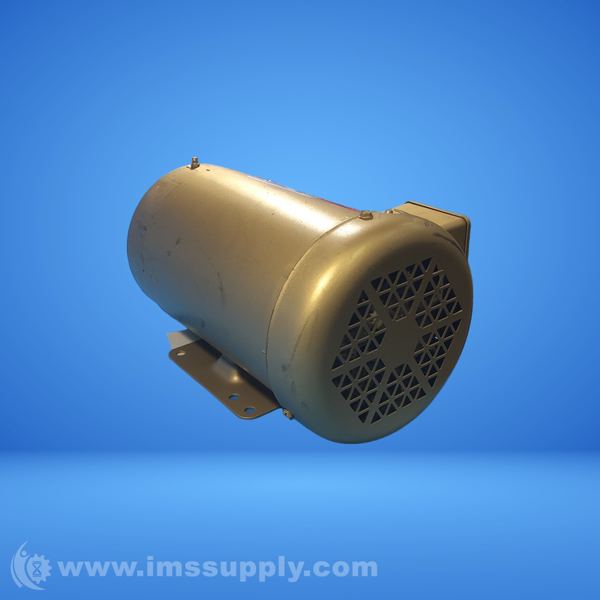

BALDOR CEM3558T 2HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: CEM3558T
IMS Product Code: 2027491
Packaging: Sold Individually
Description:
Baldor CEM3558T 2HP Motor
2 hp, 1800 rpm, 3 ph, 230/460 V, 145TC Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, C-Face / Foot Mount, Continuous Duty

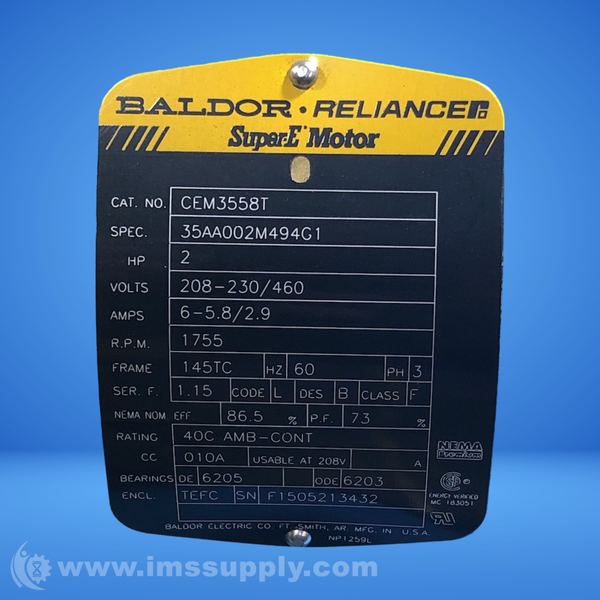

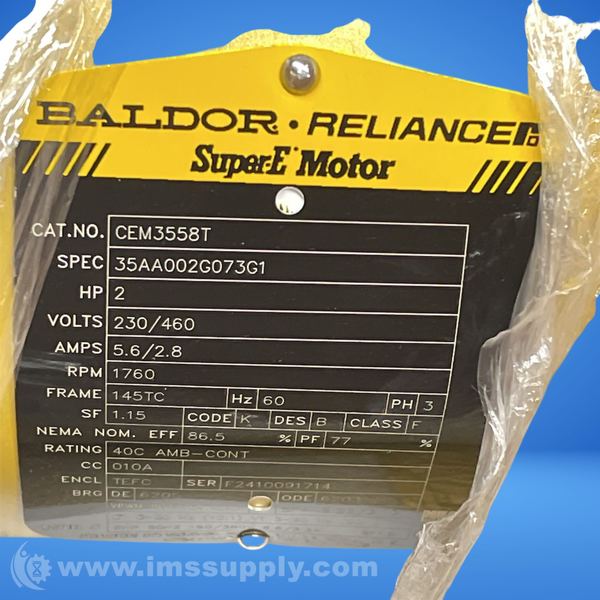

Specifications
- Catalog Number: CEM3558T
- Enclosure: TEFC
- Frame: 145TC
- Frame Material: Steel
- Frequency: 60 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 2 HP @ 60 Hz
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
- Voltage @ Frequency: 460 V @ 60 Hz, 230 V @ 60 Hz
- Ambient Temperature: 40 degrees C
- Duty Rating: CONT
- Efficiency @ 100% Load: 86.5 %
- Insulation Class: F
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 13.29 IN
- Power Factor: 77
- Service Factor: 1.15
- Shaft Diameter: 0.875 IN
- Speed: 1760 rpm
- Motor Type: 3528M
- Motor Standards: NEMA
- Starting Method: Direct on line
- Weight: 46 lbs

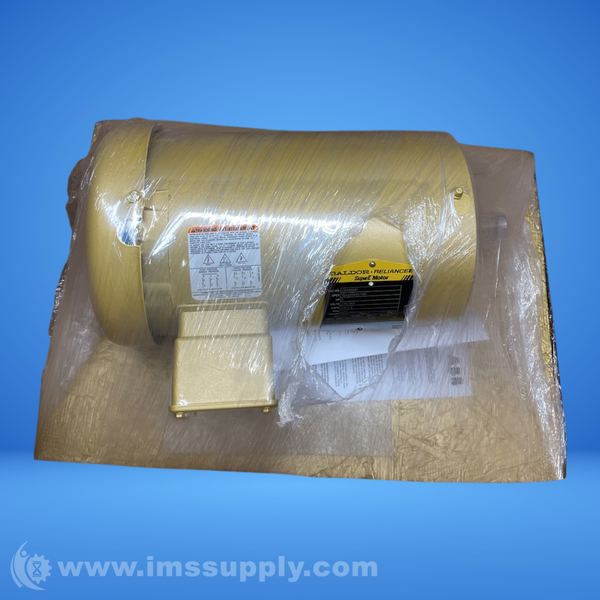

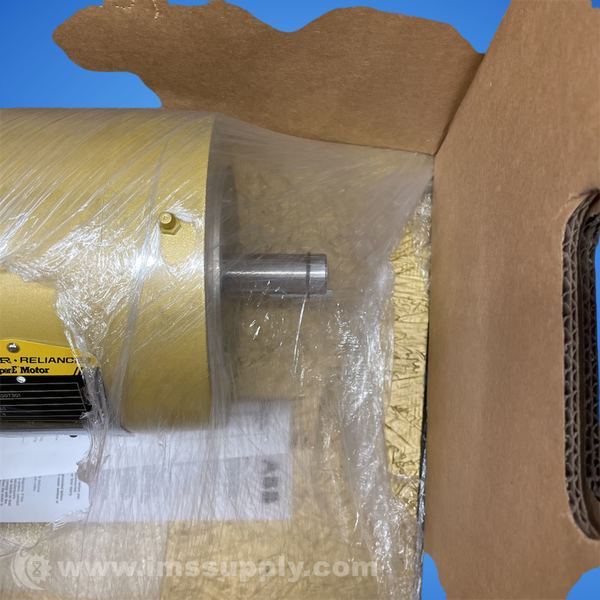

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
