BALDOR CM3538 0.5 HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: CM3538
IMS Product Code: 2149880
Packaging: Sold Individually
Description:

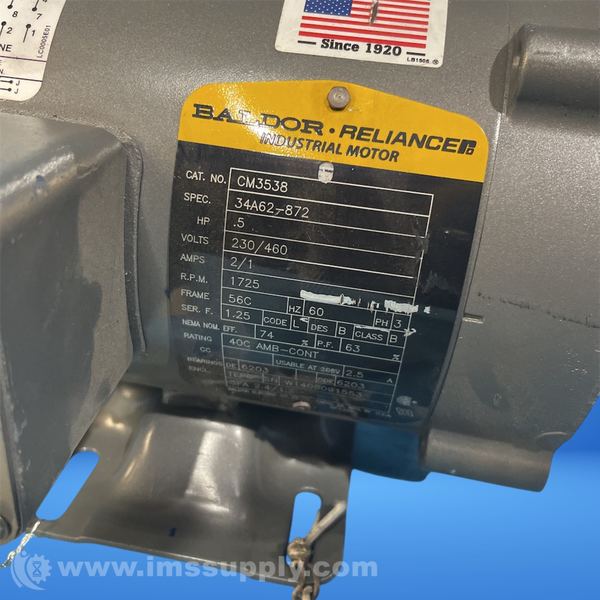

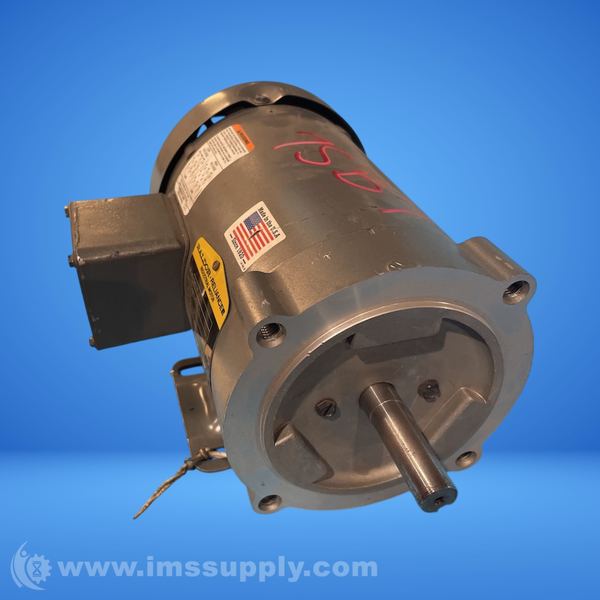

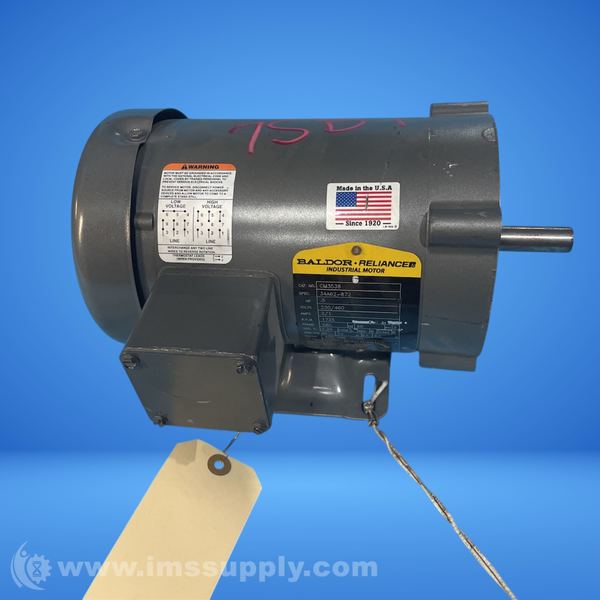

Baldor CM3538 0.5 HP Motor
Three-phase industrial motor with 0.5 HP output at 1725 RPM, 230/460V, 56C frame, TEFC enclosure, and C-face/foot mounting.
Specifications
- Motor Horsepower: 0.5 hp
- Motor Phase: 3
- Synchronous Rpm: 1800 rpm
- Motor Supply Voltage: 230/460 V
- Frame Size: 56C
- Enclosure Type: TEFC
- Frequency Rating: 60 Hz
- Base RPM: 1725 rpm
- Duty Condition Type: Continuous Duty
- Mounting Type: C-Face / Foot
- Full Load Current: 1.0 A @ 460V
- Full Load Efficiency: 74%
- Shaft Diameter: 0.625 in
- Overall Length: 11.35 in
- Type Of Bearing: Ball
- NEMA Design Class: B
- Service Factor: 1.25
- Frame Material: Steel
- Insulation Class: B
- Weight: 23 lbs
