BALDOR CM3542 0.75HP 3PH MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: CM3542
IMS Product Code: 1788551
Packaging: Sold Individually
Description:

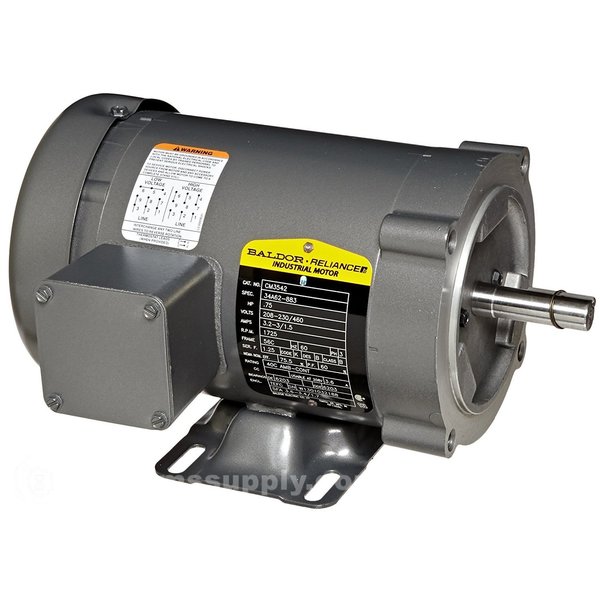

Baldor CM3542 0.75HP 3PH Motor
Three phase industrial motor with 0.75 horsepower output at 1725 RPM.
Specifications
- Catalog Number: CM3542
- Enclosure: TEFC
- Frame: 56C
- Frame Material: Steel
- Frequency: 60 Hz
- Phase: 3
- Speed: 1725 rpm
- Voltage @ Frequency: 208.0 V @ 60 Hz, 230.0 V @ 60 Hz, 460.0 V @ 60 Hz
- Current @ Voltage: 1.500 A @ 460.0 V, 3.000 A @ 230.0 V, 3.200 A @ 208.0 V
- Duty Rating: CONT
- Efficiency @ 100% Load: 75.5 %
- Power Factor: 64
- Service Factor: 1.25
- Shaft Diameter: 0.625 IN
- Overall Length: 11.35 IN
- NEMA Design Class: B
- Insulation Class: B
- Weight: 26 lbs
