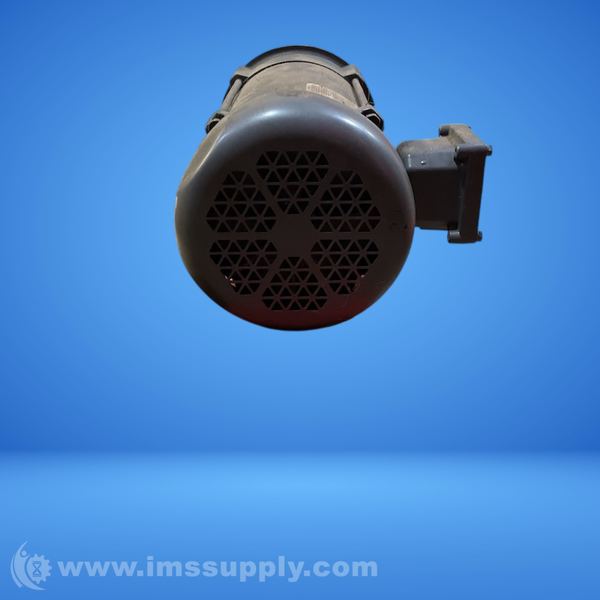

BALDOR CM7072T 3/5HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: CM7072T
IMS Product Code: 2178250
Packaging: Sold Individually
Description:
Baldor CM7072T 3/5HP Motor
3/5HP, 2900/3465RPM, 3PH, 50/60HZ, 184TC

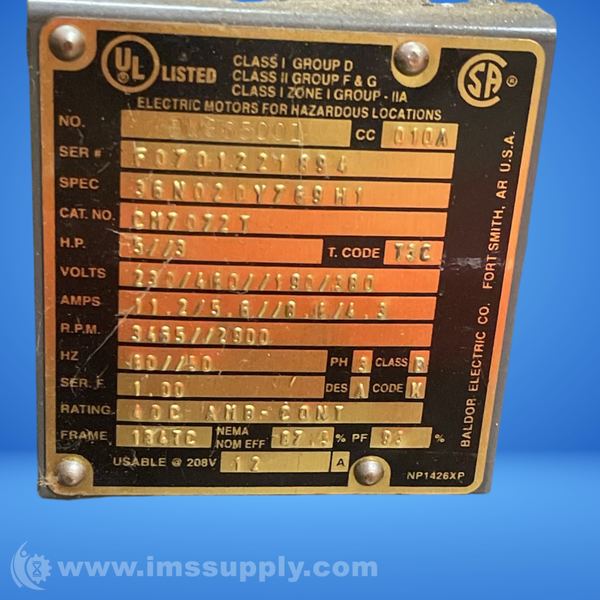

Specifications
- Catalog Number: CM7072T
- Enclosure: TEFC
- Frame: 184TC
- Frame Material: Steel
- Frequency: 50.00 Hz, 60.00 Hz
- Motor Letter Type: Three Phase
- Output @ Frequency: 3.000 HP @ 50 HZ, 5.000 HP @ 60 HZ
- Phase: 3
- Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
- Voltage @ Frequency: 380.0 V @ 50 HZ, 230.0 V @ 60 HZ, 190.0 V @ 50 HZ, 460.0 V @ 60 HZ
- Haz Area Class and Group: CLI GP D; CLII GP F,G
- Haz Area Division: Division I
- Agency Approvals: UL, CSA
- Ambient Temperature: 40 degrees C
- Auxiliary Box: NO AUXILLARY BOX
- Duty Rating: CONT
- Efficiency @ 100% Load: 87.5 %
- Insulation Class: B
- KVA Code: K
- Locked Bearing Indicator: Locked Bearing
- Motor Lead Termination: Flying Leads
- Mounting Arrangement: F1
- Number of Poles: 2
- Overall Length: 18.86 IN
- Power Factor: 93
- Shaft Diameter: 1.125 IN
- Speed: 2900 rpm, 3465 rpm
- Starting Method: Direct on line
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 14 hours and 5 minutes.
