BALDOR EM2334T 20HP 3PH TEFC MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: EM2334T
IMS Product Code: 1984436
Packaging: Sold Individually
Description:

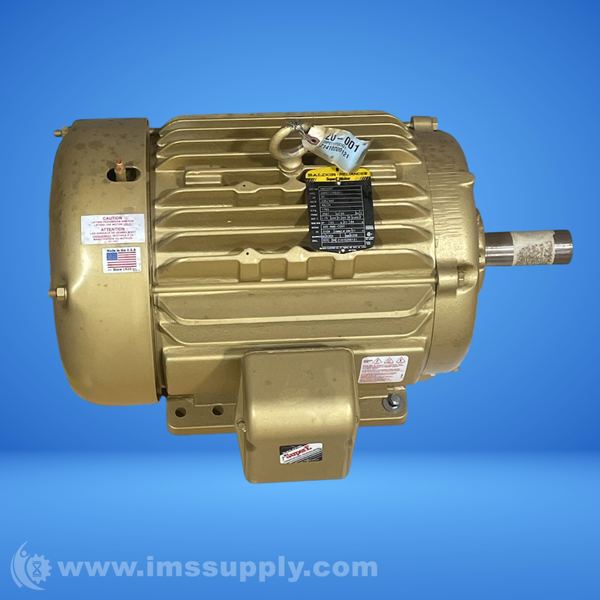

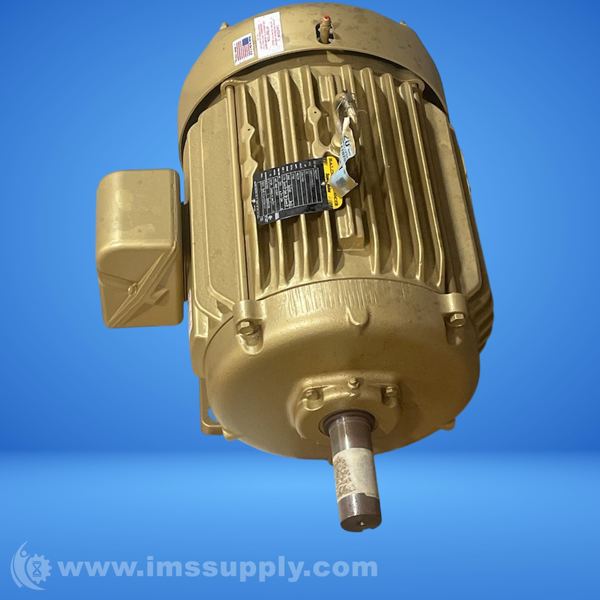

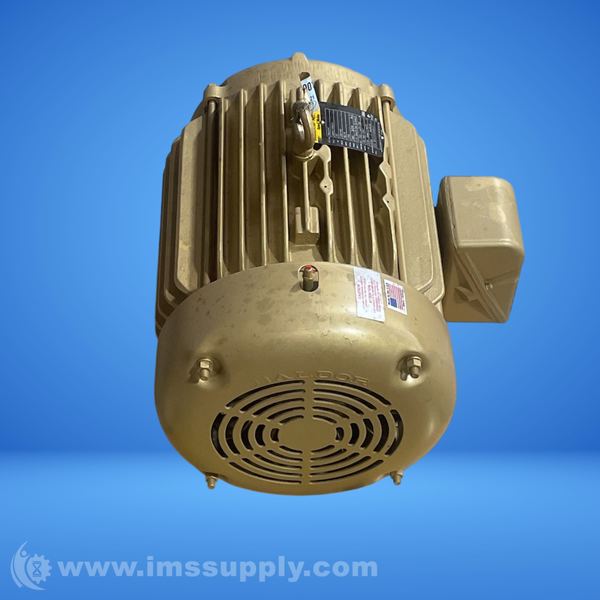

Baldor EM2334T 20HP 3PH TEFC Motor
20 hp, 1800 rpm, 3 ph, 230/460 V, 256T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1770 rpm Base, Foot Mount, Continuous Duty

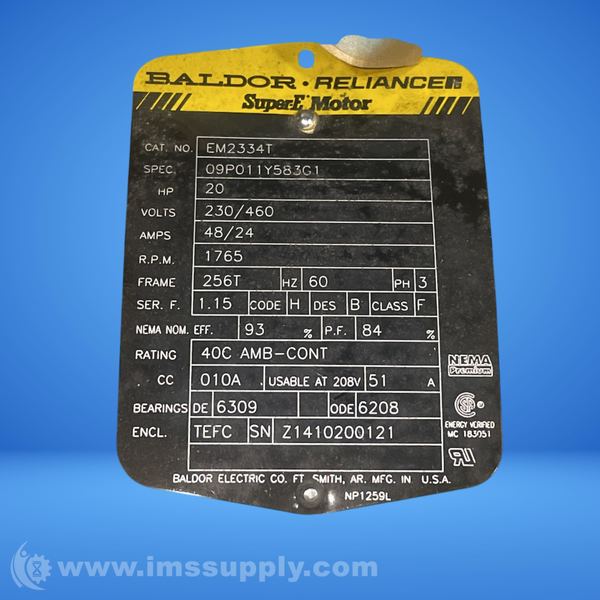

Specifications
- Product Family: General Purpose
- Catalog Number: EM2334T
- Frame: 256T
- Enclosure: TEFC
- Frequency: 60.00 Hz
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Voltage @ Frequency: 230.0 V @ 60 HZ460.0 V @ 60 HZ
- Current @ Voltage: 24.000 A @ 460.0 V48.000 A @ 230.0 V52.000 A @ 208.0 V
- Design Code: A
- Duty Rating: CONT
- Efficiency @ 100% Load: 93.0 %
- Insulation Class: F
- Service Factor: 1.15
- KVA Code: J
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 23.36 IN
- Power Factor: 83
- Speed: 1770 rpm
- Shaft Diameter: 1.625 IN
- Shaft Extension Location: Pulley End
- Shaft Rotation: Reversible
- Frame Material: Iron
- Type Of Bearing: Ball
- NEMA Design Class: B
- Starting Method: Direct on line
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
