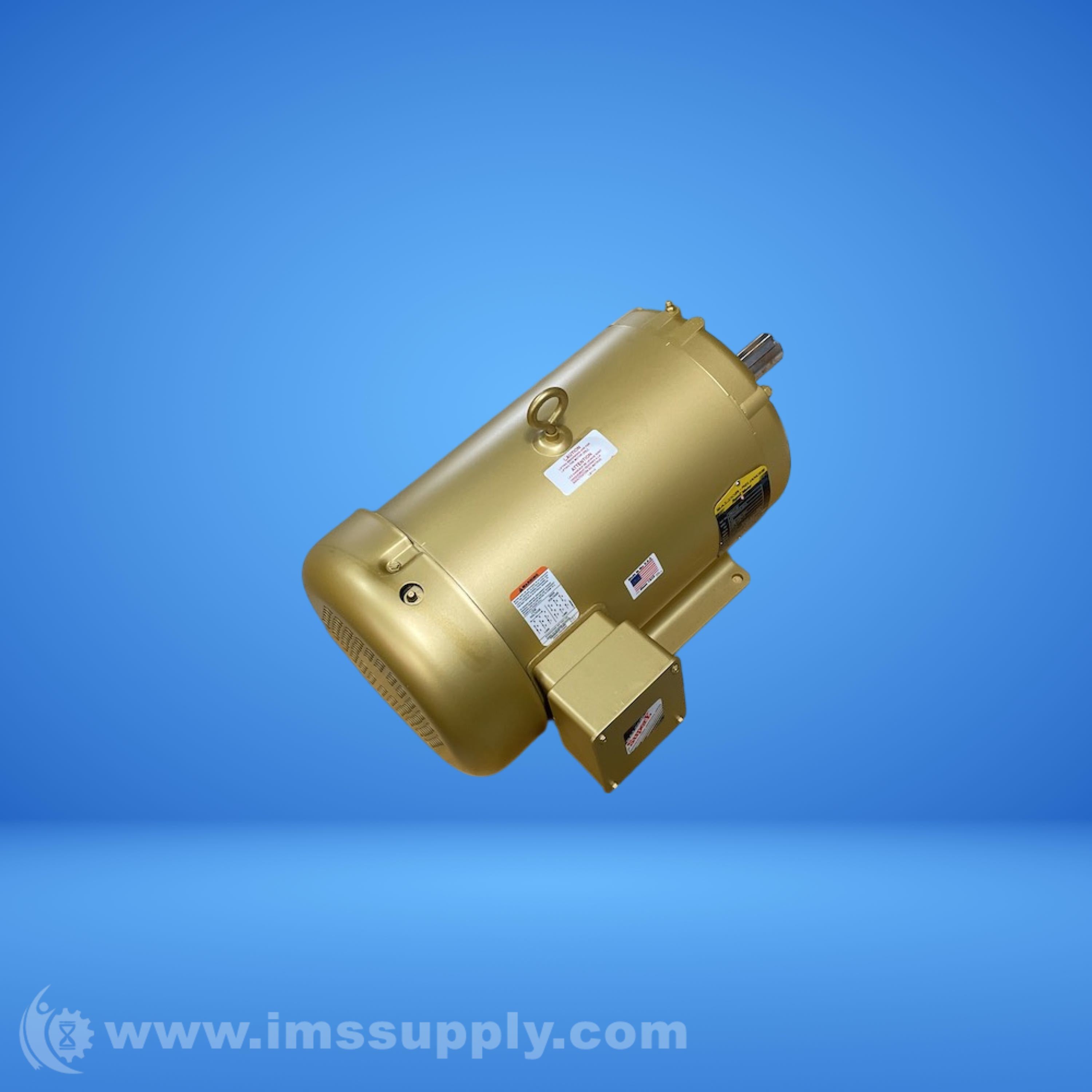

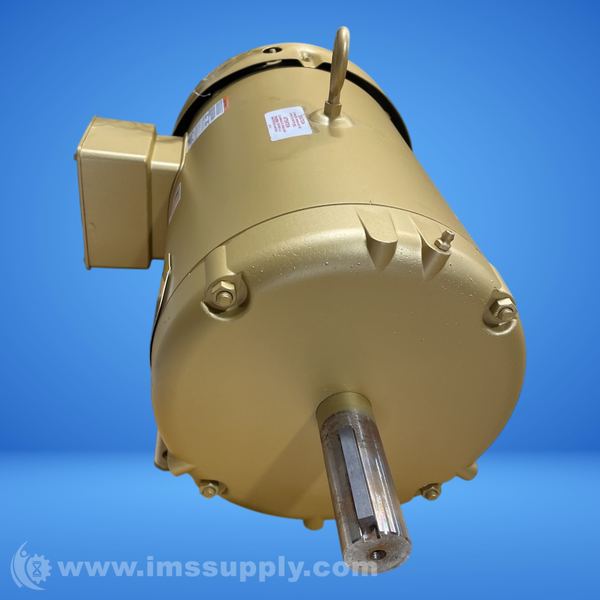

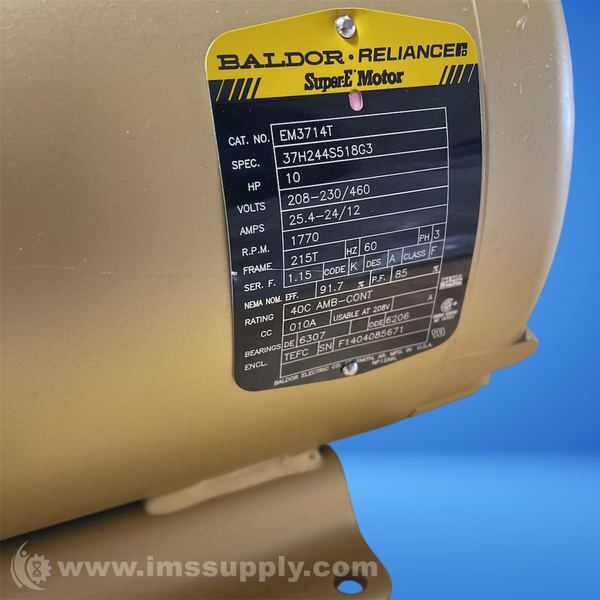

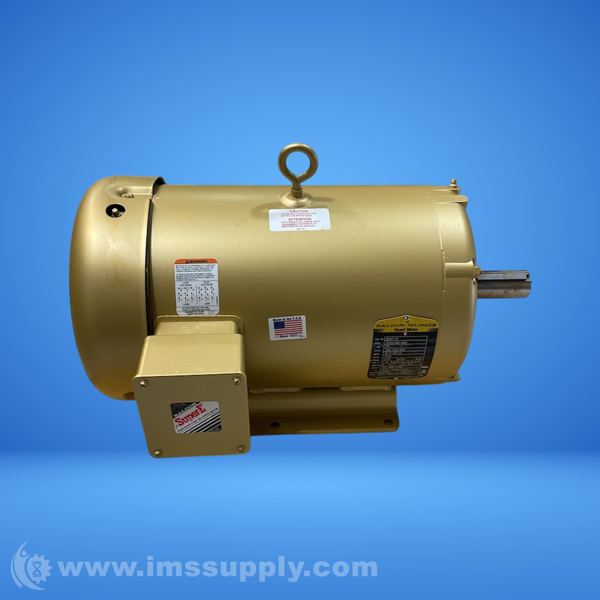

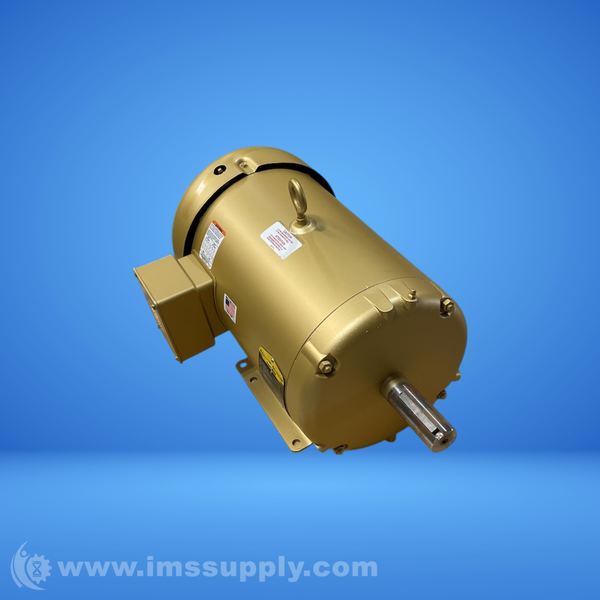

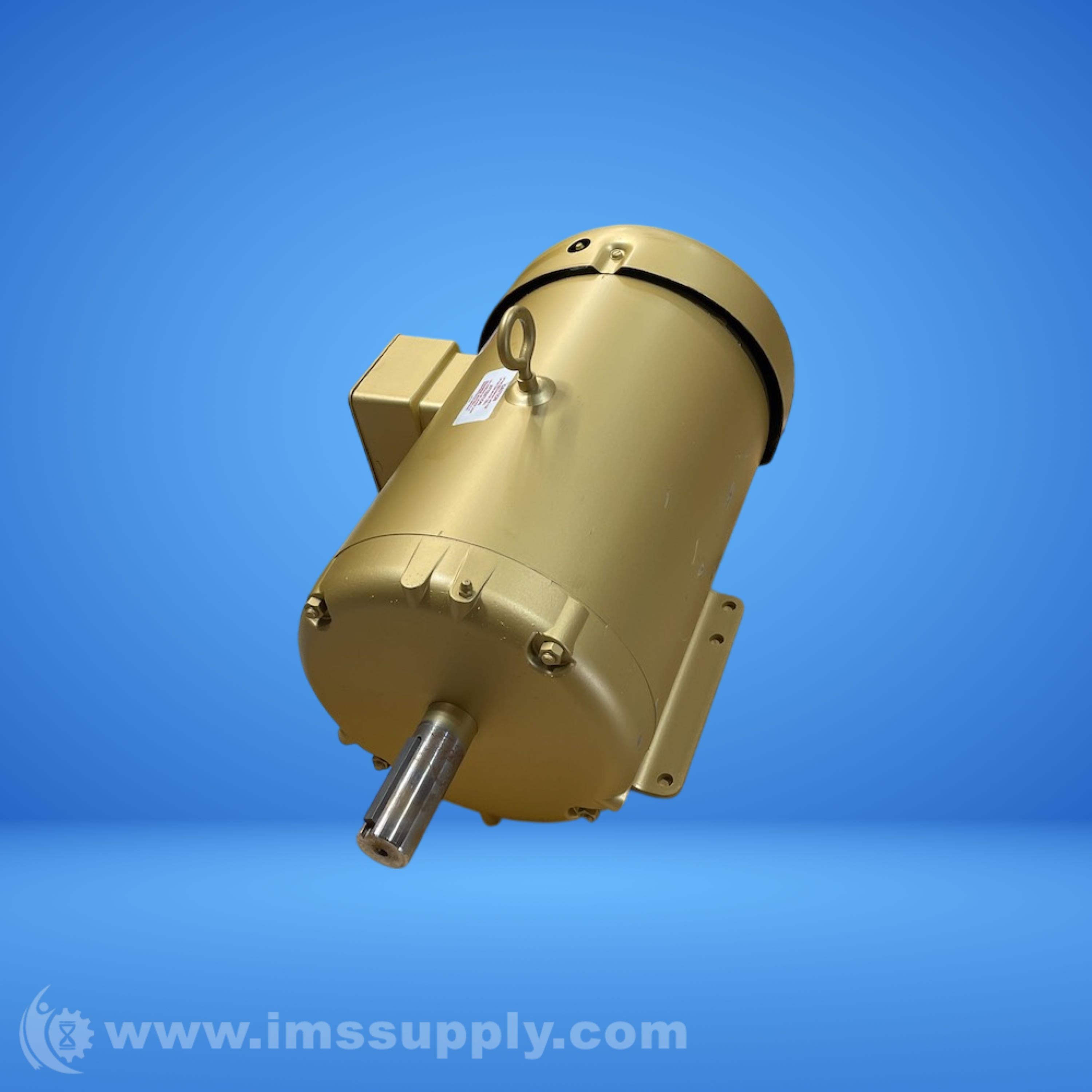

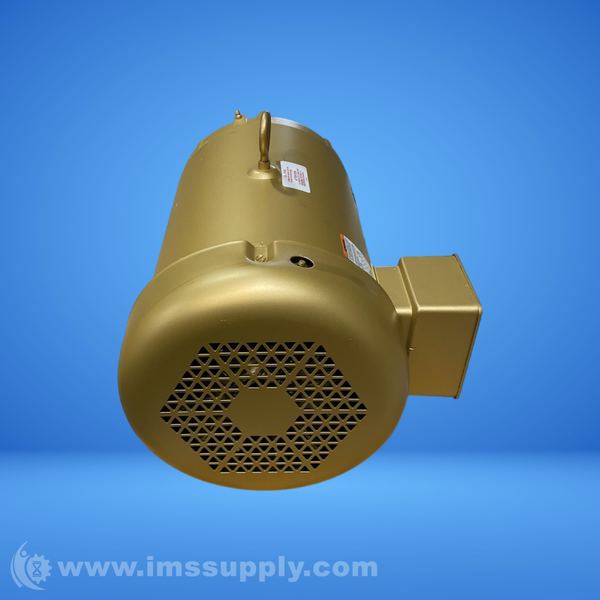

BALDOR EM3714T 10HP 3PH MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: EM3714T
IMS Product Code: 1800891
Packaging: Sold Individually
Description:
Baldor EM3714T 10HP 3PH Motor
Three Phase AC Motor, 10 HP, 1770 RPM, 230/460 V, 215T Frame, TEFC Enclosure, 60 Hz, Continuous Duty
Specifications
- Catalog Number: EM3714T
- Enclosure: TEFC
- Frame: 215T
- Frame Material: Steel
- Frequency: 60 Hz
- Phase: 3
- Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
- Voltage @ Frequency: 460 V @ 60 Hz, 230 V @ 60 Hz
- Agency Approvals: CURUSEEV, NEMA_PREMIUM
- Ambient Temperature: 40 degrees C
- Current @ Voltage: 25 A @ 230 V, 12.5 A @ 460 V
- Design Code: A
- Duty Rating: Continuous
- Efficiency @ 100% Load: 91.7 %
- Insulation Class: F
- KVA Code: K
- Mounting Arrangement: F1
- Number of Poles: 4
- Overall Length: 20.52 in
- Power Factor: 85
- Service Factor: 1.15
- Shaft Diameter: 1.375 in
- Speed: 1770 RPM
- Motor Standards: NEMA
- Starting Method: Direct On Line

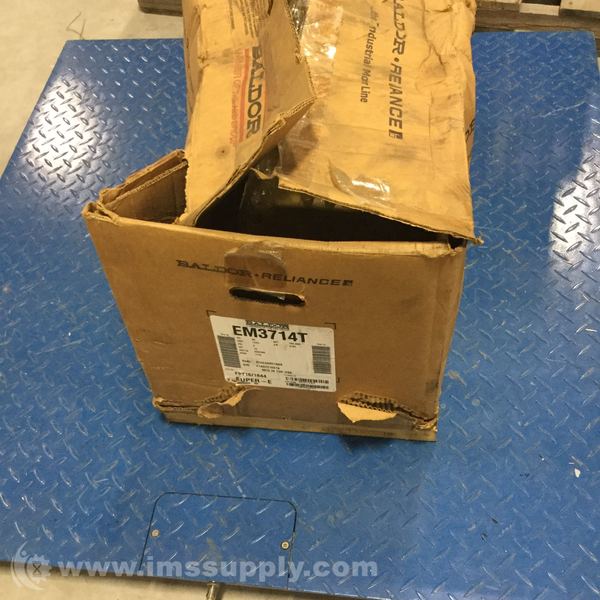

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 5 minutes.
