BALDOR EM4108T-5 30 HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: EM4108T-5
IMS Product Code: 2136758
Packaging: Sold Individually
Description:

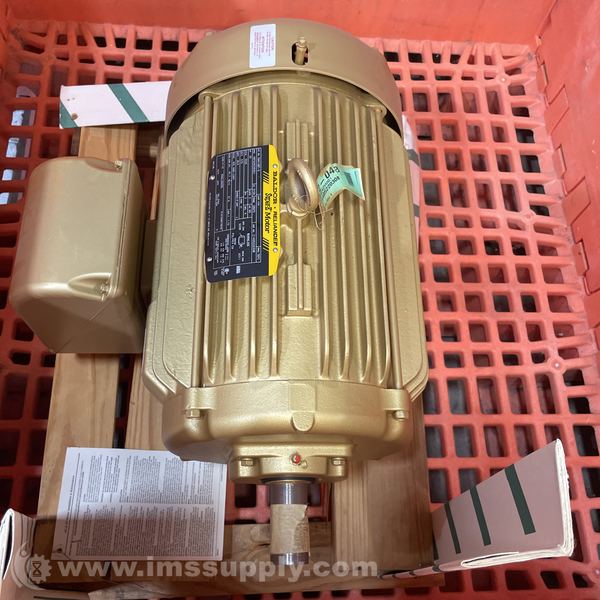

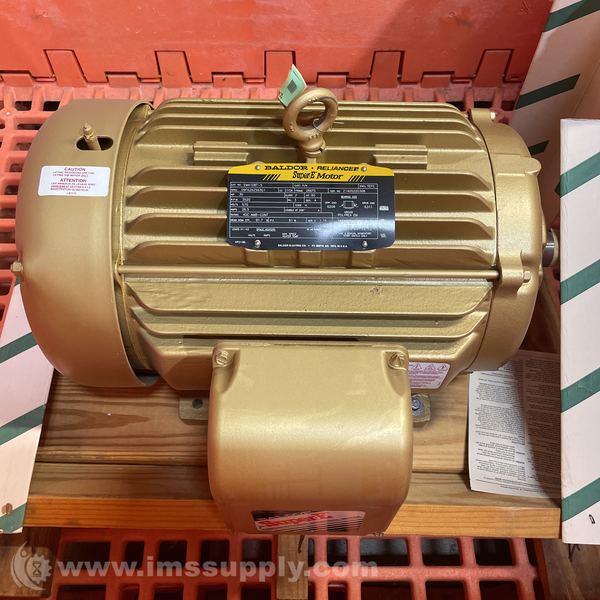

Baldor EM4108T-5 30 HP Motor
30 HP, 3520 RPM, 3-phase, 575V, 286TS frame, TEFC enclosure, 60Hz

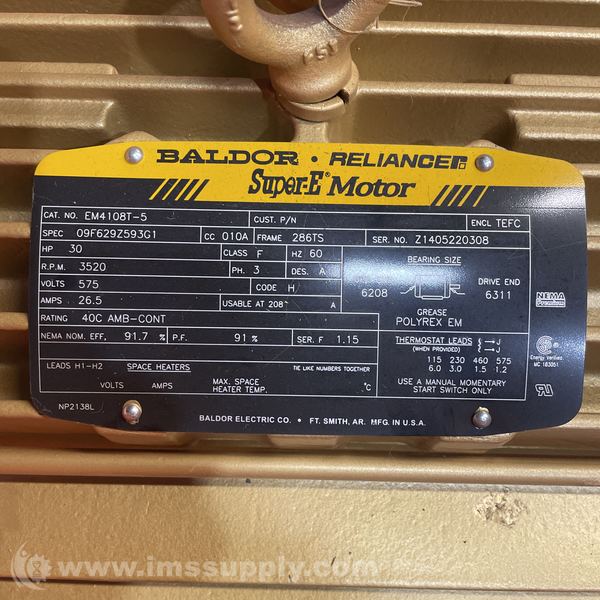

Specifications
- Catalog Number: EM4108T-5
- Enclosure: TEFC
- Frame: 286TS
- Frame Material: Cast Iron
- Frequency: 60 Hz
- Phase: 3
- Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
- Voltage @ Frequency: 575 V @ 60 HZ
- Ambient Temperature: 40 degrees C
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Current @ Voltage: 28 A @ 575 V
- Design Code: A
- Duty Rating: Continuous
- Efficiency @ 100% Load: 91.7 %
- Insulation Class: F
- KVA Code: J
- Mounting Arrangement: F1
- Number of Poles: 2
- Overall Length: 24.77 IN
- Power Factor: 88
- Pulley End Bearing Type: Ball
- Service Factor: 1.15
- Shaft Diameter: 1.625 IN
- Speed: 3520 RPM
- Starting Method: Direct on line
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, October 27, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
