BALDOR IDNM3534 0.33HP 3PH MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: IDNM3534
IMS Product Code: 1791655
Packaging: Sold Individually
Description:

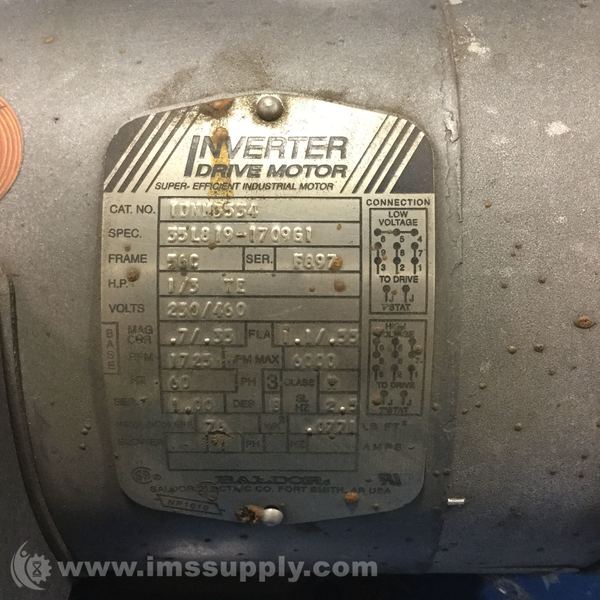

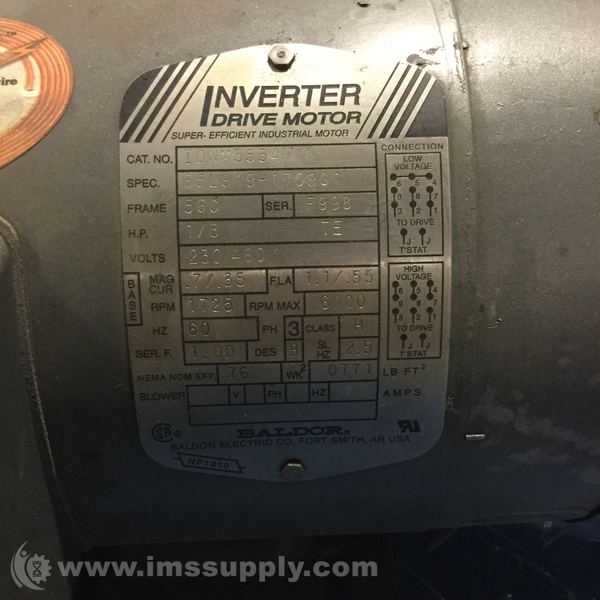

Baldor IDNM3534 0.33HP 3PH Motor
Inverter duty motor, 0.33 HP, 3 phase, 230/460 V, 56C frame, TENV enclosure, 60 Hz, 1780 rpm
Specifications
- Catalog Number: IDNM3534
- Enclosure: TENV
- Frame: 56C
- Frame Material: Steel
- Frequency: 60 Hz
- Motor Type: 3512M
- Mounting Arrangement: F1
- Phase: 3
- Output @ Frequency: 0.33 HP @ 60 Hz
- Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
- Voltage @ Frequency: 460 V @ 60 Hz, 230 V @ 60 Hz
- Duty Rating: Continuous
- Efficiency @ 100% Load: 75.5%
- Insulation Class: H
- Max Speed: 6000 rpm
- Service Factor: 1.00
- Shaft Diameter: 0.625 in
- Speed: 1780 rpm
- NEMA Design Class: B
- Full Load Current: 0.6 A @ 460 V
- Full Load Efficiency: 80%
- Weight: 29 lbs
- Standards Met: UR, CSA
Used (Special):
has a 133UR15 Morse Raider gearbox attached. Plate on gearbox has broken corners.
Availability: 2 In Stock
Ships today if ordered in the next 8 hours and 27 minutes.
Used (Special):

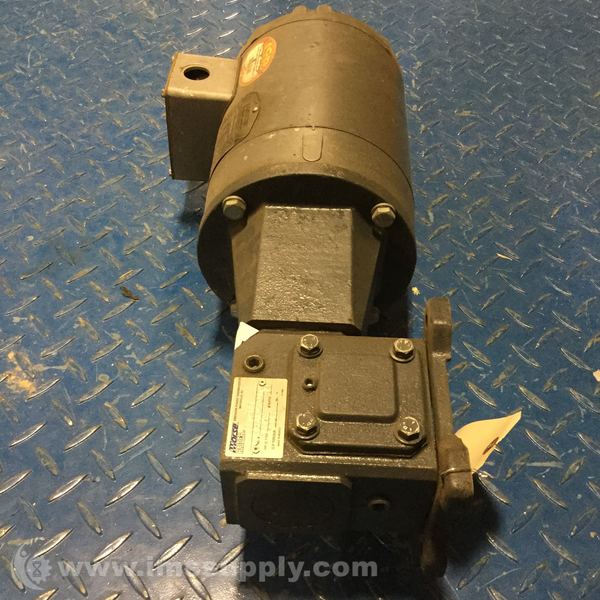

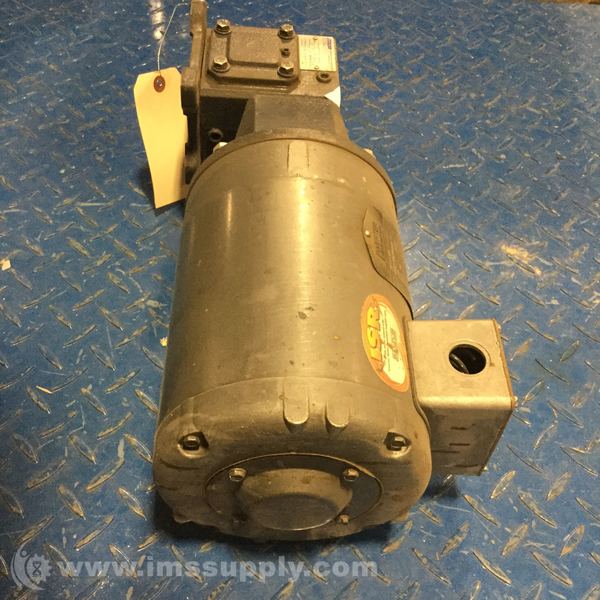

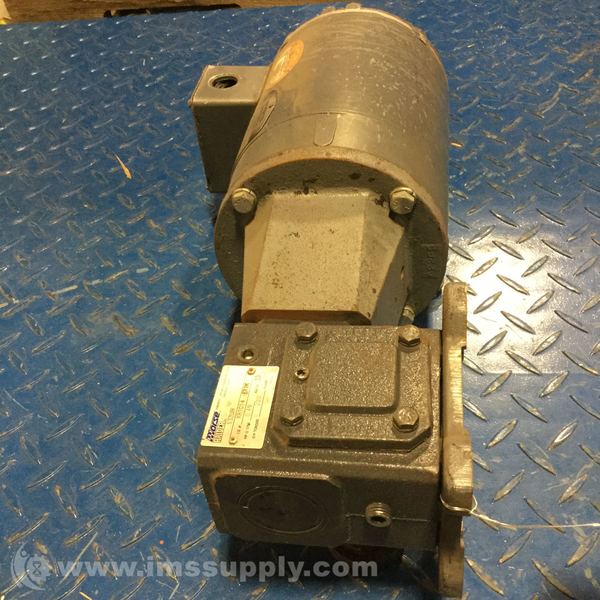

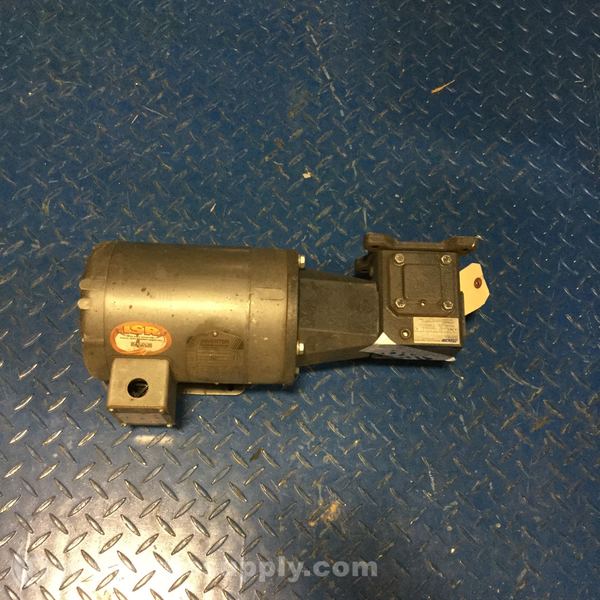

The motor has a 133UR15 Morse Raider gearbox attached to the side.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 27 minutes.
Used (Special):
The motor has a 133UR5 Morse Raider gearbox attached to the side.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 27 minutes.
Used (Special):

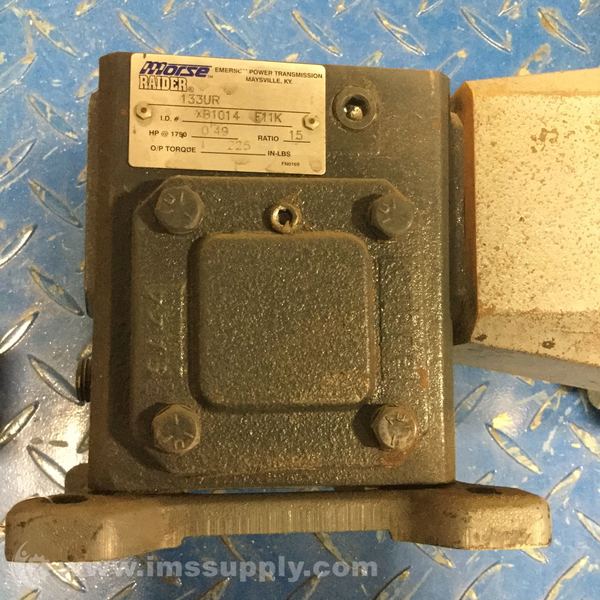

The motor has a Morse Raider 133UR gearbox attached to the side.
