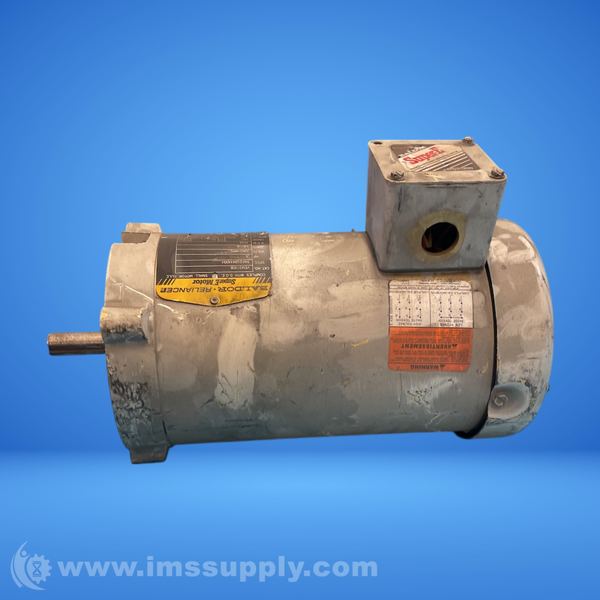

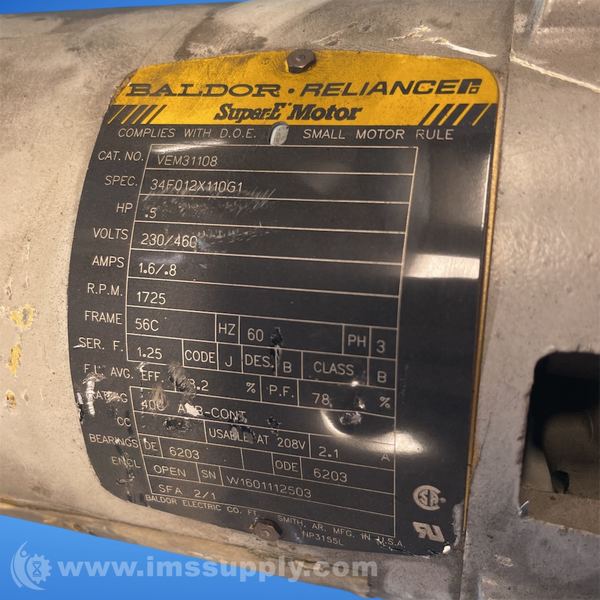

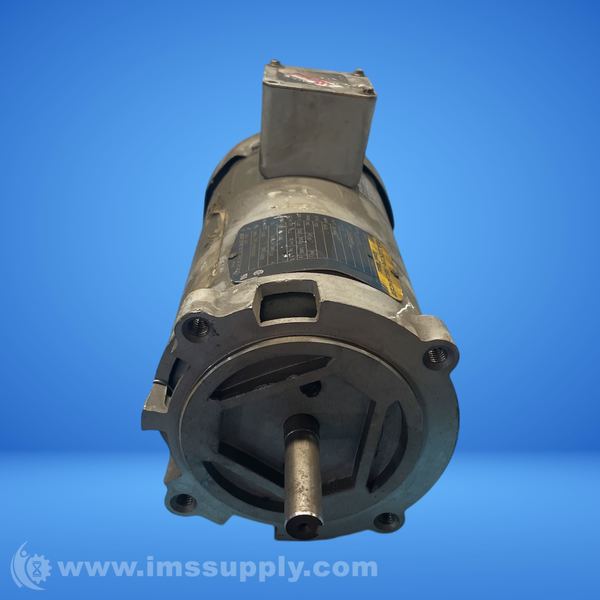

BALDOR VEM31108 .5HP 1725RPM 3PH 60HZ 56C
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VEM31108
IMS Product Code: 2142282
Packaging: Sold Individually
Description:
Baldor VEM31108 .5HP 1725RPM 3PH 60Hz 56C
General purpose AC motor with .5HP output at 1725RPM, 3-phase, 60Hz frequency, 56C frame size, open drip-proof enclosure, and continuous duty rating.
Specifications
- Catalog Number: VEM31108
- Enclosure: ODP
- Frame: 56C
- Frame Material: Steel
- Frequency: 60 Hz
- Motor Type: 3424M
- Mounting Arrangement: F1
- Output @ Frequency: .5 HP @ 60 Hz
- Phase: 3
- Speed: 1725 rpm
- Synchronous Speed @ Frequency: 1800 RPM @ 60 Hz
- Voltage @ Frequency: 208 V @ 60 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
- Current @ Voltage: .8 A @ 460 V, 1.6 A @ 230 V, 1.7 A @ 208 V
- Efficiency @ 100% Load: 78.2%
- Service Factor: 1.25
- Shaft Diameter: 0.625 in
- Power Factor: 78
- Insulation Class: B
- Ambient Temperature: 40 degrees C
- Duty Rating: Continuous
- Starting Method: Direct on line
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 45 minutes.
