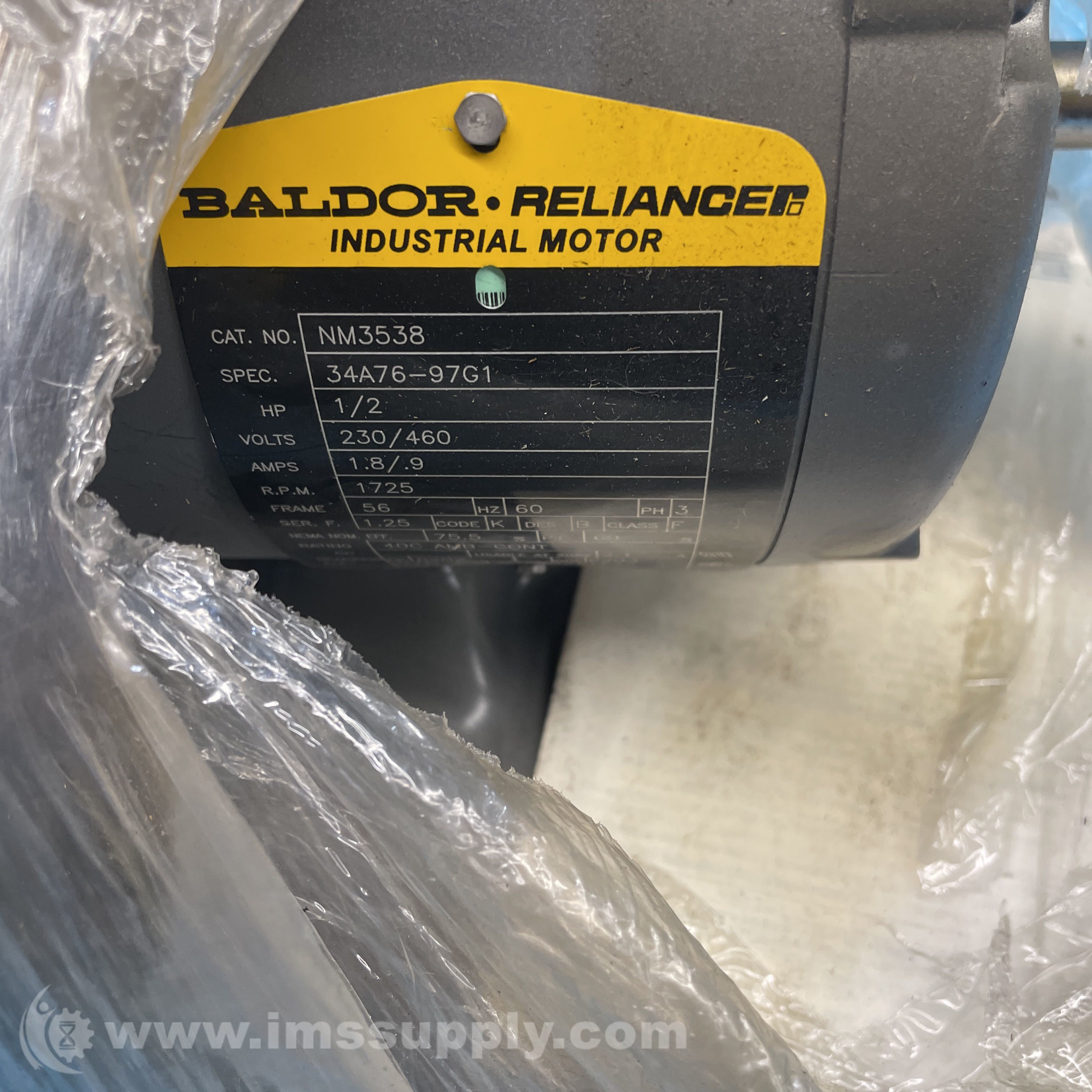

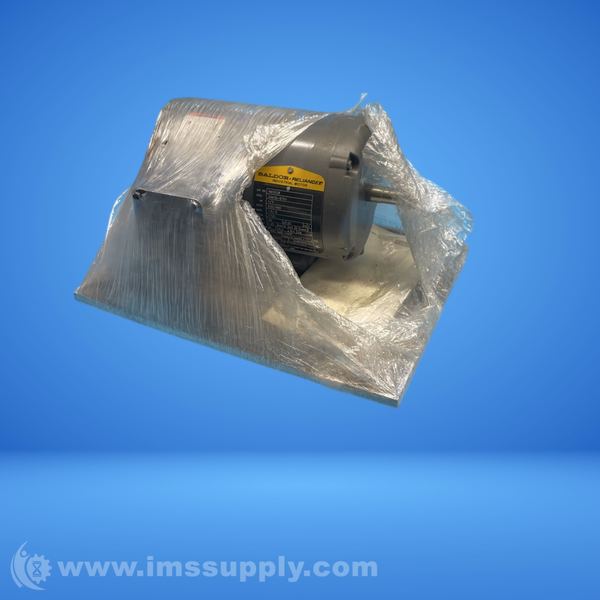

BALDOR NM3538 0.5 HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: NM3538
IMS Product Code: 308816
Packaging: Sold Individually
Description:
Baldor NM3538 0.5 HP Motor
0.5 HP, 1725 RPM three-phase motor with a NEMA 56 frame and Totally Enclosed Non-Ventilated (TENV) enclosure
Specifications
- Catalog Number: NM3538
- Enclosure: TENV
- Frame: 56
- Frame Material: Steel
- Frequency: 60 Hz
- Phase: 3
- Voltage: 230/460 V
- Speed: 1725 rpm
- Service Factor: 1.25
- Shaft Diameter: 0.625 IN
- Mounting Arrangement: F1
- Insulation Class: F
- Motor Type: 3420M
- Power Factor: 69
- Efficiency @ 100% Load: 75.5%
- Overall Length: 10.88 IN
- Weight: 25 LBS
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 12 minutes.
