BALDOR VEM3538 0.5HP TEFC MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VEM3538
IMS Product Code: 2142287
Packaging: Sold Individually
Description:

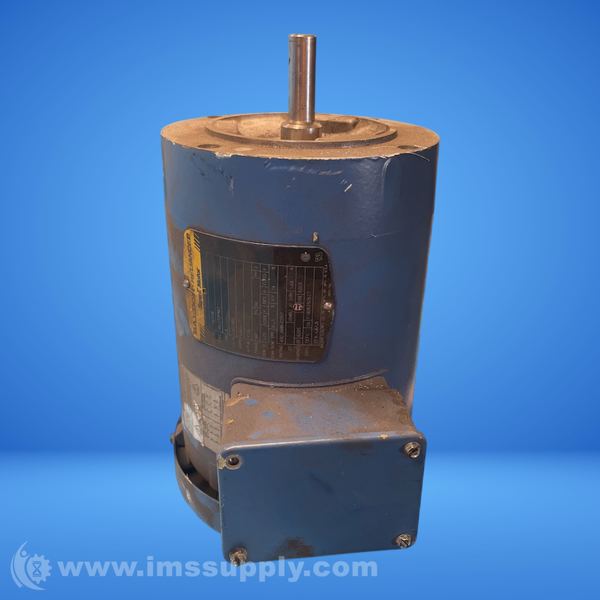

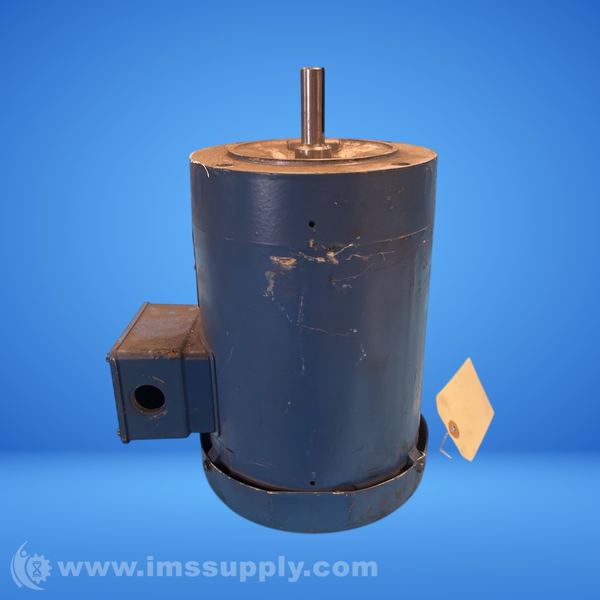

Baldor VEM3538 0.5HP TEFC Motor
0.5HP, 1775RPM, 3PH, 60HZ, 56C Frame, TEFC Enclosure
Specifications
- Catalog Number: VEM3538
- Enclosure: TEFC
- Frame: 56C
- Frame Material: Steel
- Frequency: 60 Hz
- Phase: 3
- Voltage @ Frequency: 230 V @ 60 Hz, 460 V @ 60 Hz
- Current @ Voltage: 2.02 A @ 230 V, 1.01 A @ 460 V
- Speed: 1775 rpm
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Output @ Frequency: 0.5 HP @ 60 HZ
- Motor Type: 3514M
- Mounting Arrangement: F1
- Number of Poles: 4
- Duty Rating: Continuous
- Efficiency @ 100% Load: 81.5%
- Service Factor: 1.25
- Insulation Class: F
- Shaft Diameter: 0.625 IN
- Overall Length: 12.23 IN
- Weight: 31 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 20 minutes.
