BALDOR VEM3615T 5 HP 3 PHASE MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VEM3615T
IMS Product Code: 1963317
Packaging: Sold Individually
Description:

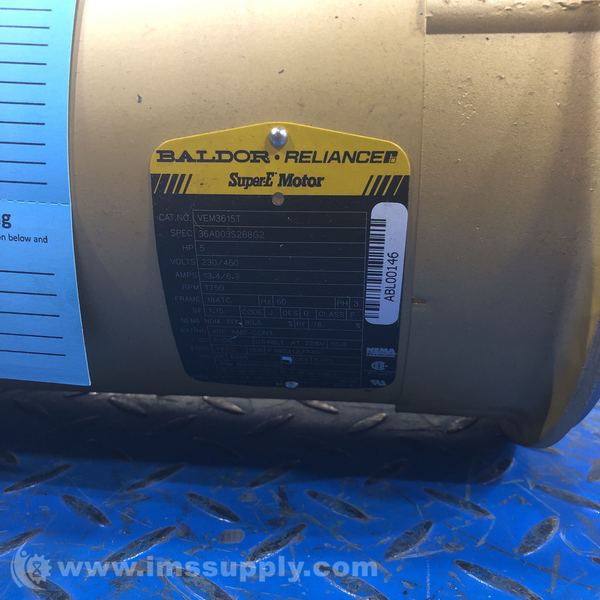

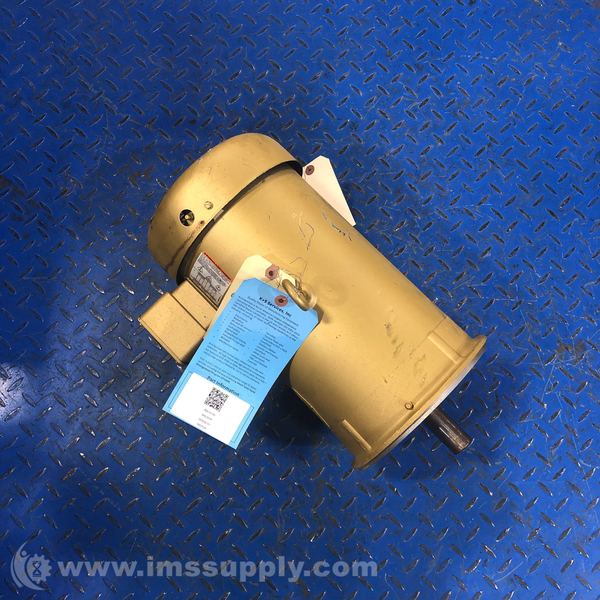

Baldor VEM3615T 5 HP 3 Phase Motor
Three-phase totally enclosed fan-cooled motor with 5 HP, 1755 RPM, 230/460 V, 184TC frame, continuous duty, C-face mounting, and steel construction.
Specifications
- Motor Phase: 3 ph
- Motor Horsepower: 5 hp
- Synchronous Rpm: 1800 rpm
- Motor Supply Voltage: 230/460 V
- Frame Size: 184TC
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Frequency Rating: 60 Hz
- Base RPM: 1755 rpm
- Duty Condition Type: Continuous Duty

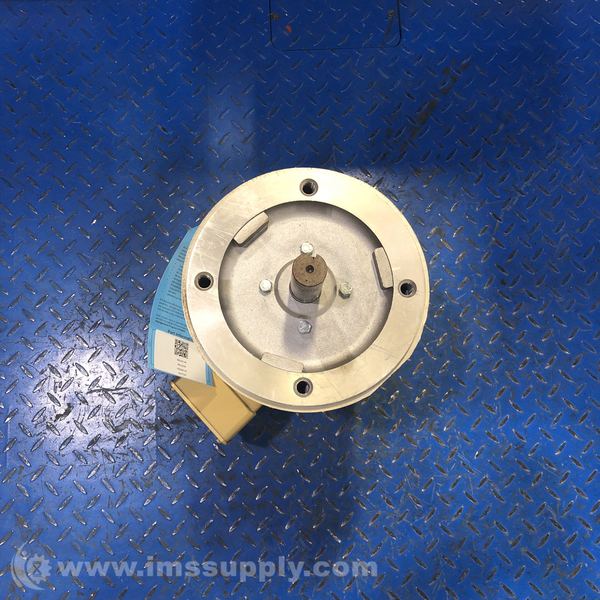

- Mounting Type: C-Face / Footless
- Full Load Current: 6.70 A
- Full Load Efficiency: 89.50 %
- Amps @ Voltage: 13.4 A @ 230 V; 13.9 A @ 208 V; 6.7 A @ 460 V
- Volts @ Frequency: 208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz
- Shaft Diameter: 1.1250 in
- Overall Length C Dimension: 18.05 in
- Service Factor: 1.15
- Frame Material: Steel
- Insulation Class: F
- IP Rating: 44
- Standards Met: CSA EEV, UR, CSA
- Weight: 89 lbs
- Phase: Three-Phase
- NEMA Design: B
- Application: General Purpose
- Inverter Ready: Inverter Ready
For Parts or Repair:
A non-functional product sold as-is for parts or repair.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 39 minutes.
