BALDOR VEM3616T 7.5HP THREE PHASE MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VEM3616T
IMS Product Code: 2140272
Packaging: Sold Individually
Description:

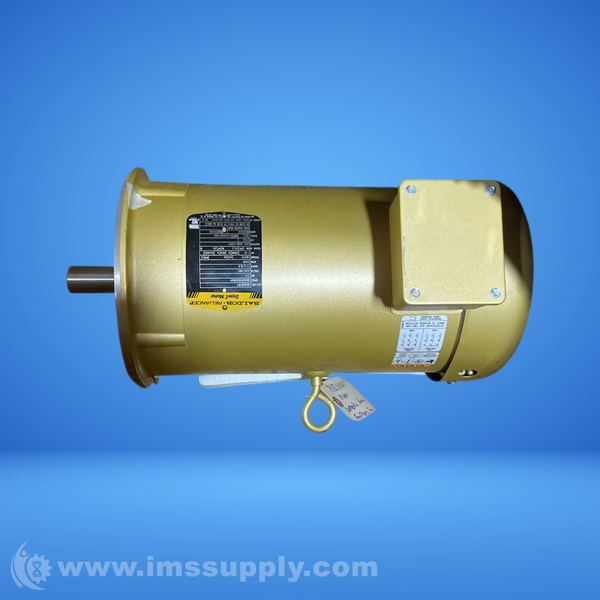

Baldor VEM3616T 7.5HP Three Phase Motor
7.5HP, 3495RPM, 3PH, 60HZ, 184TC, 3646M, TEFC motor with steel frame and reversible shaft.
Specifications
- catalog number: VEM3616T
- enclosure: TEFC
- frame: 184TC
- frame material: Steel
- frequency: 60 Hz
- motor letter type: Three Phase
- output @ frequency: 7.5 HP @ 60 Hz
- phase: 3
- synchronous speed @ frequency: 3600 RPM @ 60 Hz
- voltage @ frequency: 460 V @ 60 Hz, 230 V @ 60 Hz
- ambient temperature: 40 degrees C
- duty rating: CONT
- efficiency @ 100% load: 90.2%
- insulation class: F
- inverter code: Inverter Ready
- motor type: 3646M
- mounting arrangement: F1
- number of poles: 2
- overall length: 18.04 in
- power factor: 89
- service factor: 1.15
- shaft diameter: 1.125 in
- shaft rotation: Reversible
- speed: 3495 RPM
- speed code: Single Speed
