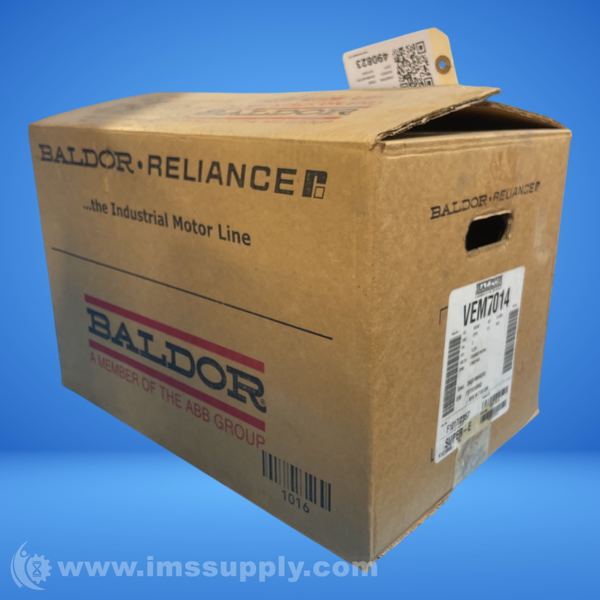

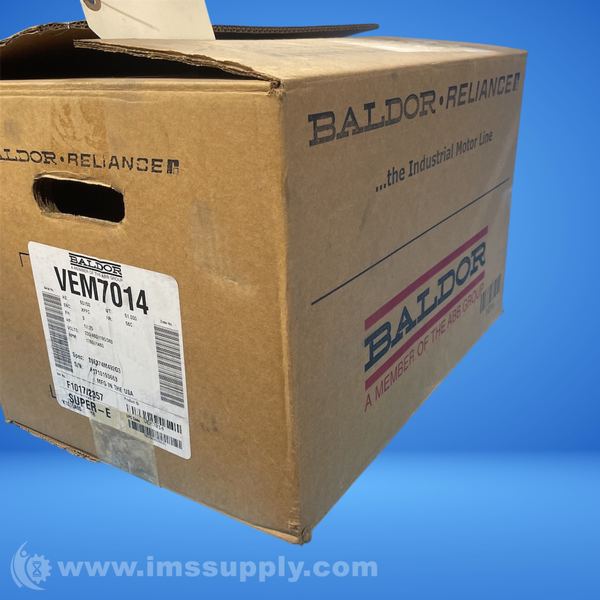

BALDOR VEM7014 HAZARDOUS LOCATION MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VEM7014
IMS Product Code: 2143099
Packaging: Sold Individually
Description:
Baldor VEM7014 Hazardous Location Motor

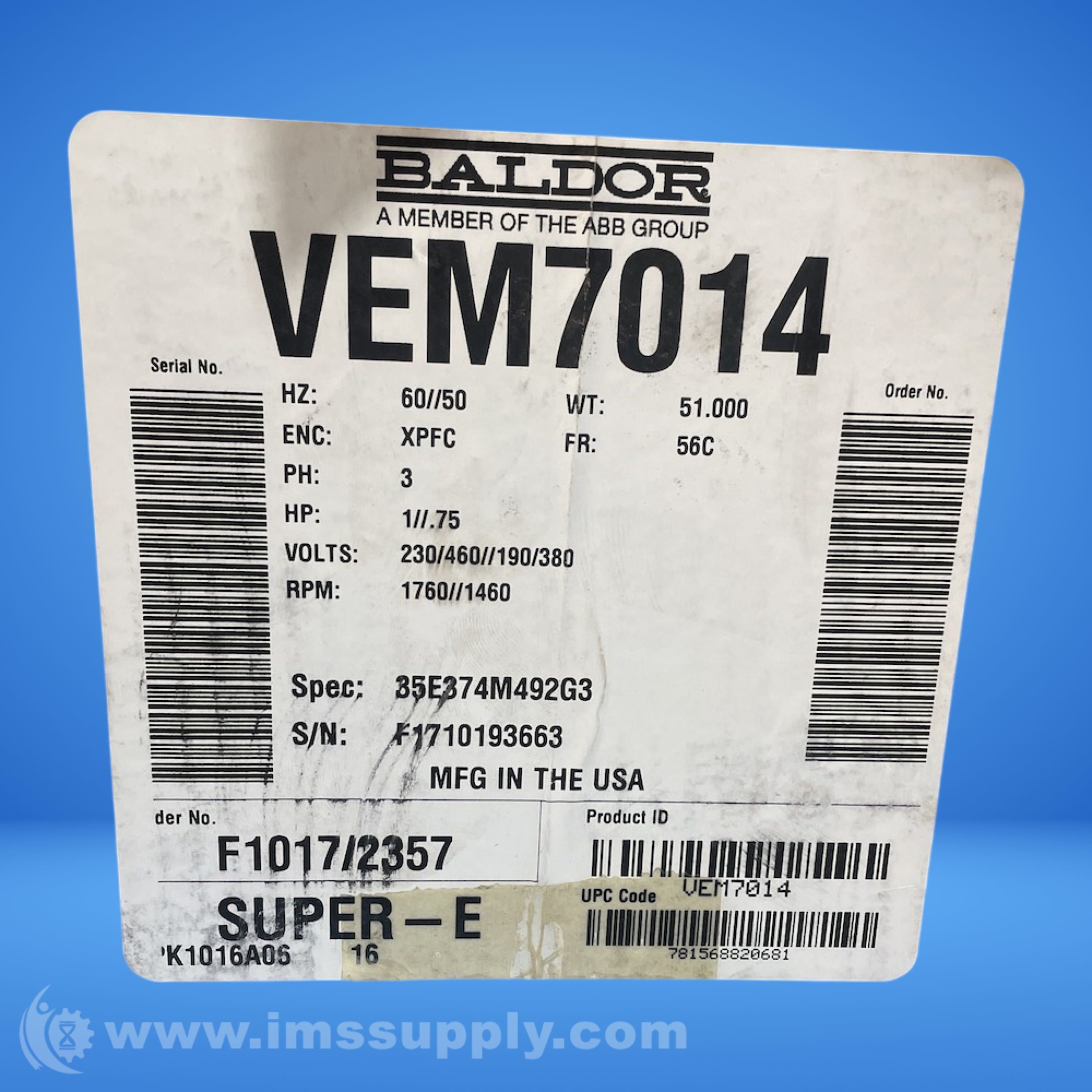

Three Phase Induction Motor, 0.75/1 HP, 1760/1460 RPM, 230/460 Volts, 56C Frame, Steel, TEFC Enclosure, NEMA Design B
Specifications
- AC Frequency Rating: 50 Hz, 60 Hz
- AC Motor Type: Induction/Asynchronous
- AC Phase: Three Phase
- Agency Approvals: UL, CSA EEV
- Ambient Temperature: 40 degrees C
- Base RPM: 1770
- Bearing Grease Type: Polyrex EM (-20F +300F)
- Brand: Baldor
- Catalog Number: VEM7014
- Condition: New
- Current @ Voltage: 3.260 A @ 230.0 V, 3.200 A @ 208.0 V, 3.080 A @ 190.0 V, 1.630 A @ 460.0 V, 1.540 A @ 380.0 V
- Current Type: AC
- Design Code: B
- Duty Rating: CONT
- Efficiency @ 100% Load: 85.5 %
- Electrically Isolated Bearing: Not Electrically Isolated
- Enclosure: TEFC
- Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
- Feedback Device: NO FEEDBACK
- Frame: 56C
- Frame Material: Steel
- Frequency: 50.00 Hz, 60.00 Hz
- Full Load Amps: 1.6A
- Haz Area Class and Group: CLI GP D; CLII GP F,G
- Haz Area Division: Division I
- Haz Area Temp Code: T3C
- Heater Indicator: No Heater
- High Voltage Full Load Amps: 1.5 a
- Inverter/Vector Duty Rating: Inverter Duty
- Insulation Class: F
- Inverter Code: Not Inverter
- KVA Code: N
- Lifting Lugs: No Lifting Lugs
- Locked Bearing Indicator: Locked Bearing
- Manufacturer: Baldor
- Model: Baldor VEM3546
- Motor Lead Exit: Ko Box
- Motor Lead Quantity/Wire Size: 9 @ 18 AWG
- Motor Lead Termination: Flying Leads
- Motor Letter Type: Three Phase
- Motor Type: 3520M
- Mounting Arrangement: F1
- Mounting Type: Face-Mounted
- NEMA Design Letter: Design B (General Purpose)
- NEMA Frame Suffix: C
- Nominal Rated Input Voltage: 460 V
- Number of Poles: 4
- Output @ Frequency: .750 HP @ 50 HZ, 1.000 HP @ 60 HZ
- Overall Length: 14.30 IN
- Phase: 3
- Power Factor: 67
- Product Family: Hazardous Location Motor
- Pulley End Bearing Type: Ball
- Pulley Face Code: C-Face
- Rated Load (HP): 1
- Reversible/Non-Reversible: Reversible
- Rodent Screen: None
- RoHS Status: ROHS NON-COMPLIANT
- Shaft Diameter: 0.625 IN
- Shaft Extension Location: Pulley End
- Shaft Ground Indicator: No Shaft Grounding
- Shaft Rotation: Reversible
- Shaft Slinger Indicator: No Slinger
- Shaft Type: Keyed
- Speed: 1475 rpm, 1760 rpm
- Speed Code: Single Speed
- Starting Method: Direct on line
- Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
- Thermal Device - Bearing: None
- Thermal Device - Winding: Normally Closed Thermostat
- Type: Motor
- UPC: 0781568308608
- Vibration Sensor Indicator: No Vibration Sensor
- Voltage @ Frequency: 380.0 V @ 50 HZ, 230.0 V @ 60 HZ, 190.0 V @ 50 HZ, 460.0 V @ 60 HZ
- Weight: 51.00 LBS
- Winding Thermal 1: None
- Winding Thermal 2: None

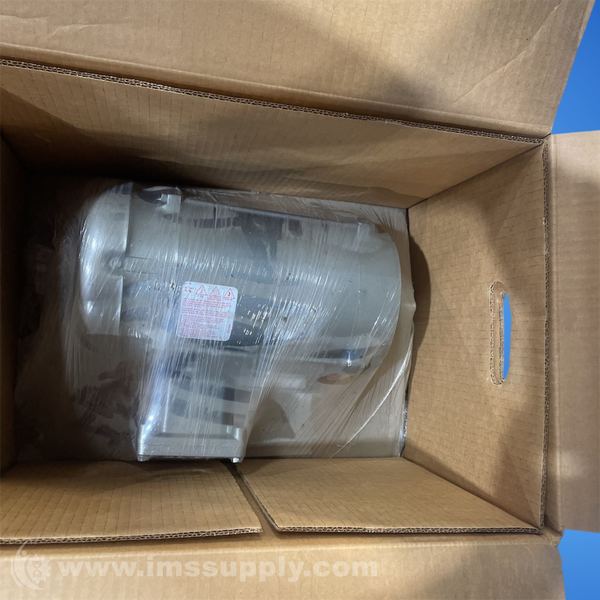

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
