BALDOR VM3610 3HP MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VM3610
IMS Product Code: 1751048
Packaging: Sold Individually
Description:

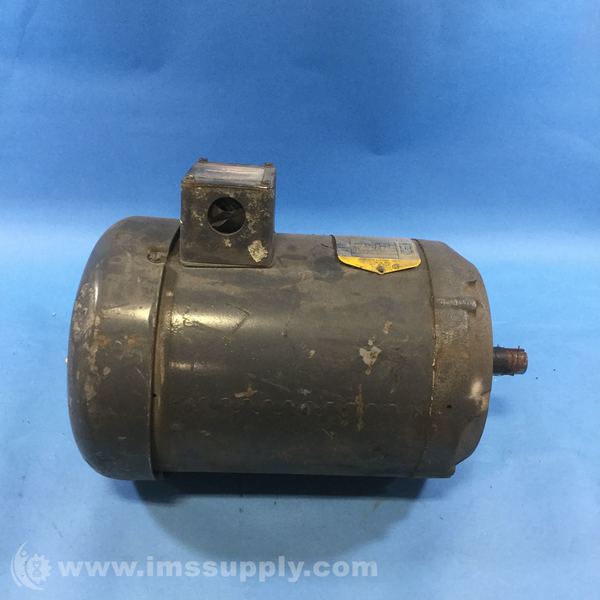

Baldor VM3610 3HP Motor
3HP, 3450RPM, 3PH, 60HZ, 184C Frame, TEFC Enclosure
Specifications
- Catalog Number: VM3610
- Enclosure: TEFC
- Frame: 184C
- Frame Material: Steel
- Frequency: 60 Hz
- Phase: 3
- Synchronous Speed @ Frequency: 3600 RPM @ 60 HZ
- Voltage @ Frequency: 230.0 V @ 60 HZ, 460.0 V @ 60 HZ
- Current @ Voltage: 3.800 A @ 460.0 V, 7.600 A @ 230.0 V, 8.000 A @ 208.0 V
- Motor Type: 3528M
- Mounting Arrangement: F1
- Number of Poles: 2
- Overall Length: 13.31 IN
- Power Factor: 89
- Shaft Diameter: 0.875 IN
- Speed: 3450 rpm
- Service Factor: 1.15
- Insulation Class: F
- Ambient Temperature: 40 degrees C
- Efficiency @ 100% Load: 85.5 %
