BALDOR VM3616T 7.5HP 3450RPM 3PH MOTOR
Quick Overview
Manufactured By: BALDOR
Manufacturer Part Number: VM3616T
IMS Product Code: 2044057
Packaging: Sold Individually
Description:

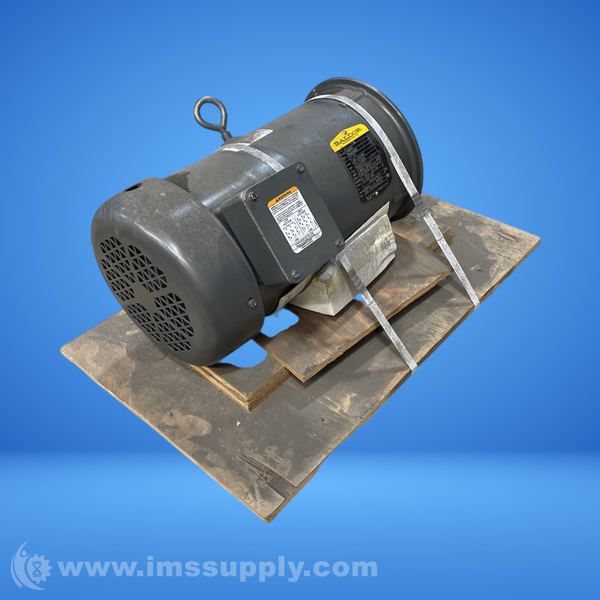

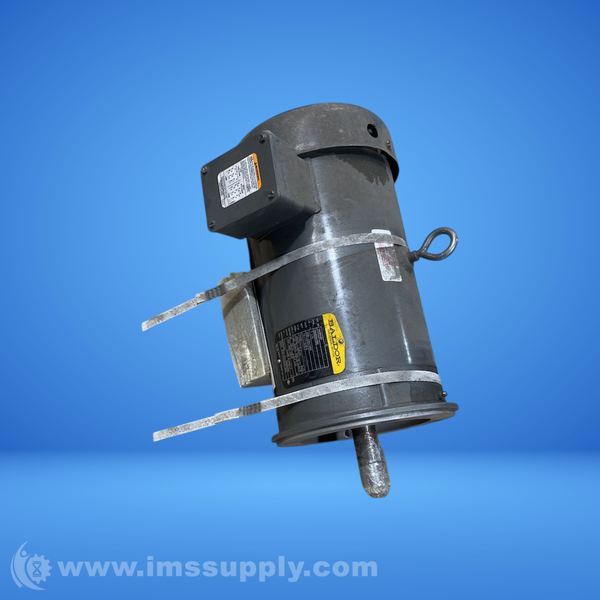

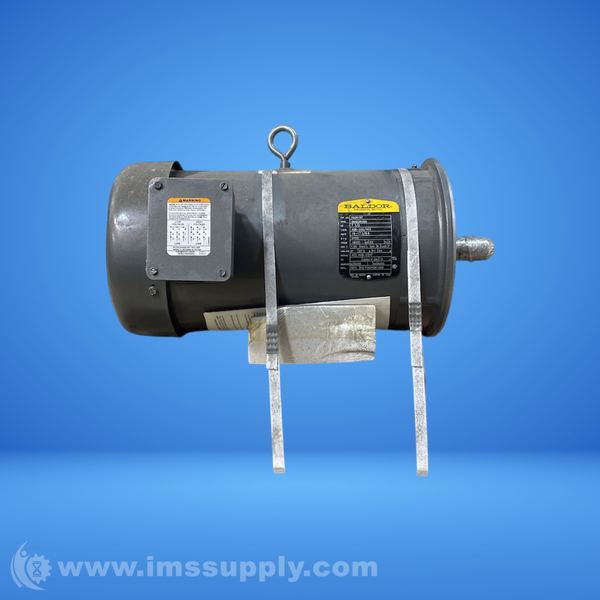

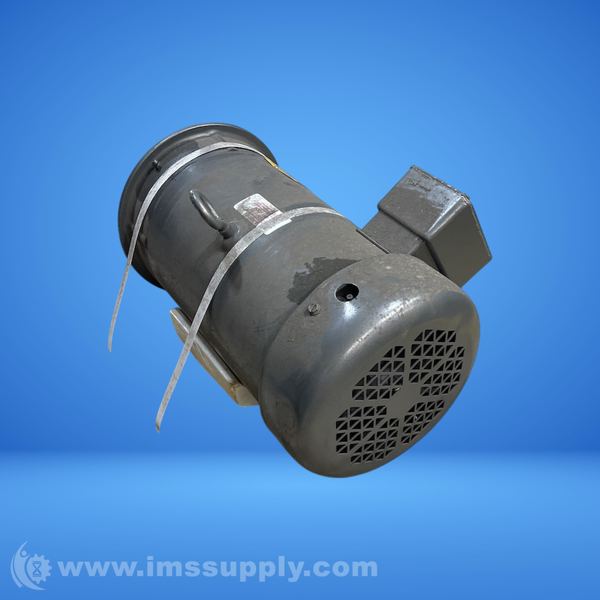

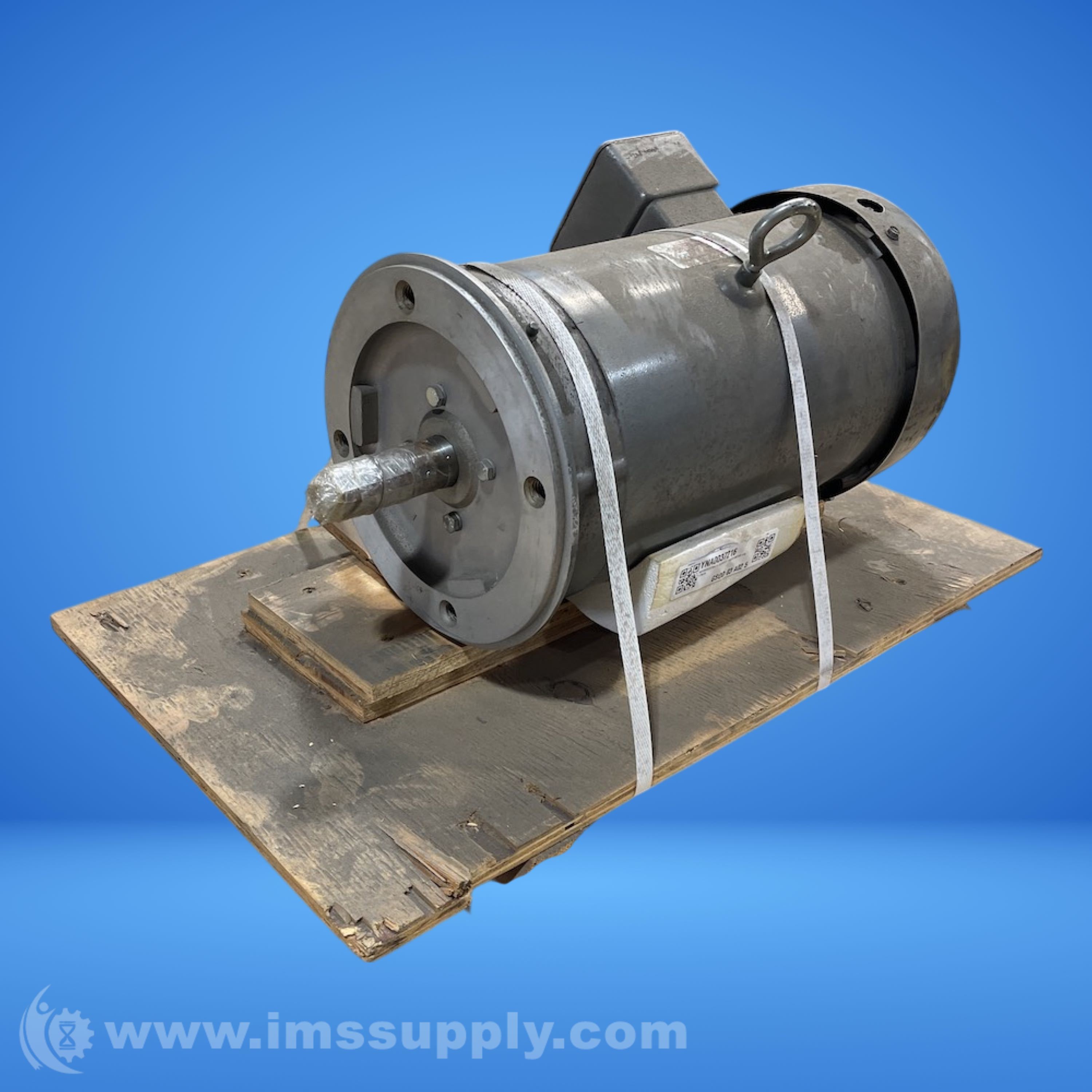

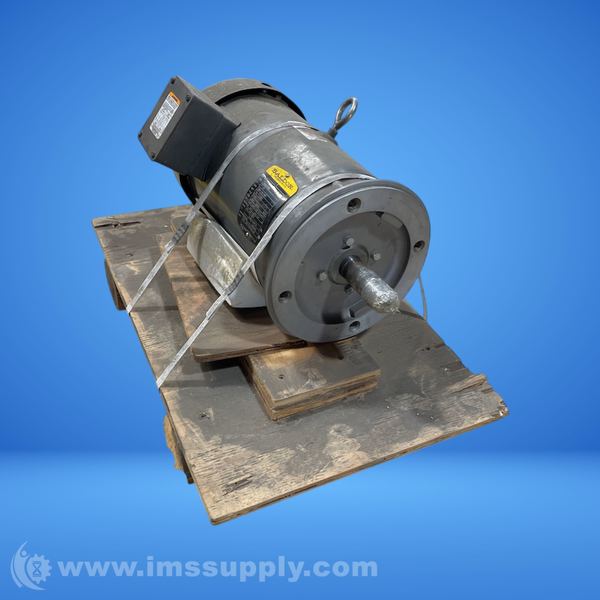

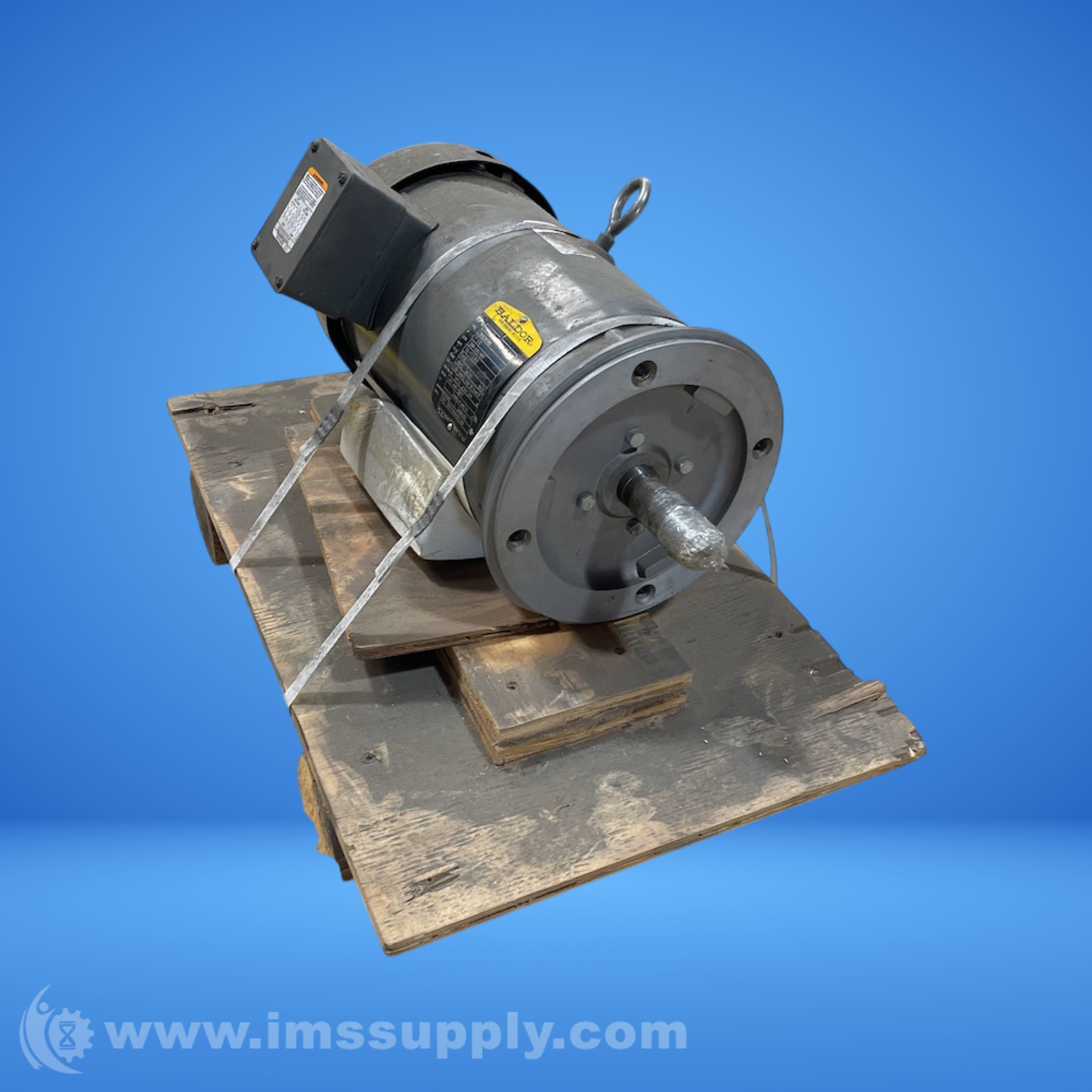

Baldor VM3616T 7.5HP 3450RPM 3PH Motor
Three-phase AC motor with 7.5HP output at 3450RPM, TEFC enclosure, 184TC frame, steel construction.
Specifications

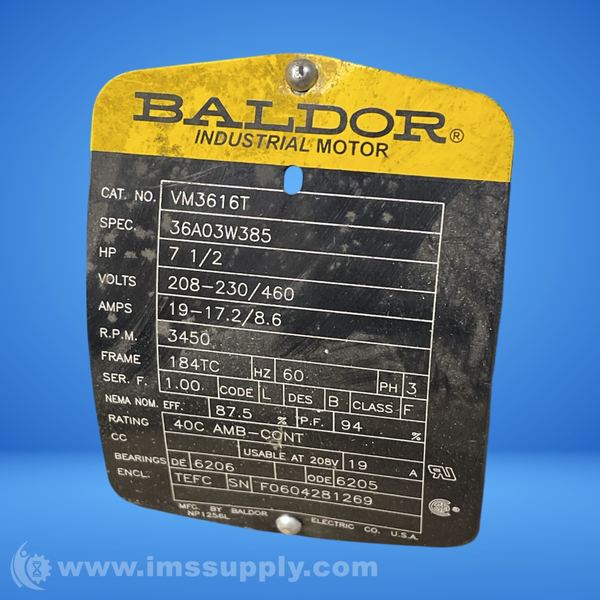

- Catalog Number: VM3616T
- Enclosure: TEFC
- Frame: 184TC
- Frame Material: Steel
- Frequency: 60 Hz
- Phase: 3
- Output @ Frequency: 7.5 HP @ 60 Hz
- Synchronous Speed @ Frequency: 3600 RPM @ 60 Hz
- Voltage @ Frequency: 208 V @ 60 Hz, 230 V @ 60 Hz, 460 V @ 60 Hz
- Current @ Voltage: 17.4 A @ 230 V, 18.5 A @ 208 V, 8.7 A @ 460 V
- Duty Rating: Continuous
- Efficiency @ 100% Load: 88.5%
- Insulation Class: F
- Service Factor: 1.15
- Speed: 3450 RPM
- Mounting Arrangement: F1
- Shaft Diameter: 1.125 IN
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
