BANNER EM-FD-7G2 SAFETY EXTENSION MODULE
Quick Overview
Manufactured By: BANNER ENGINEERING CORP.
Manufacturer Part Number: EM-FD-7G2
IMS Product Code: 2161219
Packaging: Sold Individually
Description:

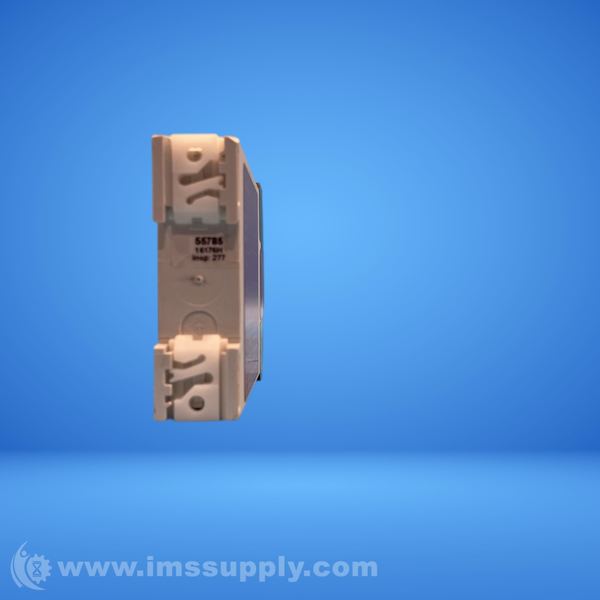

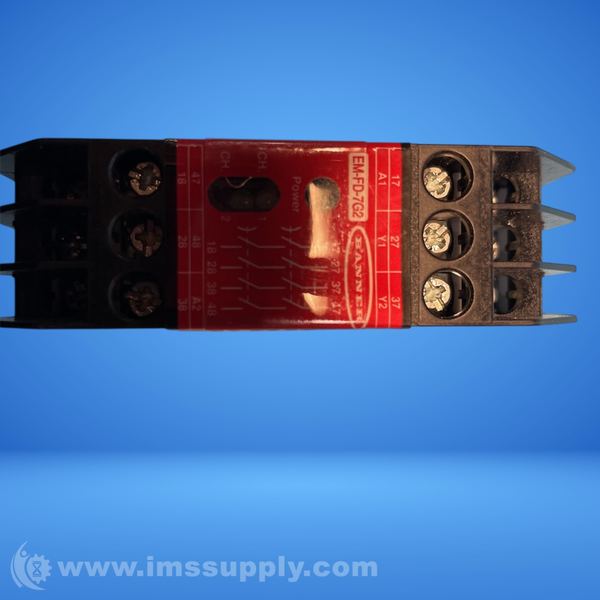

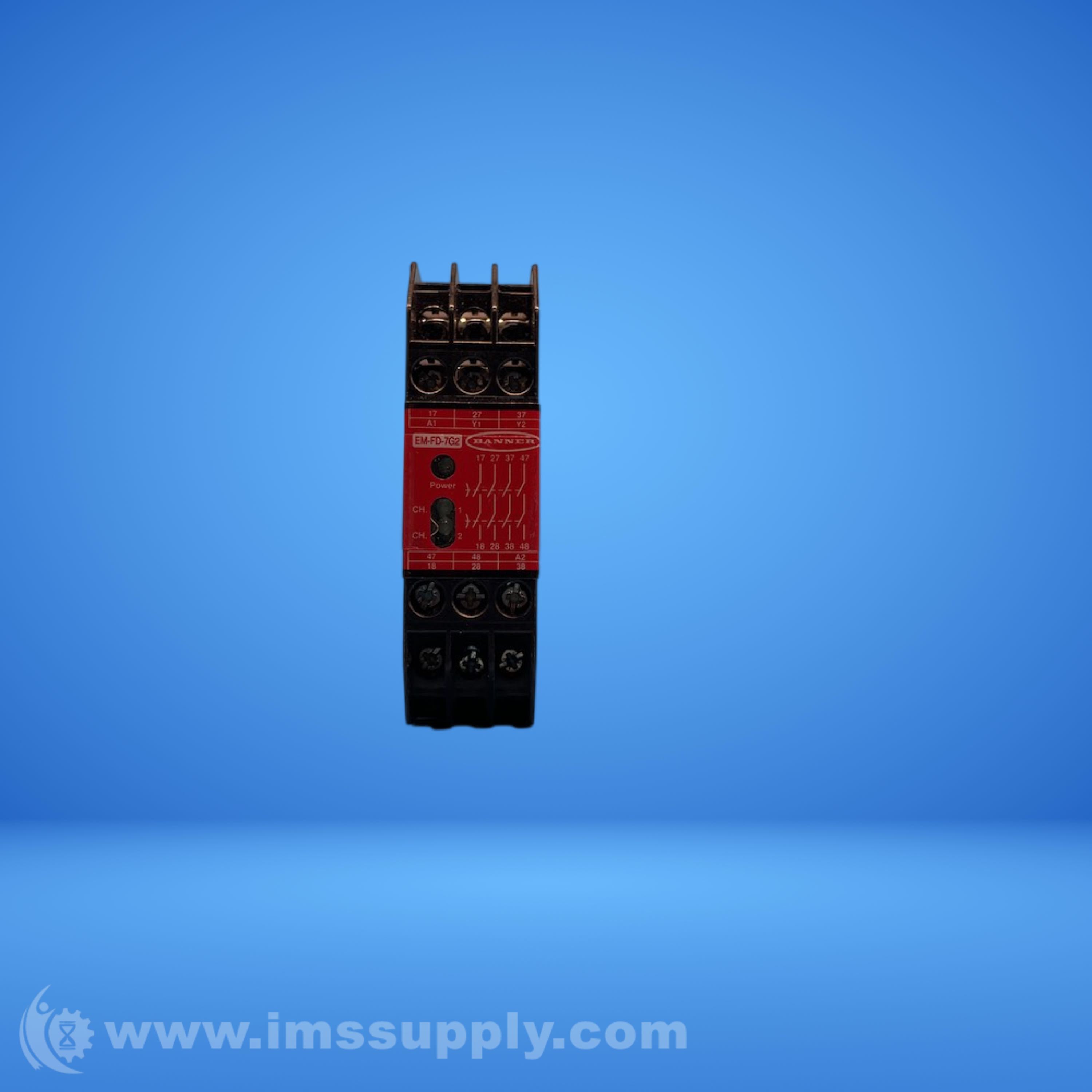

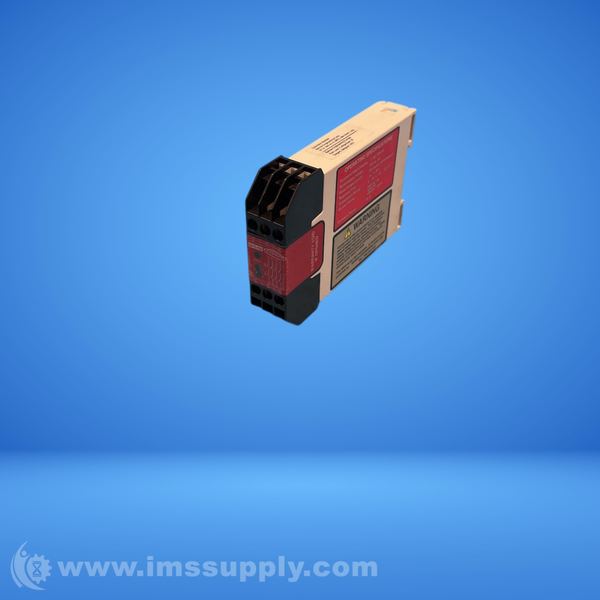

Banner EM-FD-7G2 Safety Extension Module
Safety Extension Module with 1 safety input and 4 safety outputs
Specifications
- Power: AC/DC Universal
- IP Rating: IP20
- Supply Voltage: 24 V ac/dc
- Device Type: Safety Relay
- Dimension (H x W x D in mm): 82 x 22.5 x 118
- Relative Humidity: 90% @ 50 degrees C
- Max Operating Temperature: 50 degrees C
- Number of Safe Inputs: 1
- Input Configuration: 1 NC
- Independently Controlled Safe Outputs: 1
- Output Configuration: 4 NO
- Safe Output Rating: Relay - 6 A
- Mechanical Life: 10 million operations
- Power Consumption: 0.1 A
- Recovery Time: 30 ms
- Response Time: 35 ms typical
- Terminal Type: Screw
- Electrical Life: 100,000 cycles @ 1500 VA
- Safety Input - Single Channel: 40-100 mA @ 13-27 V ac/dc
- Weight: 0.20 kgs
- Voltage: 24 V AC/DC
- Current: 6 A
- Time Delay: 0.5 sec
- Width: 22.5 mm
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
